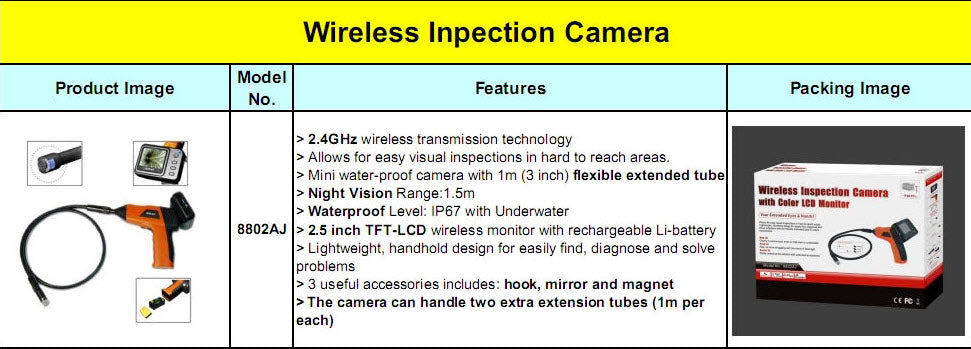

Feature:

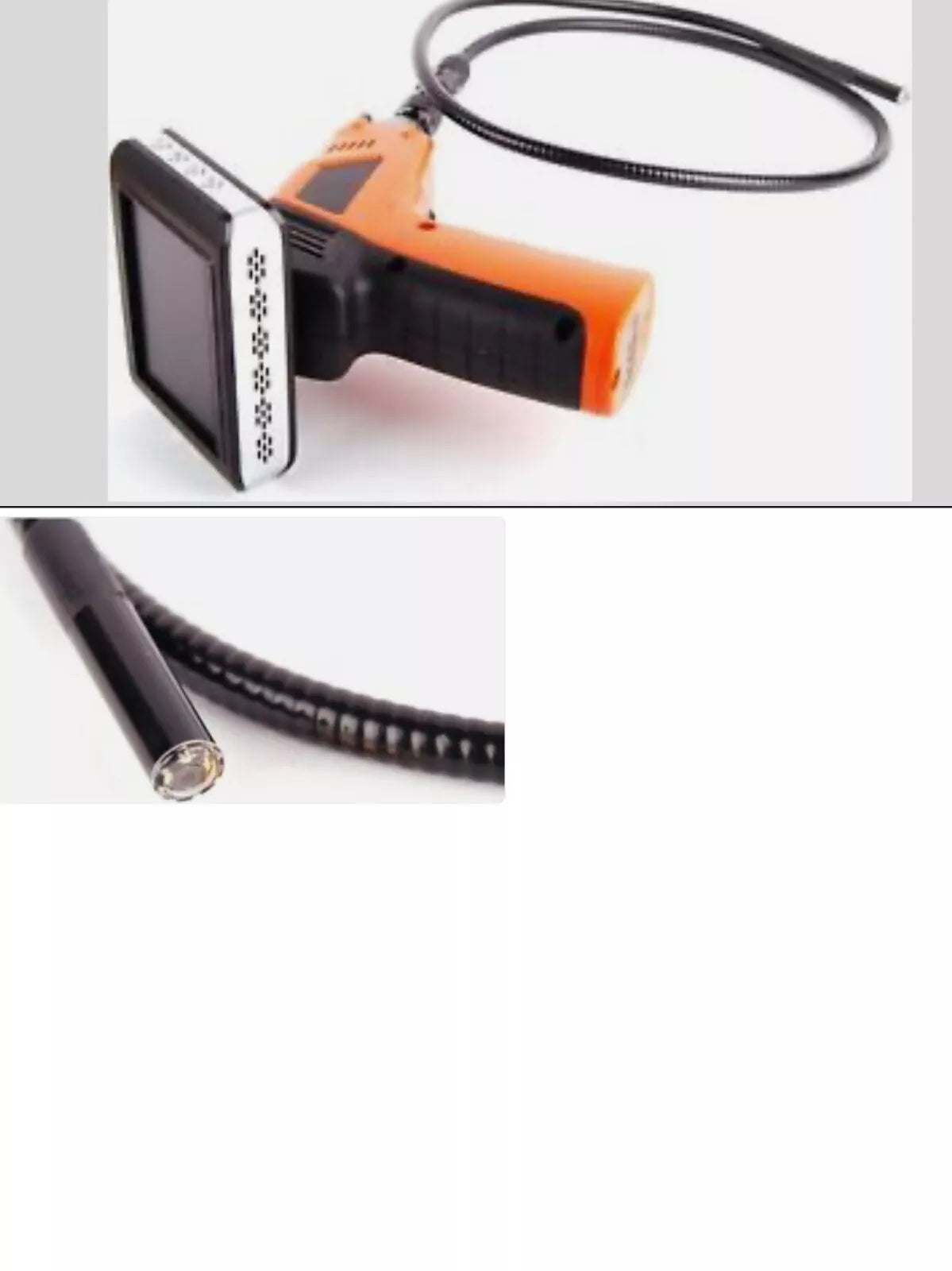

- 2.4 GHz wireless inspection camera
- 2. Allows for easy visual inspections in hard to reach areas.

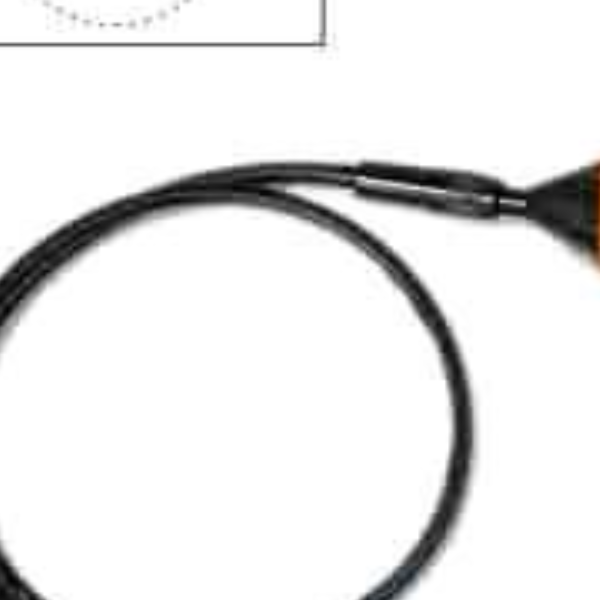

- 3. Mini water-proof camera with 1m (3 inch) flexible extended tube
- 4. Night Vision Range:1.5m
- . Waterproof Level: IP67 with Underwater
- 6. 2.5" TFT-LCD wireless monitor with rechargeable Li-battery
- 7. Lightweight, handhold design for easily find, diagnose and solve problems
- 8. 3 useful accessories includes: hook, mirror and magnet Camera specifications: Image Sensor: CMOS Total Pixels: 704*576 (PAL); 712*486(NTSC) Horizontal View Angle: 50 degree Transmission Frequency: 2468MHz Minimum Illumination: 0 Lux Modulation Type: FM Bandwidth: 25MHz Power Supply: 4 x AA Dimensions (W x D x H): 186 x 145 x 41(mm) (Exclude Flexible Tube) Weight(about): 530g Monitor parameters: LCD Screen Type: 2.36" TFT-LCD Effective Pixels: 480 x 240 Video System: PAL/NTSC Transmission Frequency: 2468MHz Consumption Current (Max): 450mA Video Output Level: 0.9-1.3VP-P 75ohm Dimensions (W x D x H): 100 x 70x 30(mm) Weight(About): 140g Operating Temperature: -10 to +50 degree/+14 F to +122 F Operating Humidity (Max.): 15 to 85%RH
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
