Tesa Data-Pack, TWIN-CAL digital Caliper, 150 mm (Round Depth Rod with thumb roller) + TLC-BLE Bluetooth® emitter 00511019
With the free data acquisition software
DATA-VIEWER, you can automatically fill in your
measurement reports.
TESA instrument drivers included. Software configuration required: Windows 7 /
8.1 / 10 processor, 32 & 64 bits. Minimum hardware configuration required: Intel i5
or equivalent, 4 GB of RAM, 100 MB of hard drive.
- Data-Pack, TWIN-CAL, 150 mm + TLC-BL
- Range: 0-150mm (0-6″)
- Resolution: 0.01mm (0.0005″)
- Accuracy: ± 0.02mm (0-100mm)
- Accuracy: ± 0.03mm (100mm+)
- Jaw length: 40mm
- IP40 Protection: Minimal protection from water, coolant, oil & dust
- TLC Data output
- Thumb roller
- Round depth rod
- mm-inch conversion
- Zero setting at any point
- Locking screw
- Battery: CR2032
- Battery life: Approx. 5 years

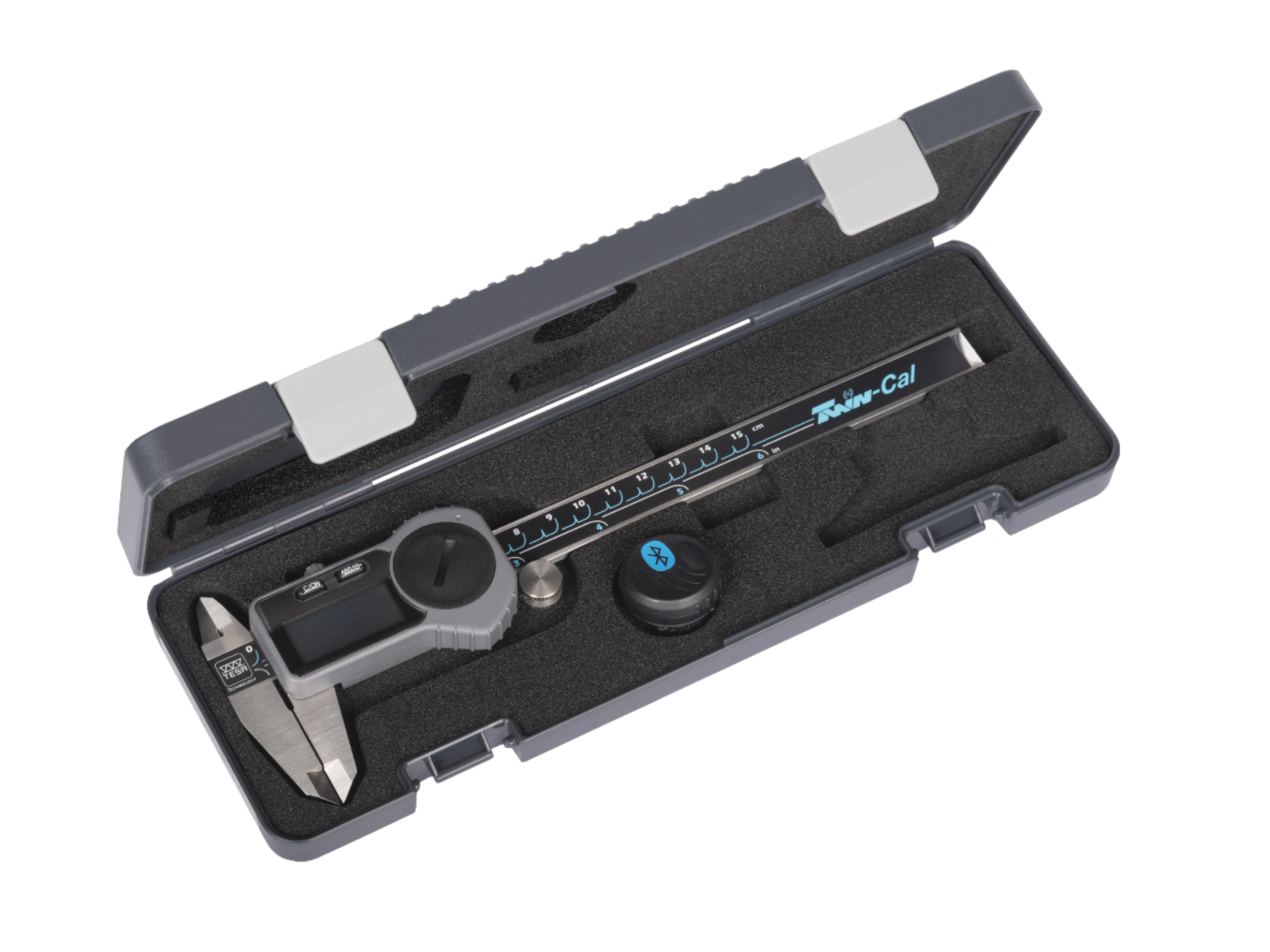

Set contains

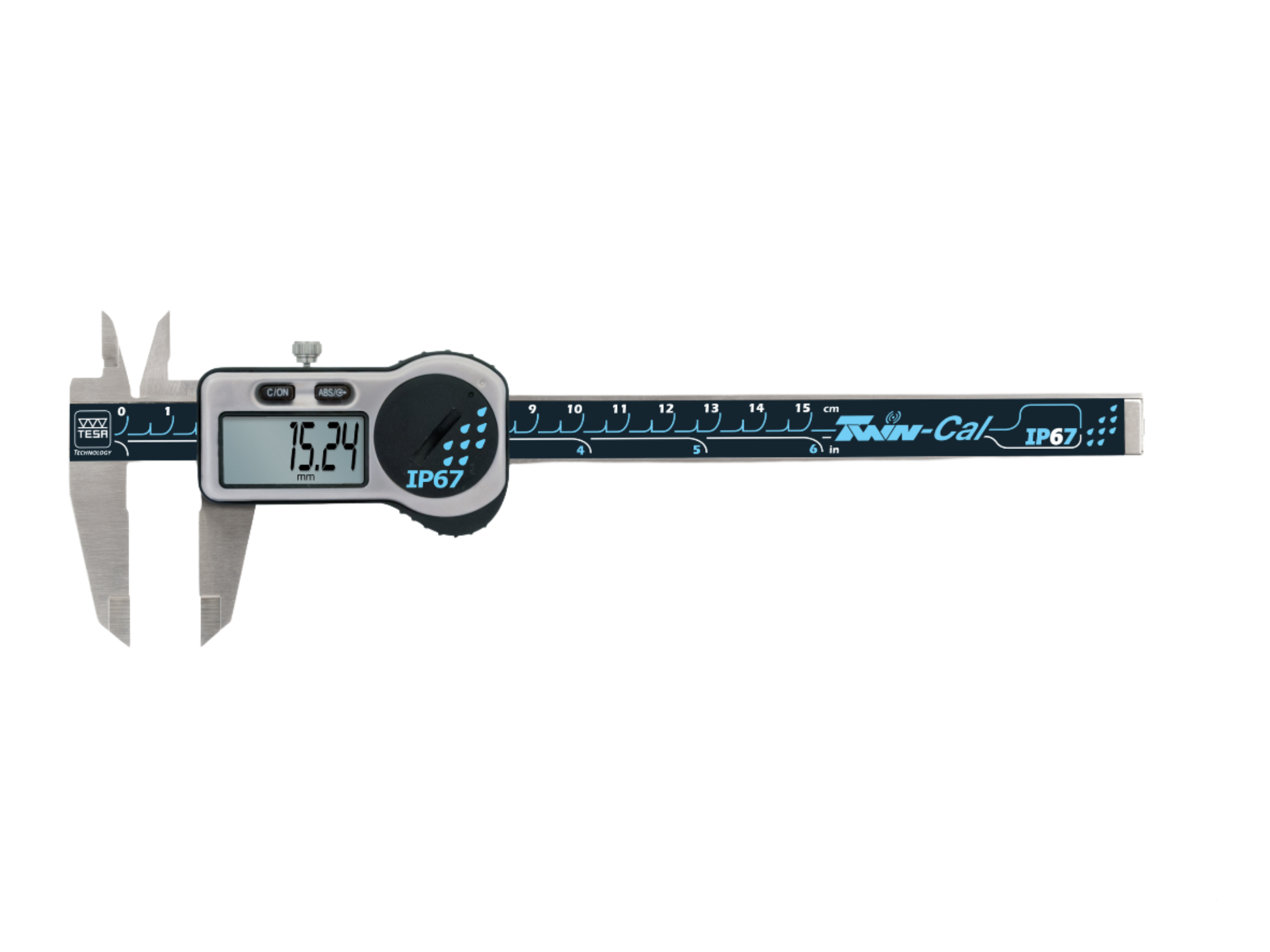

- 00530094 universal digital Caliper, 150 mm, TWIN-CAL, round rod, with thumb roller
- 04760184 TLC-BLE Bluetooth® emitter
All images are for representation only.
No technical information is currently available.
No application information is currently available.
