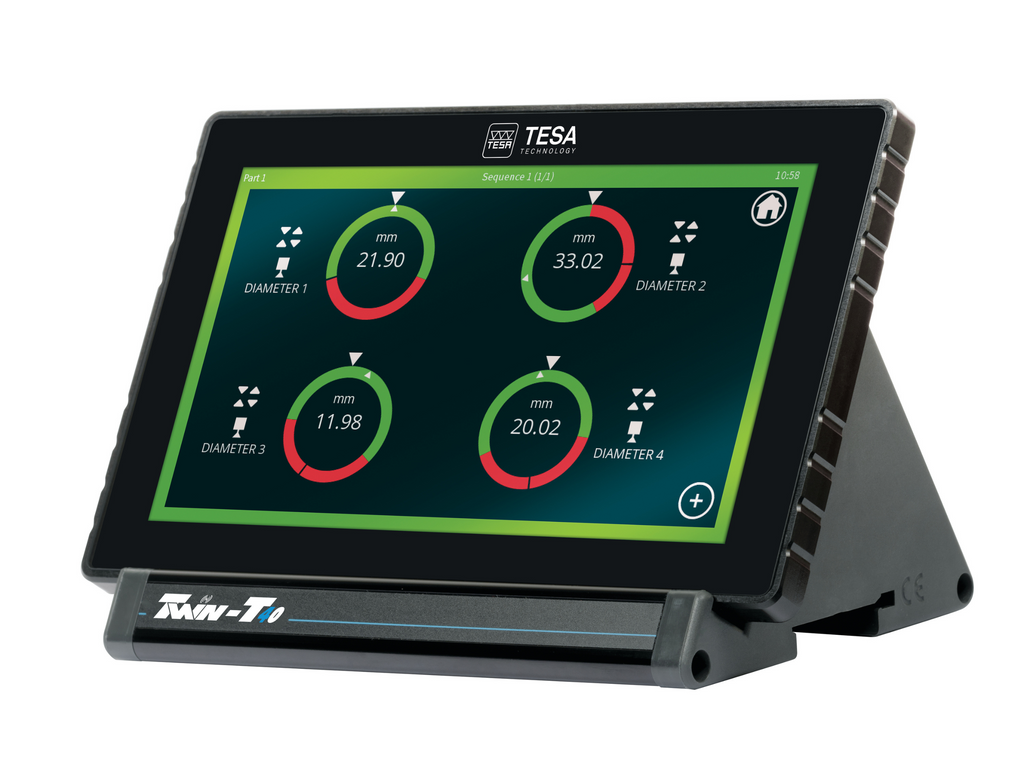

Twin-T40 Digital Display 04430015
View Product Brochure
USE
- Robust, for laboratory and workshop use
- Compatible with a wide range of probes and measuring devices
- Large colour screen for comfortable reading in dark environments
- Black background display for excellent contrast
- Refined interface for easy handling without confusion
- different display styles
- Touch screen
FUNCTIONS
- One or two measurement values displayed
- Static or dynamic measurements
- Intuitive measurement setting
- 16 tolerance classes available
- Mathematical functions for simultaneous calculation of multiple probes (flatness)
SPECIFICATIONS
- Units mm / in
- Standard DIN 32876
- Max. perm. errors At 20°C, relative humidity of ≤ 50 %, with fictive probes:
- Digital display: ± (0,2 % measured value + 0,3 µm)
- Material Housing: aluminium

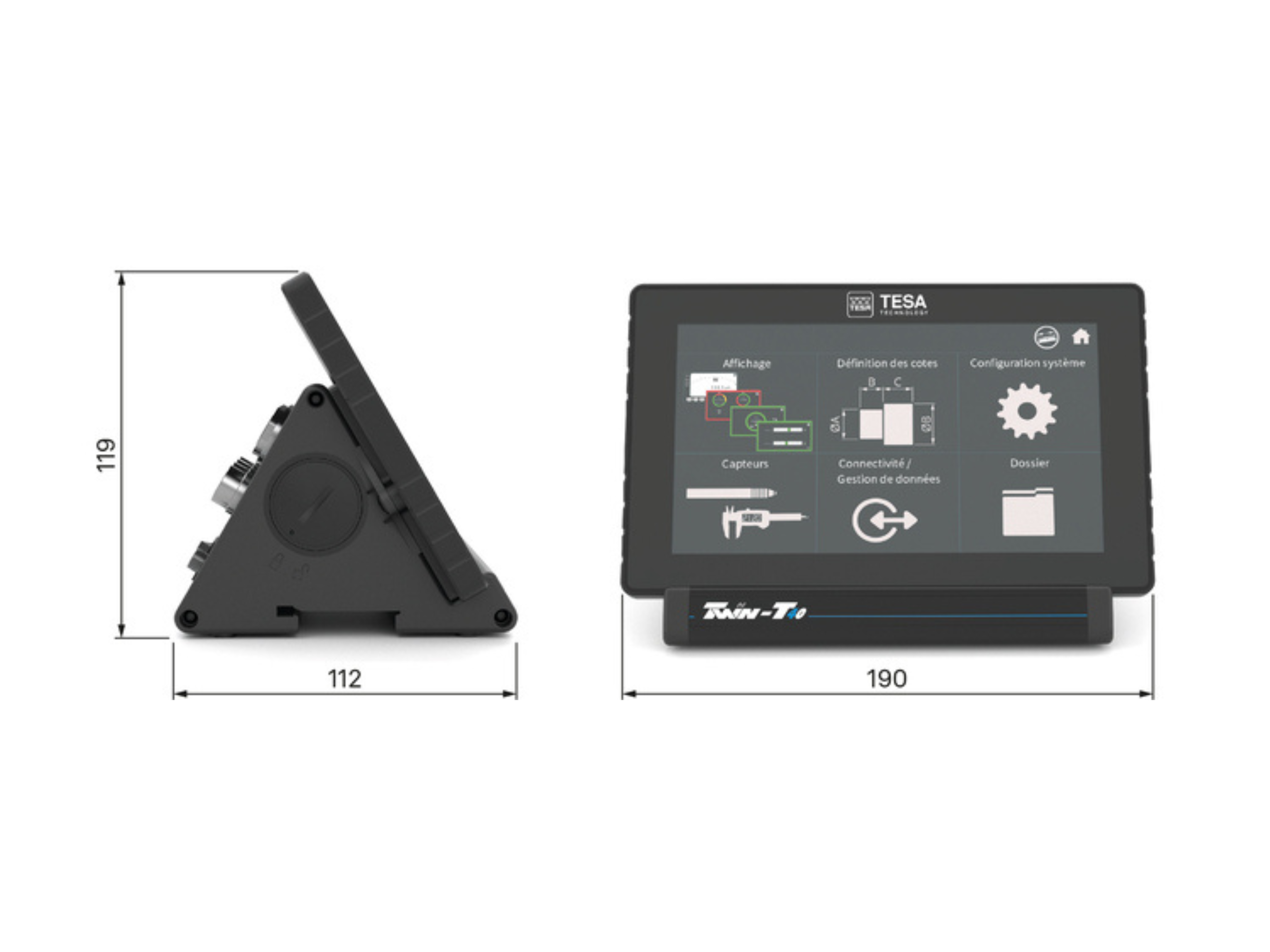

- Dimensions Housing: 112 x 190 x 119 mm
- Screen: 155 x 87 mm
- Degree of protection Front side: IP65
- Particular characteristic(s) At 20°C and relative humidity of ≤ 50 %:
- Zero drift ≤ 0,15 μm / °C
- Weight 1,74 kg
- Power supply 100 ÷ 240 V, 50 ÷ 60 Hz, 0,6 A
- Included in delivery TWIN-T40 display unit
- Power supply + EU, UK, US and CH cables
- Self-test report
- Calibration certificate
- Data output(s) TLC, RS232
All images are for representation only.
