Bowers Ultima Bore Gauge Set with Sylvac D62S display 20-100mm

Roll over image to zoom in Click on image to zoom

Bowers Ultima Bore Gauge Set with Sylvac D62S display 20-100mm

Name: Bowers Ultima Bore Gauge Set with Sylvac D62S display 20-100mm
Brand: Bowers
SKU: USET10D
Price: 6139.0 GBP
Availability: InStock

BowersSKU: USET10D

All prices exclude VAT, which will be added at checkout.

Price:

£6,139.00 £7,441.50

Quantity:

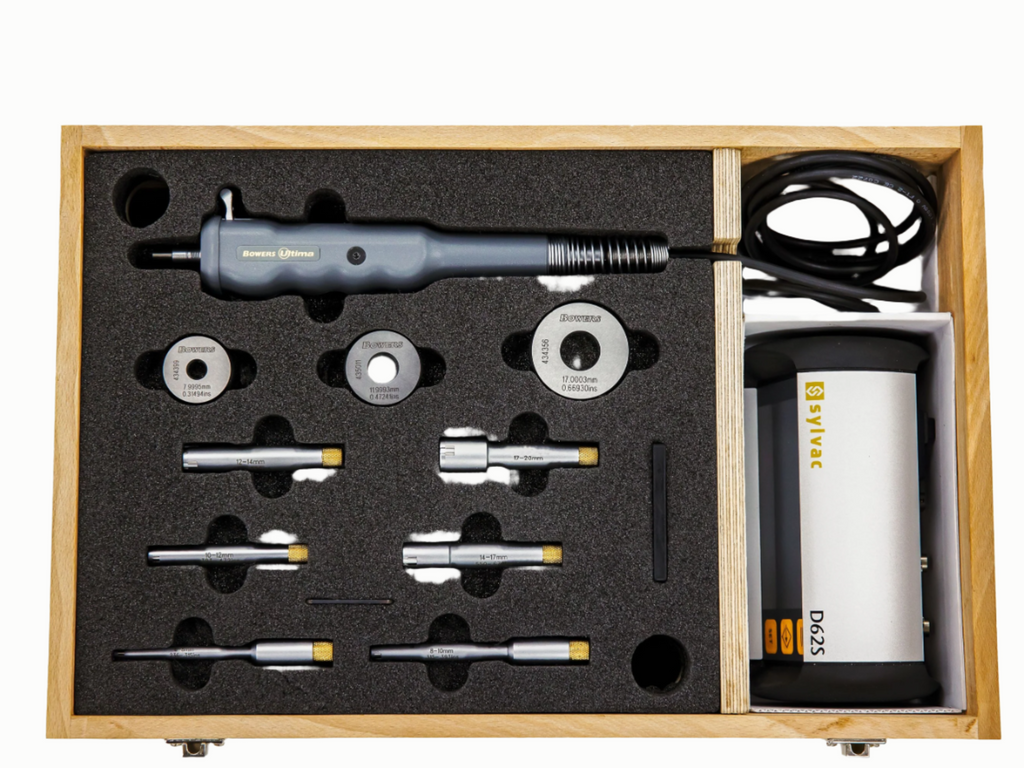

Bowers Ultima Bore Gauge Set with Sylvac D62S Display

Featuring the NEW Bowers ‘FASTFIT’ measuring heads with extended measuring range (above 14mm), the Ultima boasts a simple lever operation and a constant measuring force, ensuring outstanding ease of use and repeatability under laboratory or shop-floor conditions.

FEATURES

UKAS certificates standard for all measuring heads and setting rings
Measuring range 2-310mm (0.080"-12.000")
Resolution: 0.0001mm (0.00001")
Constant spring pressure for improved repeatability
Good positive feel as heads self-centre in the bore
Bowers 'Fastfit' measuring heads for rapid changeover
Ceramic anvils on heads above 12mm
Blind-bore measurement standard above 12mm
Possible to connect 2 probe holders to one single readout to measure different bore sizes at one measuring station
The complete range of Bowers special heads is available for the Ultima (grooves, threads, splines, deep-bores etc)
Depth stops available for all heads
Alternative displays available on request
Available without digital readout unit (if not required)
Interchangeable probe option, to allow use of other manufacturers probes and displays

All images are for representation only.

Product Information
Part Number	USET10D
Measuring Ranges	20-100mm
Display Type	Digital
