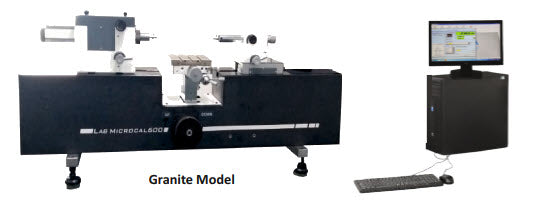

Universal Length Measuring Machine) Display : PC Based System (Granite Base Model) LMC 600

(Universal Length Measuring Machine)

Display : PC Based System

(Granite Base Model)

(Universal Length Measuring Machine)

Display : PC Based System (Computer not supplied)

===============================

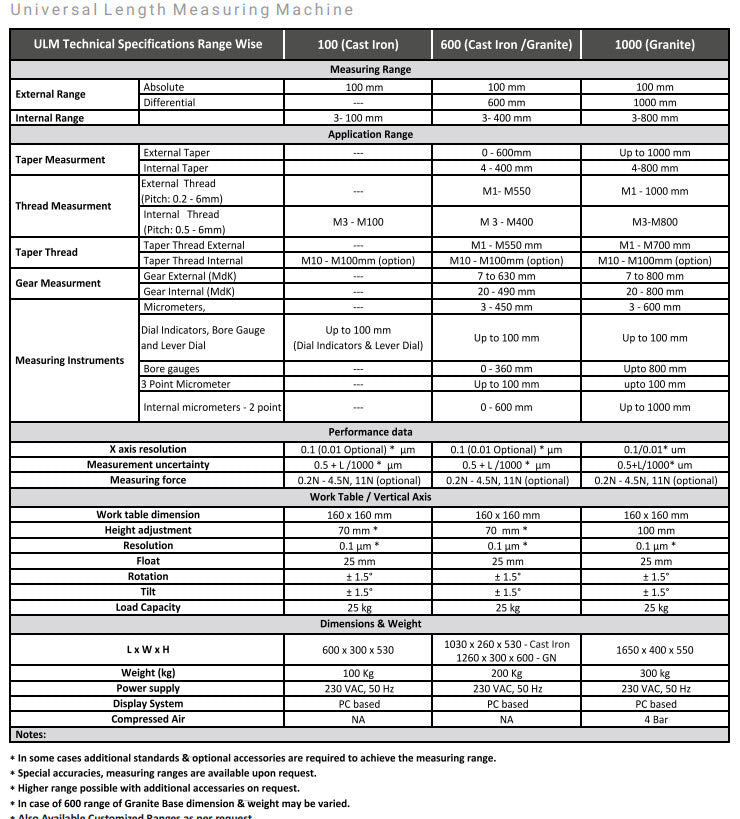

Measuring Capacity

===============================

External Size (mm) : -

Absolute Measurement 0-100mm

- Relative Measurement 0-600mm

Internal Size (mm) : -

10-400***mm

===============================

Accuracy

===============================

Horizontal Axis ;

Instrument Uncertainty : 0.3 + L/ 1000 μm (at 20°C ±1°C)

by Laser Calibration at our end.

Resolution : 0.1 μm

Repeatability : 0.2μm (at ±2 Sigma)

by Laser Calibration at our end.

.

Vertical Axis:

Resolution : 1 μm

Measurement Range: 70 mm

Measurement Uncertainty : 2μm

Repeatability : 1μm (+/- 2 Sigma)

.

Motorised drive for Z Axis is Available optionally - price on request



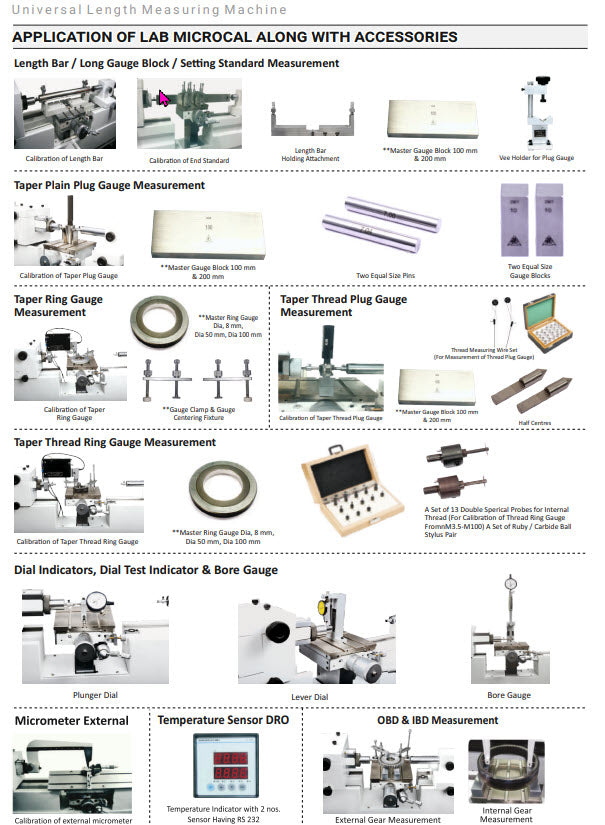

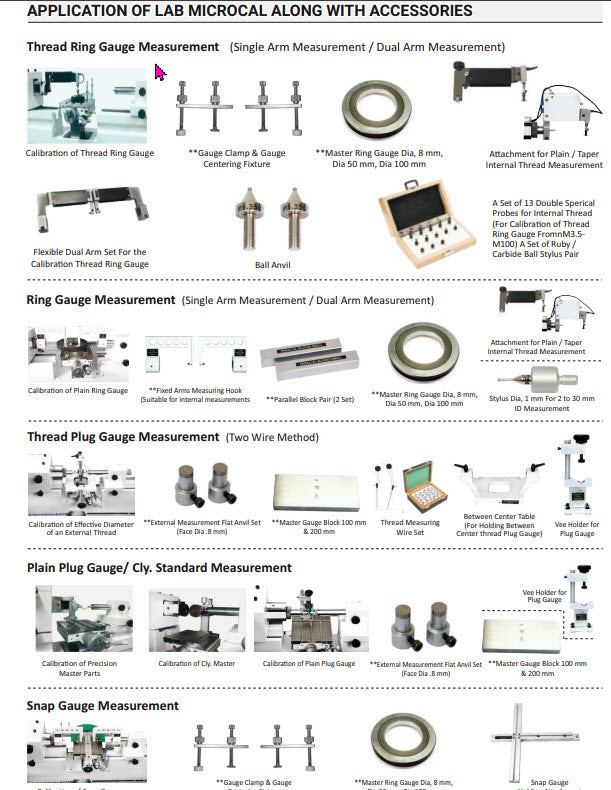

Scope of supply

===============================

1) Basic LMC 600 Machine

2) Dual arms measuring Anvils (suitable for internal measurements)

3) External Measurement Flat anvil set (face dia. 8,14 & 20 mm)

4) Gauge Clamp

5) Parallel blocks pair – 2 sets

6) Master Ring Gauge Dia. 8mm,Dia.50mm & Dia. 100mm

7) Master Gauge Block 100mm & 200mm

8) Single arm Taper measuring attachment with GT31 Probe

(Suitable for Plain / Thread measurements)

9) Pin Gauge Accuracy ±1μm of Dia. 9.52 mm (2 Nos.)

10) PC System Should be Provided By Customer

with the following specification only.

1. Windows 11 O.S. 64 bits

2. Minimum 2 GB RAM

3. Minimum 100 GB HDD

4. Minimum 2 serial comport

5. Internet Connection

6. Microsoft office (Report Export tool - Excel & Database - Access) 2003/2007

7. Standard UPS

8. Antivirus : Standard (Do Not Use Local)

.

11) LMC Software (Version 3.0.0.) Basic

Standard Software for Data Management

Cal Software (As per enclosed Annexure)
