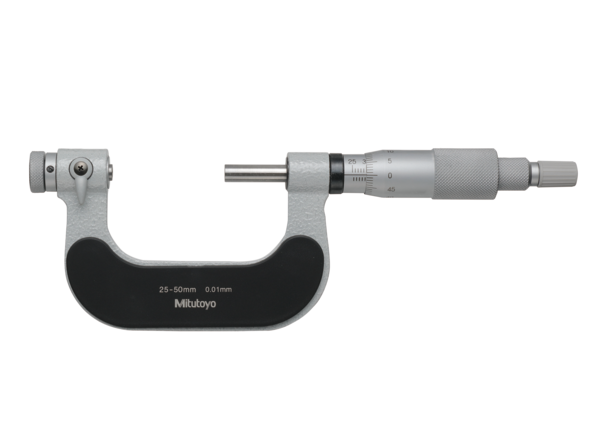

Universal Micrometer Interchangeable Avil/Spindle, 25-50mm 116-102-10

Universal Micrometer Interchangeable Avil/Spindle, 25-50mm 116-102-10

This Universal Micrometer should be used with optional interchangeable tips. It offers you the following benefits:

• Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip
  (including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications.
• Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also
  available.

• Range: 25-50 mm
• Resolution: 0.01mm
• Accuracy: ± 0.004mm
• Non rotating spindle
• Ratchet stop
• Measuring force: 5-10N
• Measuring face: Interchangeable anvil/spindle inserts (optional)
• Measuring spindle: 8 mm diameter, spindle pitch 0.5 mm
• Scale: Thimble and sleeve satin chrome finish, 18mm diameter
• Metric
