Built for External 6-Lobe Acceptance Inspection.

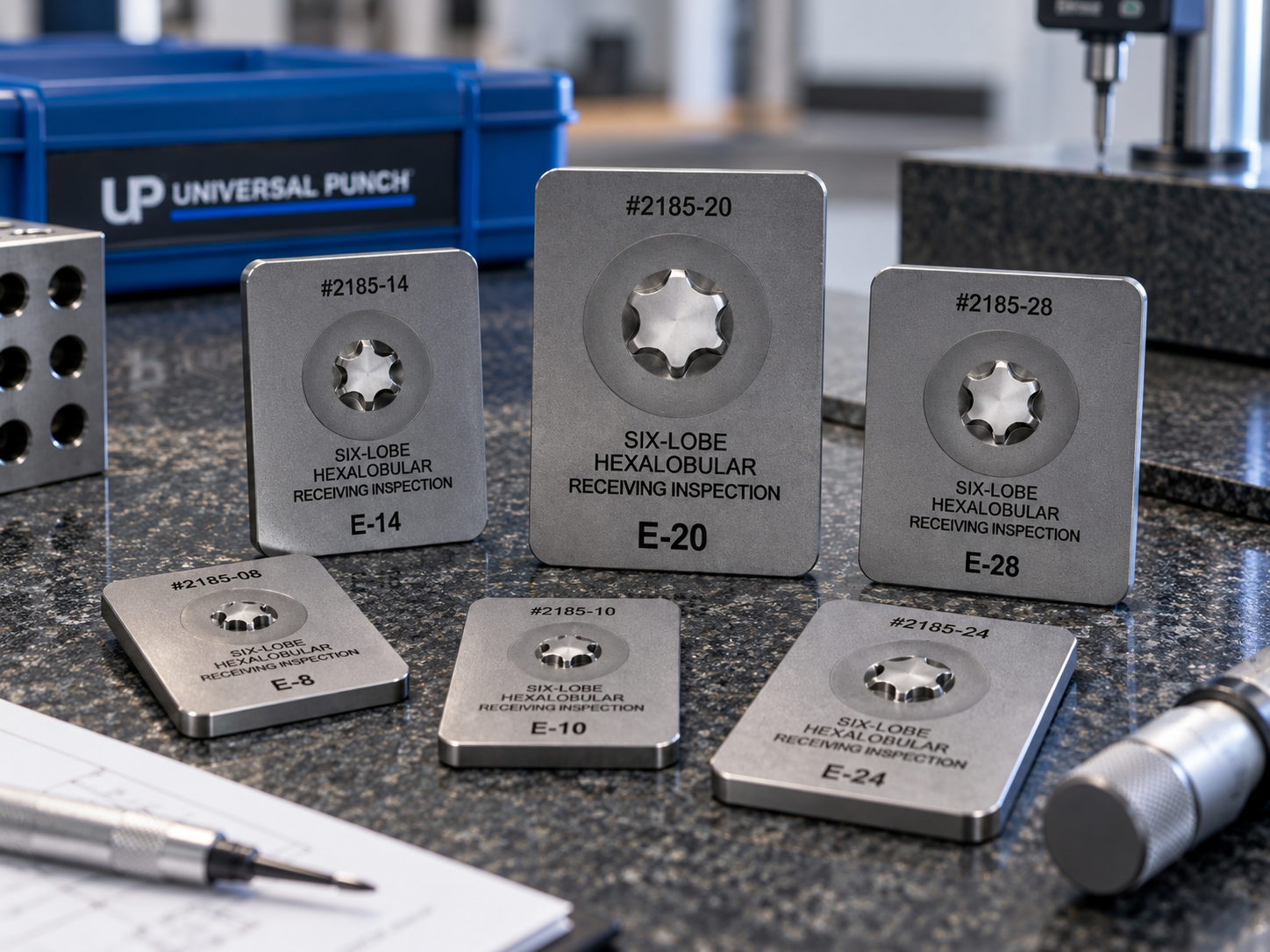

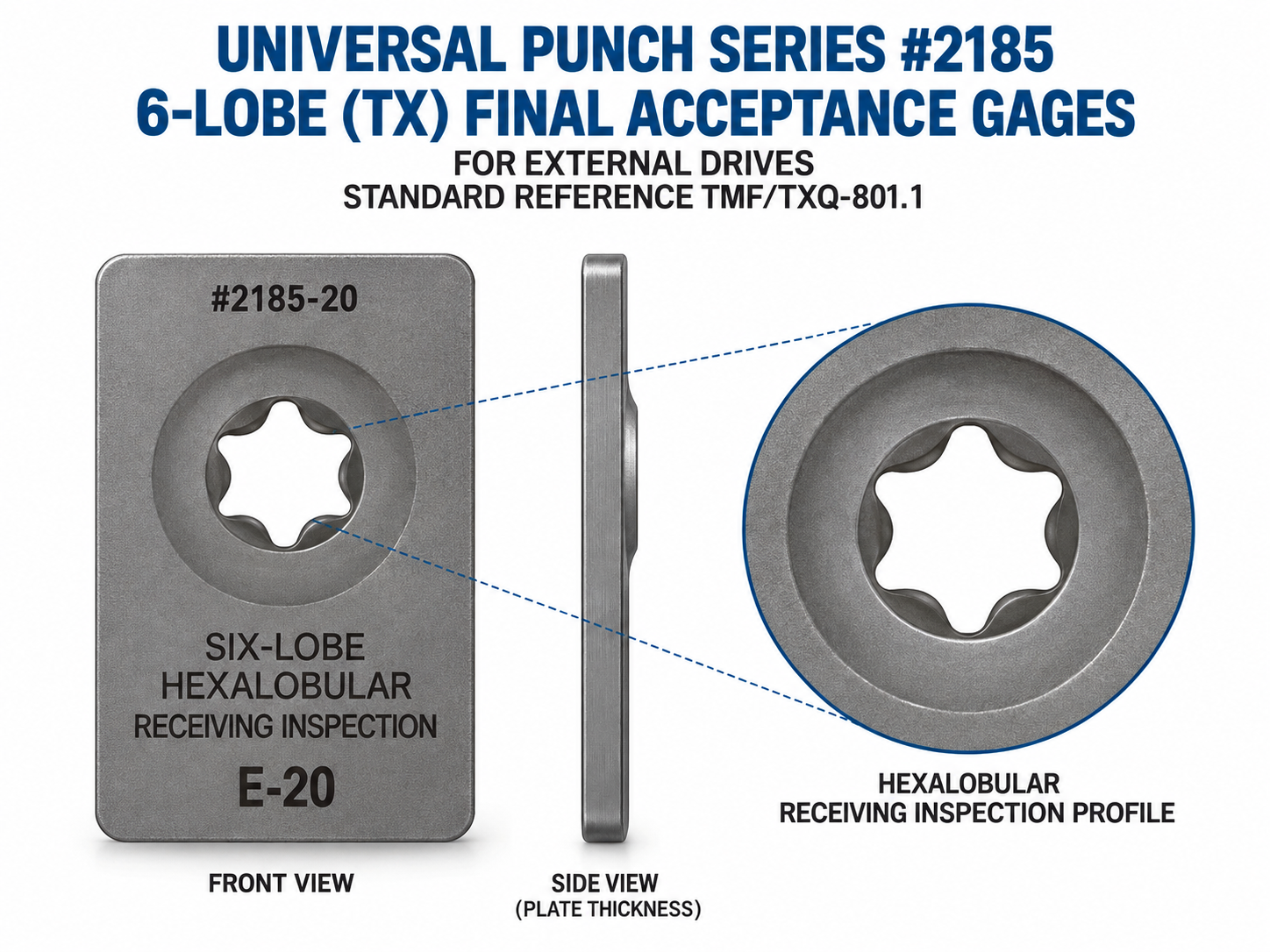

Universal Punch Series #2185 is the cataloged family of 6-Lobe (TX) Final Acceptance Gages for external drives.

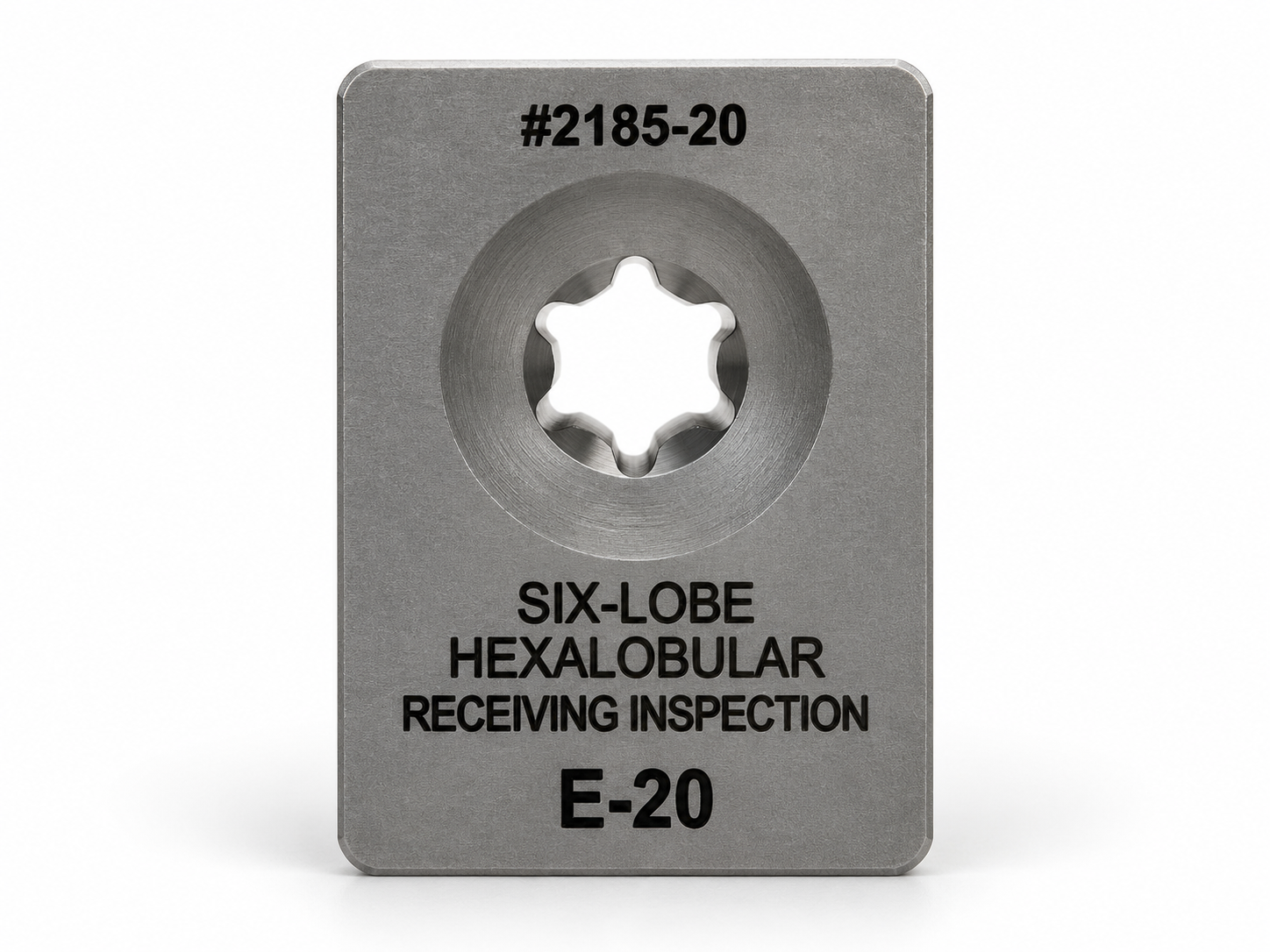

Each gage corresponds to a specific E-series drive size and provides the required six-lobe hexalobular receiving-inspection profile.
External Drive Verification
Inspect the applicable external 6-lobe drive configuration using the corresponding catalog gage size.
E-4 Through E-44
Eighteen published Universal Punch Series #2185 configurations are listed in the catalog.
What the #2185 Helps You Inspect
Series #2185 is identified in the Universal Punch catalog as a Final Acceptance Gage family for external drives.
Series #2185 Part Numbers & Drive Sizes
Search the official catalog range by Universal Punch part number or E-series external drive size.
| Part Number | Drive Size | Drive Type | Gage Family |
|---|---|---|---|
| 2185-04 | E-4 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-05 | E-5 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-06 | E-6 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-07 | E-7 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-08 | E-8 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-10 | E-10 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-11 | E-11 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-12 | E-12 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-14 | E-14 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-16 | E-16 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-18 | E-18 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-20 | E-20 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-24 | E-24 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-28 | E-28 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-32 | E-32 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-36 | E-36 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-40 | E-40 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
| 2185-44 | E-44 | 6-Lobe (TX) External Drive | Final Acceptance Gage |
TMF/TXQ-801.1
The Universal Punch catalog identifies the #2185 family as 6-Lobe (TX) Final Acceptance Gages for external drives.
When requesting a quote, specify the Series #2185 part number and the applicable E-series drive size.
