Universal PunchSKU: 12000
Price: POA

A variable reading external thread gaging system designed for fast, repeatable measurement of pitch diameter, functional diameter, major diameter, and thread condition in production and quality environments.

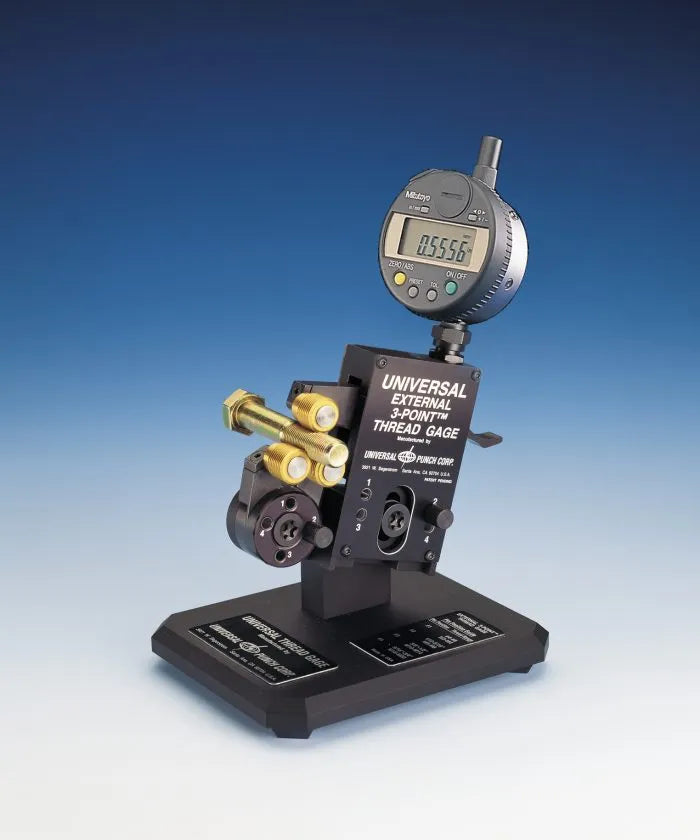

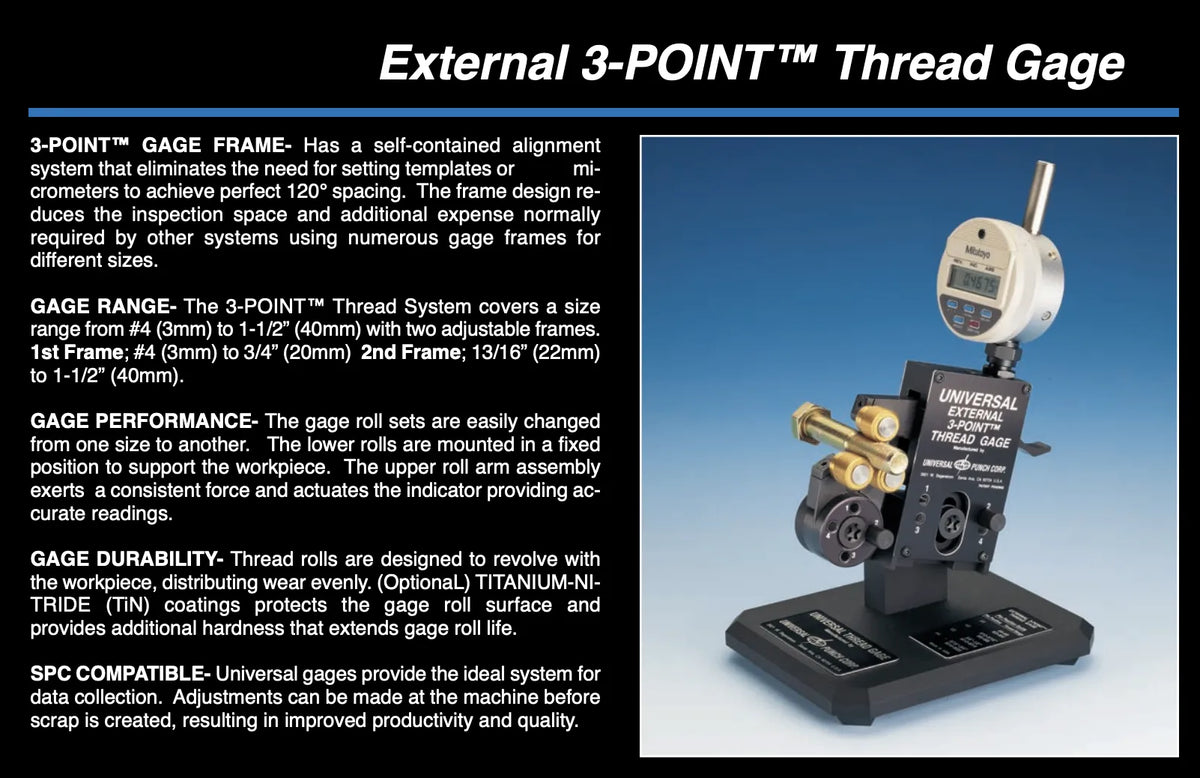

The #12000 External 3-POINT™ Thread Gauge from Universal Punch Corp. is a variable reading thread gaging system built for accurate, repeatable external thread inspection. Rather than functioning as a simple fixture, this is a complete gaging platform designed to measure critical thread attributes with greater consistency and reduced operator variation.

The system uses a self-contained alignment design that eliminates the need for separate setting templates or micrometers to achieve 120° spacing. With interchangeable gage roll sets, adjustable frame coverage, indicator options, mounting stand configurations, and thread setting masters, the #12000 platform supports efficient external thread measurement across a broad range of production and inspection applications.

Why Manufacturers Use the #12000 System

Self-Contained 120° Alignment

Eliminates the need for separate setting templates or micrometers to establish proper three-point spacing.

Interchangeable Roll Sets

Supports measurement of pitch diameter, functional diameter, and major diameter using application-specific gage rolls.

Fast Changeover

Roll sets are easily changed from one size to another, improving inspection efficiency across multiple thread sizes.

SPC-Compatible Inspection

Designed to support data collection and process control so adjustments can be made before scrap is created.

Engineered for Variable Reading Thread Gaging

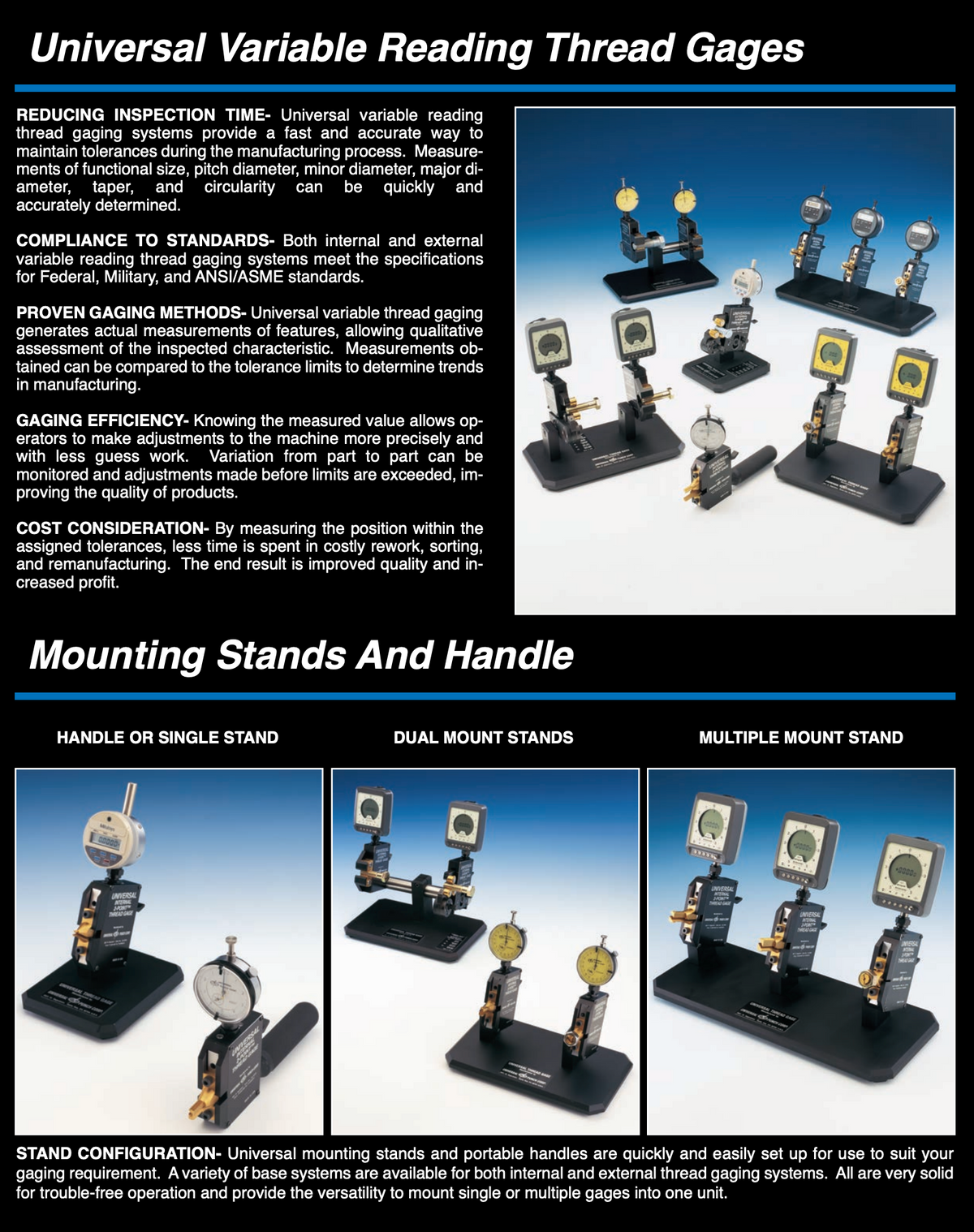

Universal variable reading thread gaging systems provide a fast and accurate way to maintain thread tolerances during manufacturing. By generating actual measurement values rather than simple pass/fail feedback, the #12000 system helps operators monitor variation, improve process control, and reduce costly sorting or rework.

This makes the #12000 platform especially valuable for manufacturers that need dependable external thread inspection with measurable, repeatable results that can be compared against tolerance limits and used to guide machine adjustments.

What the #12000 System Supports

  • Repeatable external thread measurement with a true variable reading system
  • Measurement of pitch diameter, functional diameter, and major diameter
  • Broad thread size coverage using two adjustable gage frames
  • Improved inspection consistency across operators and workstations
  • Faster setup and verification compared with traditional pass/fail-only methods
  • SPC-capable inspection and process monitoring workflows
  • Bench, dual mount, multi-gage, or portable handle configurations
  • Application-specific system builds based on thread size and inspection objective
  • Use in production, lab, and receiving inspection environments
  • Reduced rework, sorting, and remanufacturing through measurable thread control

  • System Components and Ordering Structure

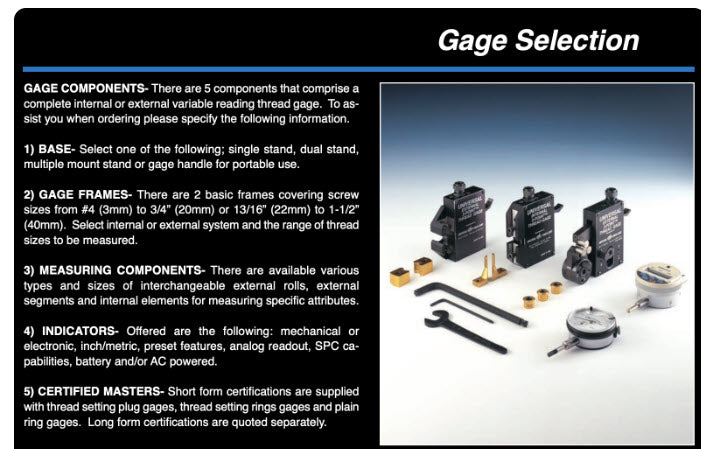

    A complete #12000 external variable reading thread gage system is typically configured around five core elements so the build matches your part, thread size, and inspection workflow.

    1. Base
    Single stand, dual stand, multiple mount stand, or portable handle
    2. Gage Frame
    External frame selected by thread size range
    3. Measuring Components
    Best wire rolls, full form rolls, plain rolls, or special roll configurations

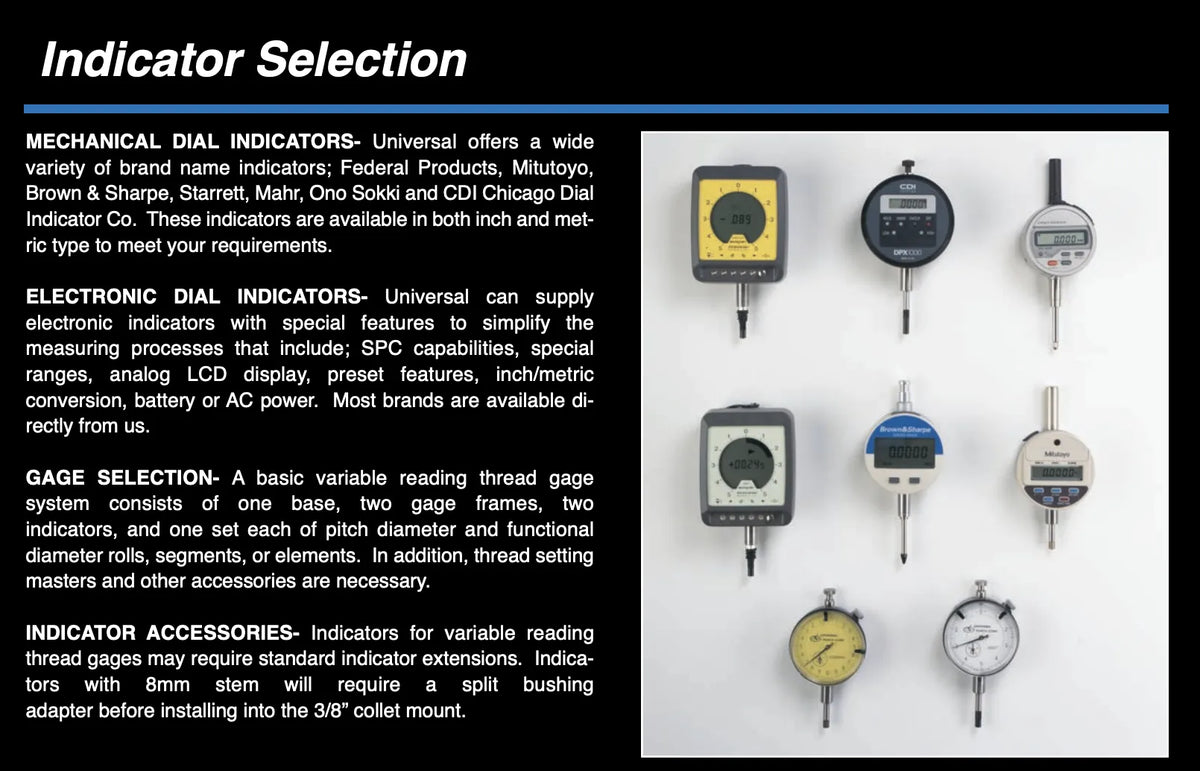

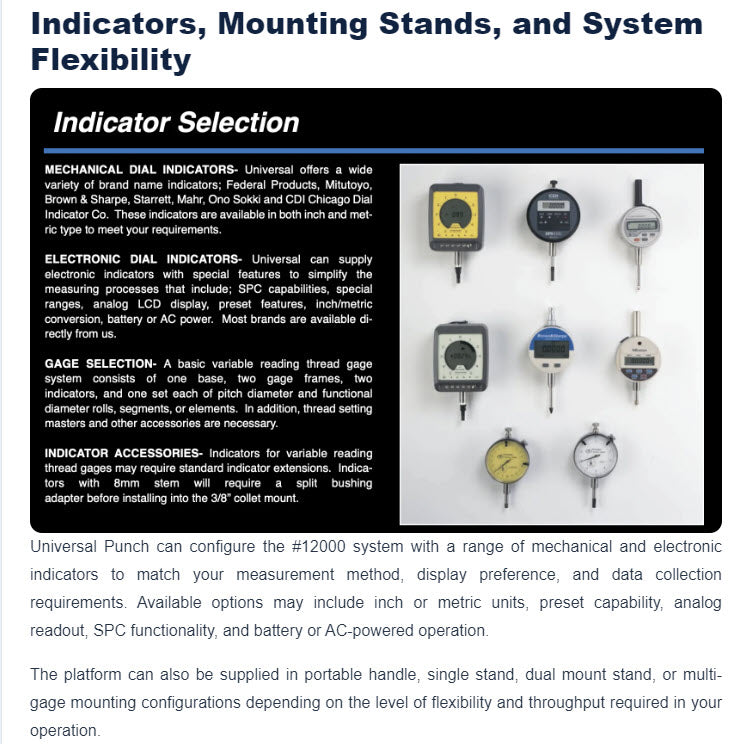

    4. Indicators
    Mechanical or electronic indicator options based on output and feature requirements

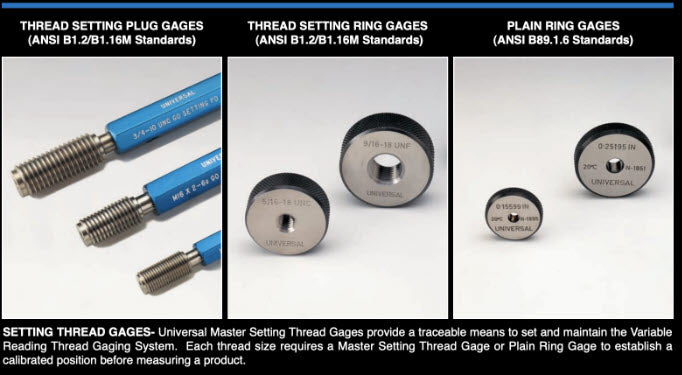

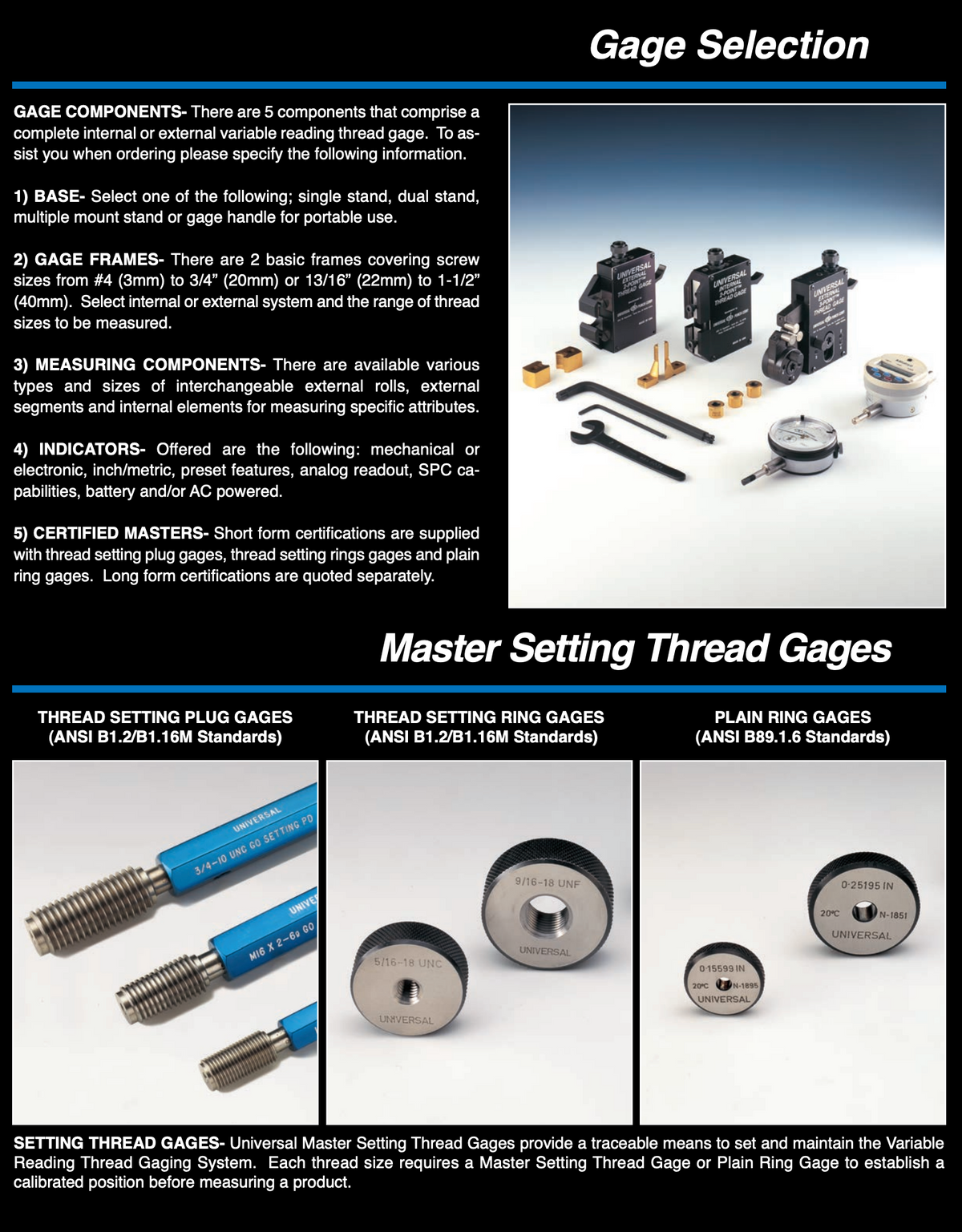

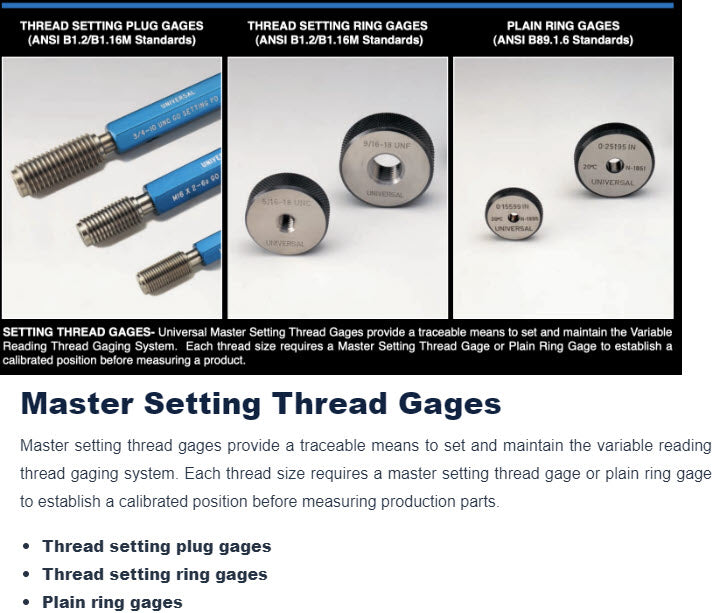

    5. Certified Masters
    Thread setting plug gages, ring gages, and plain ring gages for calibrated setup
    Optional Enhancements
    TiN-coated rolls, SPC data acquisition, custom configurations, and accessory support



Technical Specifications

Series #12000Product Type External 3-POINT™ Variable Reading Thread Gauge Primary Function Measures external thread characteristics using a three-point roll system

Measured Attributes Pitch diameter, functional diameter, major diameter, and related thread conditionsAlignment Method Self-contained 120° alignment system

Frame Coverage #4 (3 mm) to 1-1/2 in. (40 mm) using two adjustable frames Frame Range 1 #4 (3 mm) to 3/4 in. (20 mm)Frame Range 2 13/16 in. (22 mm) to 1-1/2 in. (40 mm)Indicator

Options Mechanical or electronic, inch/metric, preset, analog readout, SPC-capable Base Options Handle, single stand, dual mount stand, or multiple mount stand

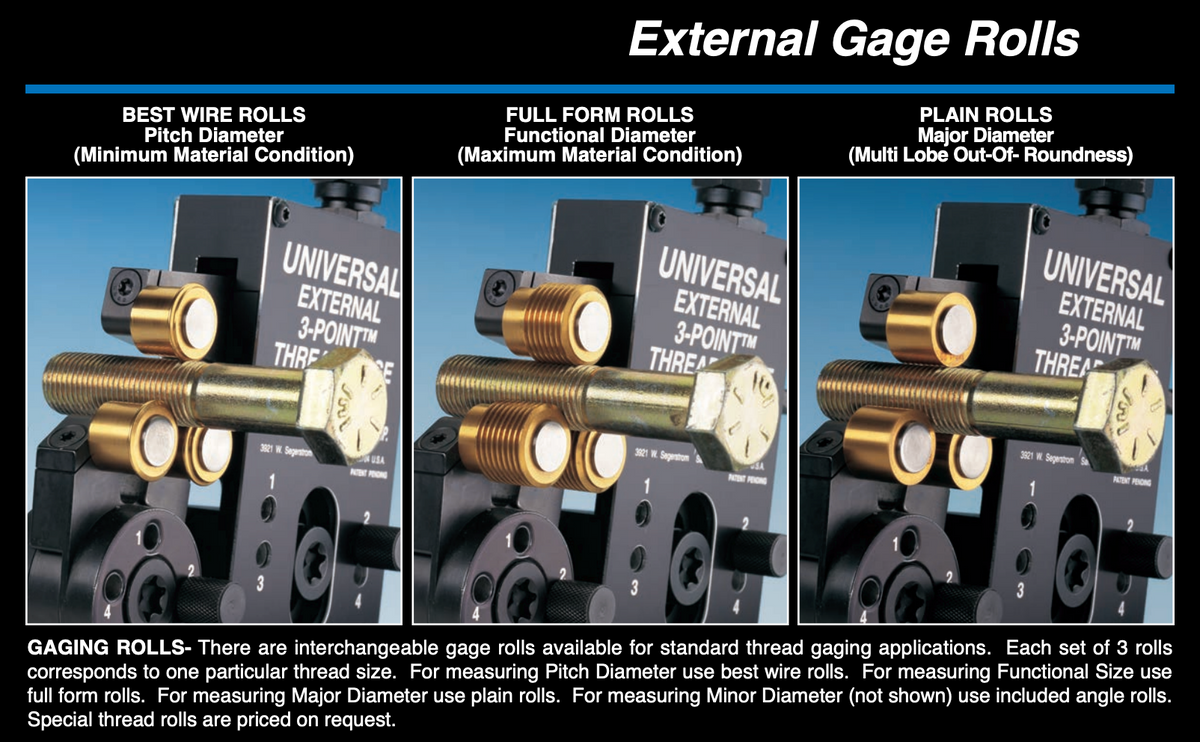

External Gauge Rolls

The #12000 system uses interchangeable gauge roll sets matched to the thread size and the specific characteristic being evaluated. Each set of three rolls corresponds to one particular thread size.

Best Wire Rolls

Used for pitch diameter measurement, minimum material condition.

Full Form Rolls

Used for functional diameter measurement, maximum material condition.

Plain Rolls

Used for major diameter measurement and multi-lobe out-of-roundness evaluation.

For measuring pitch diameter use best wire rolls. For measuring functional size use full form rolls. For measuring major diameter use plain rolls. Minor diameter evaluation uses included angle rolls

Typical Applications

The #12000 External 3-POINT™ Thread Gage is well suited for manufacturers that need actual measured values for external thread control rather than relying only on pass/fail ring gaging. It is especially useful in production environments where thread size trends must be monitored and machine adjustments made before defects accumulate.

  • External thread pitch diameter inspection
  • Functional diameter verification
  • Major diameter and out-of-roundness checks
  • SPC-driven shop floor process control
  • Receiving and final inspection of threaded fasteners and components

Build the Right #12000 Thread Gaging System for Your Application

Universal Punch can review your thread size range, measurement objective, indicator preference, stand configuration, and master setting requirements to recommend the right #12000 external thread gage package for your operation.
