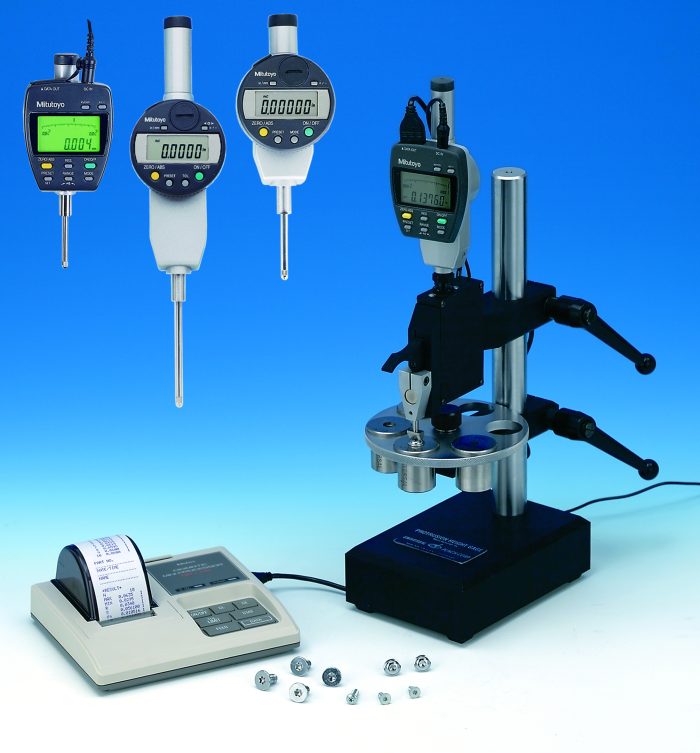

The #9455 Precision Height Fixtures from Universal Punch Corp. are designed to support highly accurate height measurement and dimensional verification for fasteners and precision components. These fixture systems provide stable part positioning and controlled alignment, allowing operators to perform repeatable height inspections with improved consistency across production and laboratory environments.
Engineered for demanding manufacturing and quality workflows, the #9455 fixture platform reduces setup variability, improves operator repeatability, and supports dependable dimensional measurement during inspection and validation processes.
Precision height measurement fixture system
Supports stable alignment and repeatable setup
Designed for high-accuracy dimensional inspection
Production and laboratory measurement use
Compatible with Universal Punch inspection systems
Product Overview
The #9455 Precision Height Fixtures are engineered for applications where accurate dimensional height measurement is critical to product performance and quality control. By providing stable part support and consistent alignment during inspection, the fixture helps minimize measurement variation and supports more reliable inspection results.
In practical use, this fixture system helps standardize the inspection process by maintaining consistent part orientation and stable positioning during measurement. This improves repeatability between operators and allows dimensional inspection to be performed more efficiently and accurately.
Universal Punch designs fixture systems for demanding precision manufacturing environments where dimensional accuracy, inspection repeatability, and long-term measurement reliability are essential.
What This Fixture Supports
- Stable support for precision height measurement
- Improved repeatability during dimensional inspection
- Reduced setup variation between operators
- Controlled positioning of fasteners and components
- Production and receiving inspection workflows
