Universal Punch B-10 Model Part Diameters: 1/8” - 1” (3mm to 25mm) Part Lengths: up to 4” (102mm) 3/32” (1mm) Capacity with Zero Style Rollers, Accuracy .004mm/.00016"

PDF of Concentricity Gauges

Specifications

Part Diameter Capacity: 1/8″ to 1″ (3mm to 25mm)

Diameter Minimum 1/24″ (1mm) or less with Zero Style Rollers

Part Length Capacity: Up to 4″ (102mm)

Gage Length: 10.5″ (267mm)

Gage Width: 4.5″ (114mm)

Gage Height: 6″ appx. (152 mm)

B-10 Universal Punch Concentricity Gages are comprised of three main components for assembly:

Zero Plain Rollers

For Block Size -10 models, Zero Plain Rollers may be used to decrease the capacity diameter minimum to nearly zero in/mm.

Features

• Adjustable multi-position top arm yoke assembly offers a variety of clamping pressures and positions to accommodate a range of part diameter sizes.
• All standard indicator carriers have fine adjustment screws that provide accurate indicator probe positioning, zeroing and provide smooth indicator movement to increase measuring performance and accuracy.
• All gages come standard with a manual drive timing belt pulleys system that provides a constant smooth part rotation when inspecting. (Optional) 110/220 volts AC/DC fixed speed or variable speed motorized drive systems are available.
• All carriers offer a variety of positions that move along the Z-axis of the carrier rod assembly. The carrier tilts 90 degrees to facilitate easy loading and unloading of parts.

P

• Standard or Precision Accuracy (selectable below)
• Main Rollers (selectable below)
• Indicator(s) and/or other accessories (linked below)

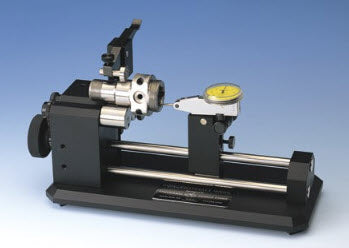

Universal Punch concentricity gauges come with everything pictured EXCEPT the indicators and the main rollers.

Main Rollers must be ordered Separately as well as Indicator
