Universal Punch - Back Stop Assembly - for Models -10, -20, -40 code 312-10

PDF

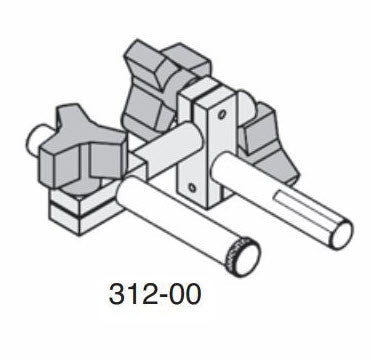

Back Stop Assembly to set parts on Concentricity Gages

• The Back Stop Assembly is another option available to ensure that the part does not travel in a linear direction.
• It maintains part stability, ensuring proper readings.
• The Back Stop Assembly is installed in the rear of the Main Block and can be adjusted to various positions to accommodate various lengths and diameters using the two Thumb Screw knobs.
• There are also different pin diameters available for more or less contact area.
