Universal Punch - Flate Plate Top Stop - for Models -10 & -20, code 315-10

PDF

Flat Plate Top Stop to set parts on Concentricity Gages

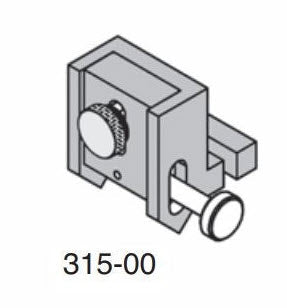

• The Back Stop Assembly is another option available to ensure that the part does not travel in a linear direction.
• It maintains part stability, ensuring proper readings.
• The Back Stop Assembly is installed in the rear of the Main Block and can be adjusted to various positions to accommodate various lengths and diameters using the two Thumb Screw knobs.
• This assembly has an additional vertical adjustment that can be used to accommodate various part diameters.
