Spindle and stem are made of resistant stainless steel.

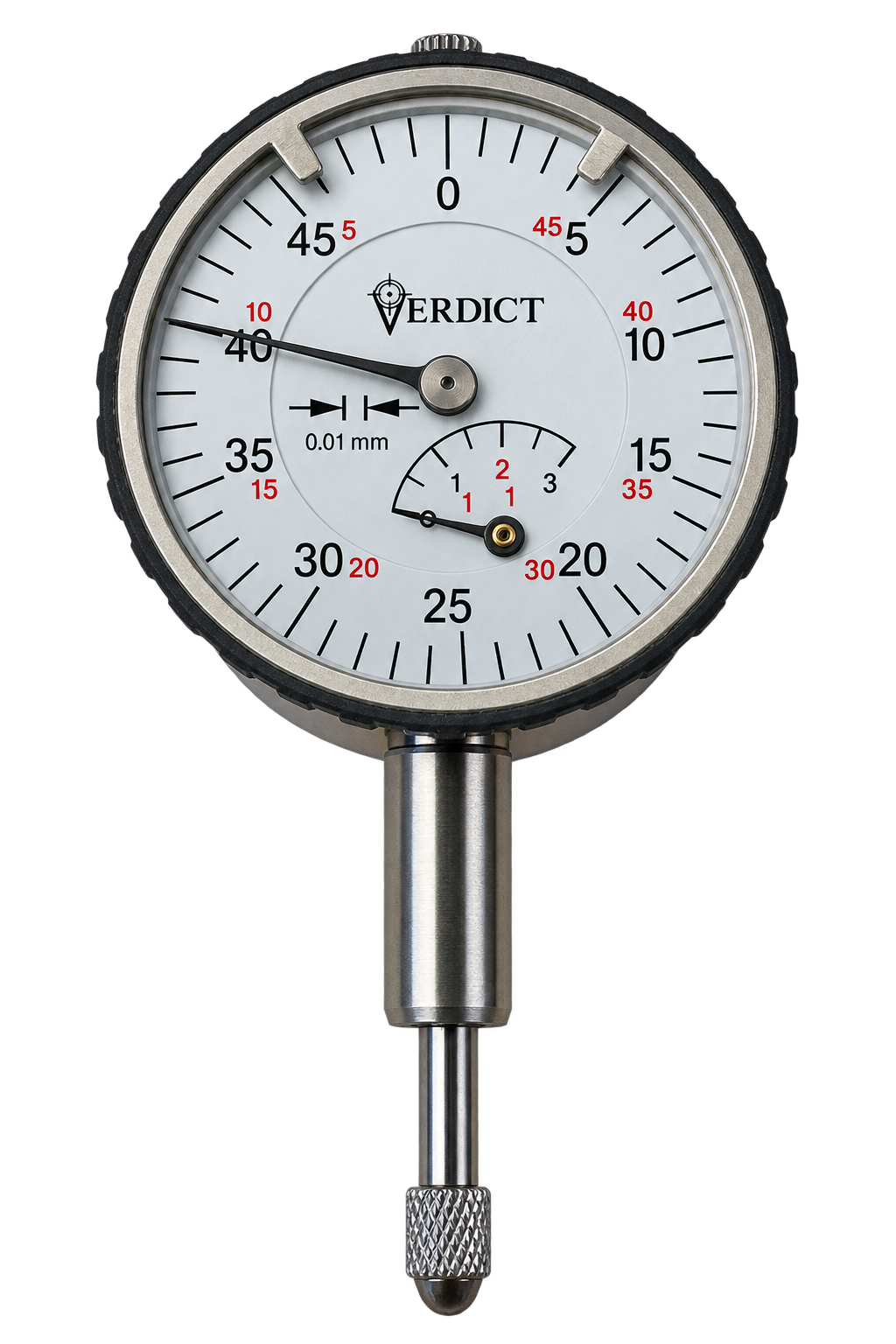

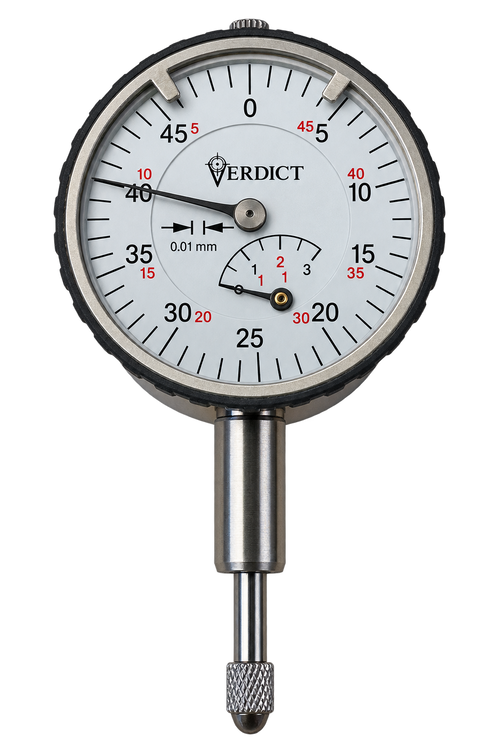

Verdict 23/2043 is manufactured by Kaefer in Germany

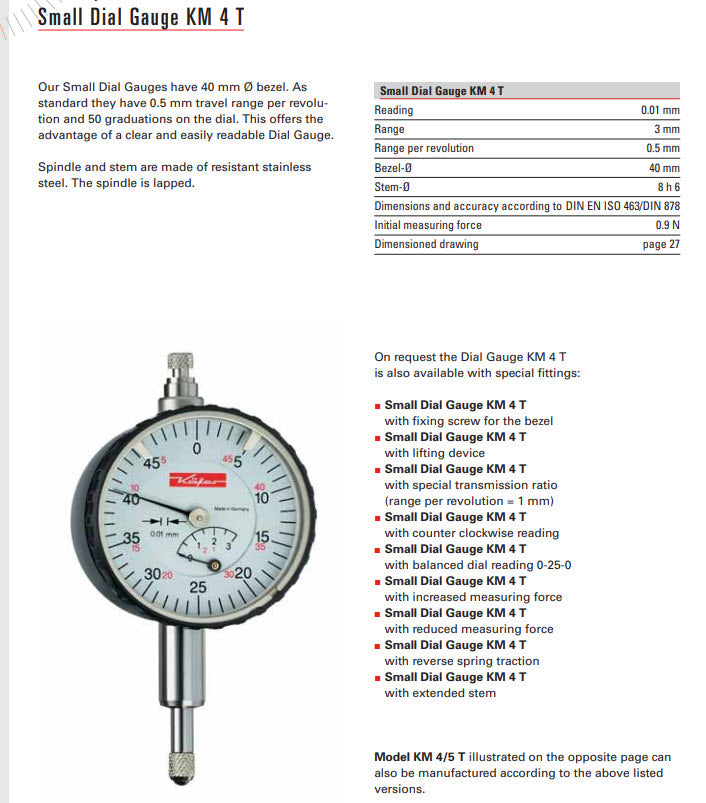

This High Precision Small Dial Gauge
is equipped with a high-class impact protection and has an extremely long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The Small Dial Gauge is robust in operation. It's precision is maintained with practically no limitations.

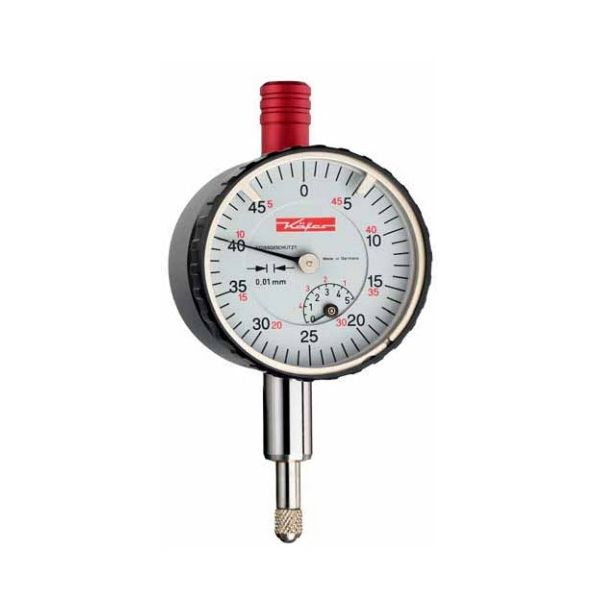

KÄFER Dial Gauge KM4T - Shockproof
KAFER Ref: 10006
Reading: 0.01 mm
Range: 3 mm
Bezel Ø 40 mm
With metal lifting cap to raise the plunger easily and prevent ingress of contaminants
Accuracy according to DIN 878
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
