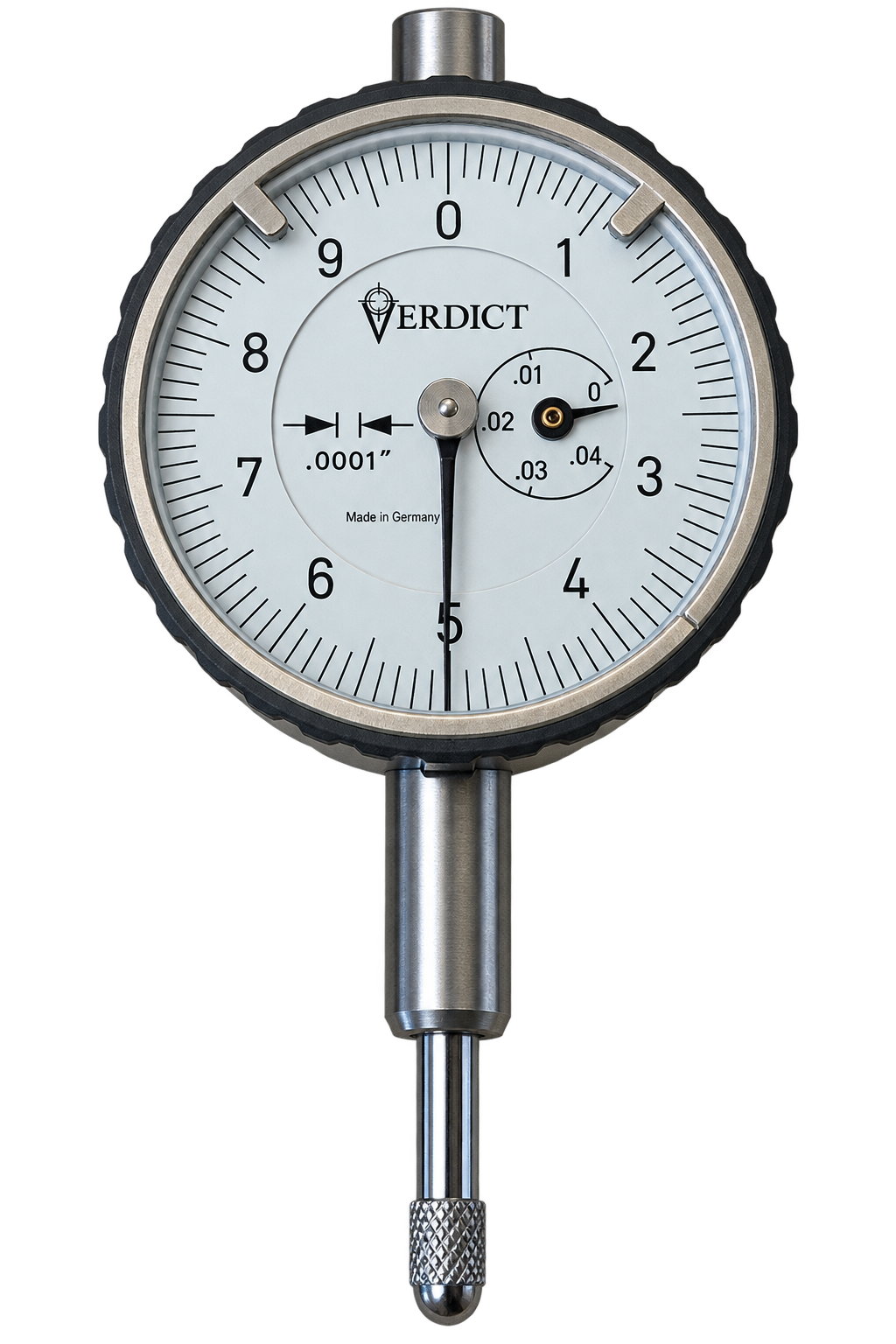

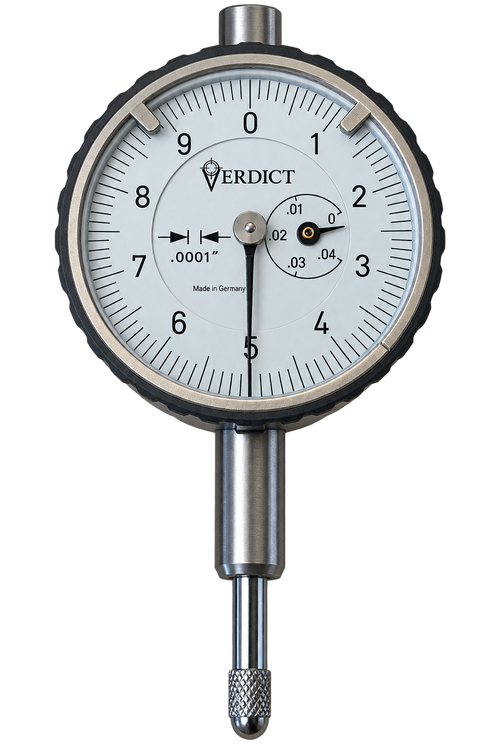

Verdict 23/2051 kaefer High Precision Dial Gauge KFZ0T shockproof Dial Indicator, 40mm face graduation, Reading 0.0001" Range .04" Range per revolution 0.01"
Roll over image to zoom in Click on image to zoom
Verdict 23/2051 kaefer High Precision Dial Gauge KFZ0T shockproof Dial Indicator, 40mm face graduation, Reading 0.0001" Range .04" Range per revolution 0.01"

Verdict 23/2051 kaefer High Precision Dial Gauge KFZ0T shockproof Dial Indicator, 40mm face graduation, Reading 0.0001" Range .04" Range per revolution 0.01"

VerdictSKU: KFZ0T
List price: £132.00 Offer price: £99.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
  • 23/2000Manufactured by Kaefer in Germany., The High Precision Small Dial Gauges KFZ0T equipped with a high-class impact protection have an extremely long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear.
    The Small Dial Gauges are robust in operation. Their precision is maintained with practically no limitations. Spindle and stem are made of resistant stainless steel. The spindle is lapped.
    Verdict 23/2000 Kaefer High Precision Dial Gauge KFZ0T  shockproof Dial Indicator, 40mm face graduation, Reading 0.0001" Range .04" Range per revolution 0.1"


Standard Type, .04"Range, 0,0001"Graduation

This is a standard dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Delivered:
With certificate of inspection
Range:
.04"
Range
per rev.:
.1"
Dial reading:
±0-100
Graduation:
0.0001"
Measuring force:
0,4 - 1,4 N
MPE any 1/10
revolution:
3 µm
MPE any 1/2
revolution:
3 µm
MPE any 1
revolution:
3 µm
MPE measuring range:
3µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Mass:
100 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
