Name: Vernier Height Gauge 0-450mm(0-18")514-105
Brand: Mitutoyo
SKU: 514-105
Price: 633.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

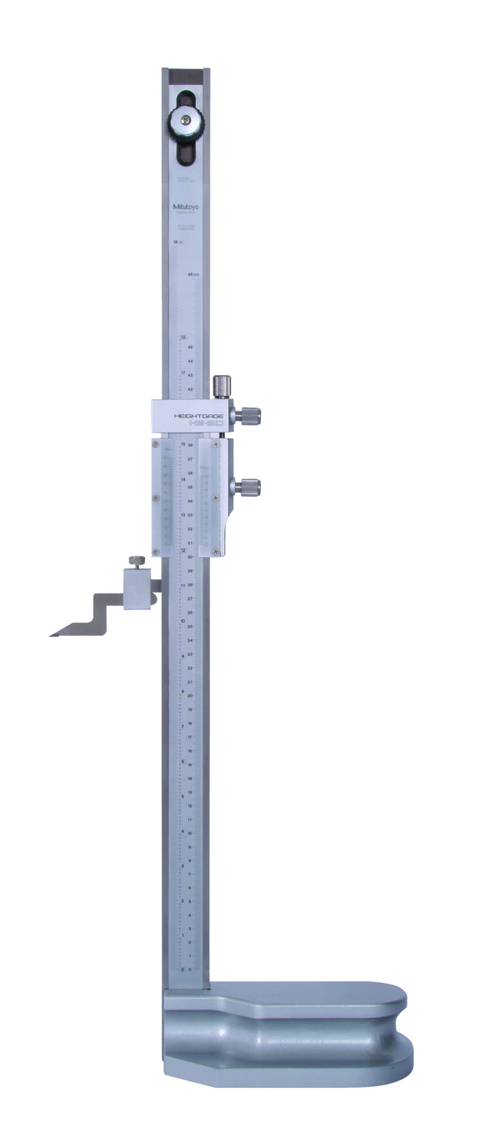

A Mitutoyo vernier height gauge with a dual unit, adjustable main scale. Stainless steel construction with easy-to-read, satin-chromed scales.

No technical information is currently available.

No application information is currently available.

Product Document Vernier Height Gauge 0-450mm(0-18")514-105 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Experienced engineers helping you select the correct measuring solution.

✔️

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation, commissioning and operator training available.

🤝

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Delivered:	Including carbide tipped scriber, scriber clamp
Range:	0 - 18 "/0-450mm
Graduation:	0,001"/0,02 mm
Max. Permissible Error E MPE:	±0,002"/±0,05 mm
Fine adjustment:	4 mm/0.16"
Max. Permissible Error J MPE:	±0,05 mm/0.002"
Scale adjustment:	0.6"
Inch-Metric:	Inch/Metric
Delivered:	Including scriber, scriber clamp and cover
Mass:	3.4 kg

Vernier Height Gauge 0-450mm(0-18")514-105
