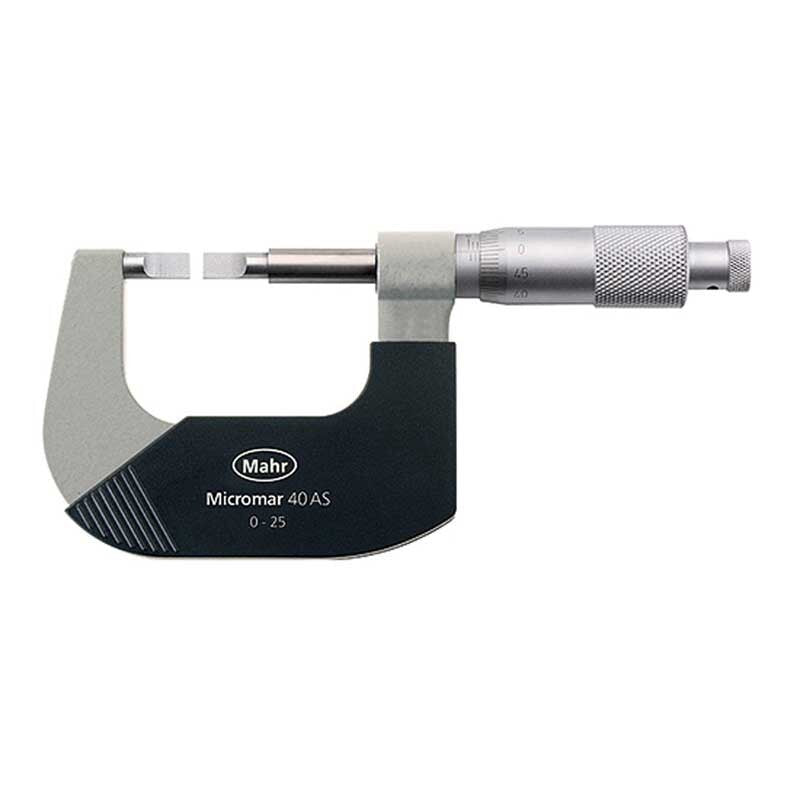

Mahr 40AS Blade Micrometer 0-25mm Blades 0.8mm x 6mm 4134200

Roll over image to zoom in Click on image to zoom

Mahr 40AS Blade Micrometer 0-25mm Blades 0.8mm x 6mm 4134200

Name: Mahr 40AS Blade Micrometer 0-25mm Blades 0.8mm x 6mm 4134200
Brand: Mahr
SKU: 4134200
Price: 195.0 GBP
Availability: InStock

MahrSKU: 4134200

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£195.00 £240.00

Quantity:

All prices exclude VAT, which will be added at checkout.

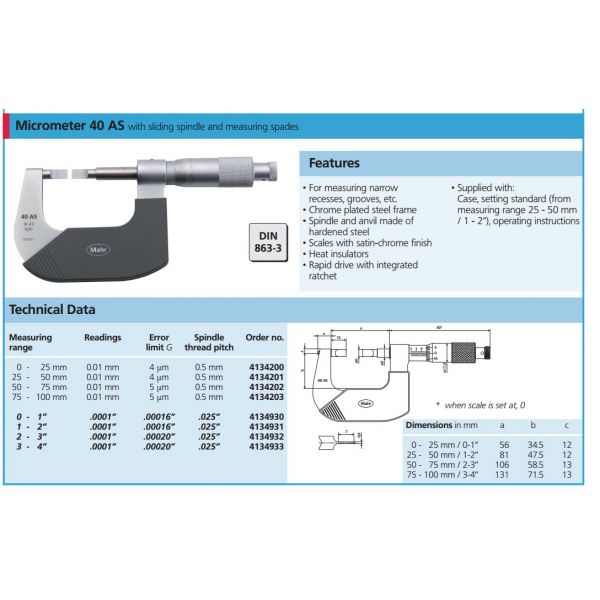

Mahr 40AS 4134200 Blade Micrometer has a measuring range of 0-25mm with 0.01mm Readings, 0.04mm Error Limit and 0.5mm Spindle thread pitch.
These micrometers feature a sliding spindle and measuring spades for measuring narrow recesses, grooves, etc. Hard lacquered steel frame for measuring ranges up to 50-75mm- 2-3".
The spindle and anvil are made of hardened steel and the scales have a satin-chrome finish. Also includes heat insulators, a rapid drive with integrated ratchet and a case.
Specifications
- Range: 0-25mm
- Graduation: 0.01mm
- Type: Mechanical, blade
- Accuracy: 0.004mm
- Graduation: 0.01 mm

Micrometer Range	25-50mm
Type of Micrometer	Mechanical Outside Micrometer
Select Micrometer Type	Spline Mechanical
Graduation	.01mm
Digital, Non-Digital	Non-Digital
Micrometer Series	40AB
Micrometer Accuracy	.004mm
Ratchet Type	Ratchet Stop
Additional Details	Code=4134101, Anvils=3mm, Length= 8.5mm

Product Information
Part Number	4134200
Measuring Ranges	0-25mm
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Display Type	Analogue
Type	Blade
Manufacturer	Mahr
