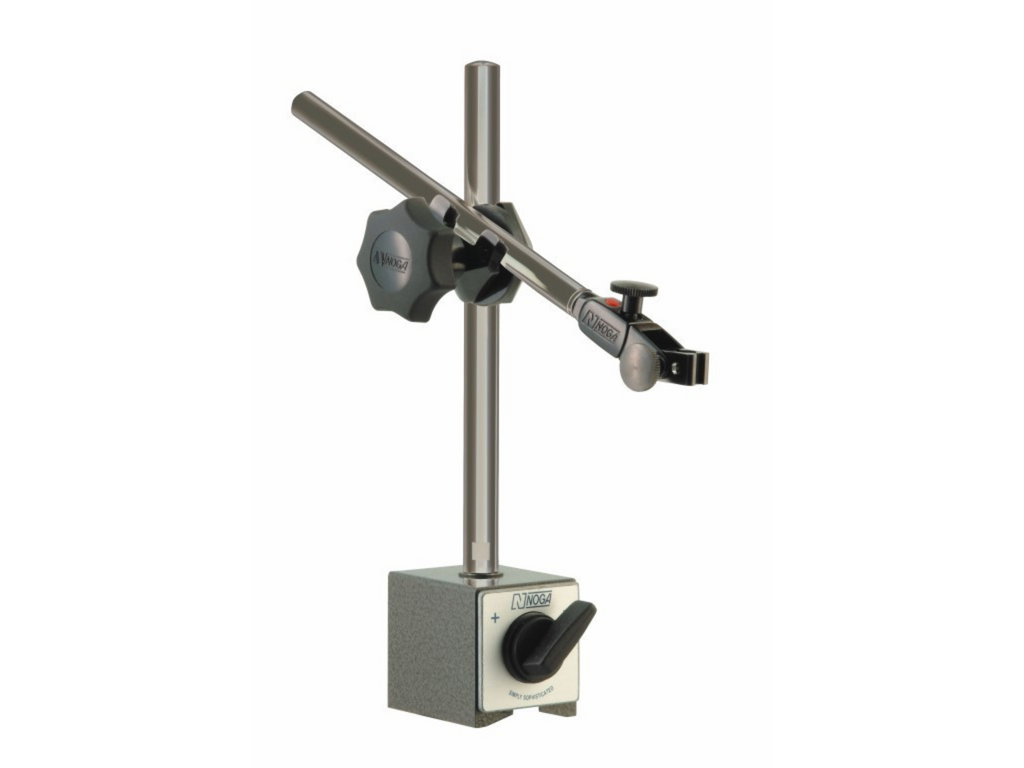

Noga Magnetic Stand PH6400
New Fine adjustment on the top with universal swivel clamp.
- Powerful on/off magnetic base.
- Strong arm lock by using the unique 3-point system.
- Easy to set up into required position

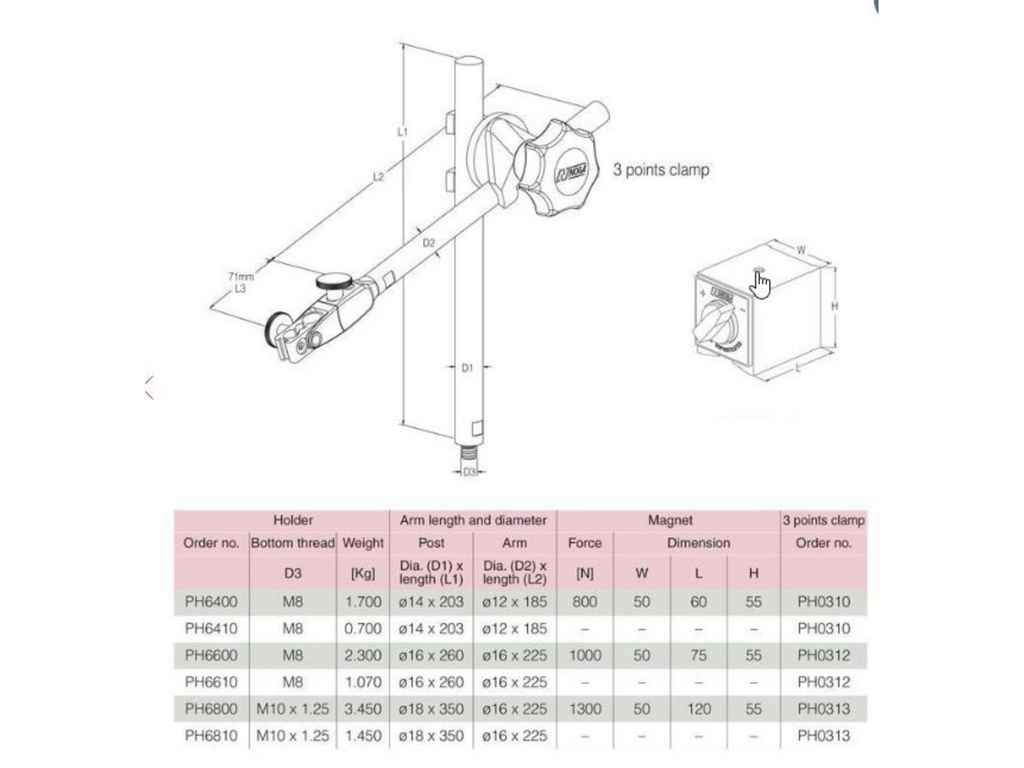

Features
- Clamp Holds: 6mm, 8mm,3/8"and dovetail
- Bottom thread: M8
- Weight: 1.70 Kg
- Post Length and diameter: Ø14 x 203mm
- Arm length and diamter: Ø12 x 185mm
- Magnet Force: 800 N
- Magnet Width: 50mm
- Magnet Length: 60mm
- Magnet Height: 55mm
