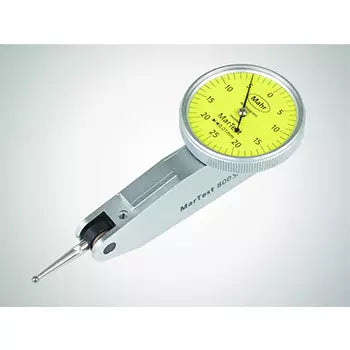

MarTest 800SA Lever-Type DTI 4301200 Measuring range mm ± 0.4mm x .01mm

Roll over image to zoom in Click on image to zoom

MarTest 800SA Lever-Type DTI 4301200 Measuring range mm ± 0.4mm x .01mm

Name: MarTest 800SA Lever-Type DTI 4301200 Measuring range mm ± 0.4mm x .01mm
Brand: Mahr
SKU: 4301200
Price: 97.34 GBP
Availability: InStock

MahrSKU: 4301200

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£97.34 £115.20

Quantity:

All prices exclude VAT, which will be added at checkout.

MarTest 800SA Lever-Type DTI 4301200

Specification

Measuring range ± 0.4mm
Product type 800 SA
Graduation value 0.01mm
Standard Factory standard
Figures on dial face 40-0-40
Range per rev. in 0.5 mm
Span of error fe (µm) 5 µm
Total span of error fges (µm) 8 µm
Measuring value hysteresis fu (µm) 3 µm
Partial measuring range ft (µm) 5 µm
Repeatability fw (µm) 3 µm
Measuring force 0.1 N
Scale diameter 28 mm

All images are for representation only.

Product Information
Part Number	4301200
Measuring Ranges	0.5mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	.01mm
Unit of Measurement	Metric
Measuring Force	0.15N
Tip Diameter Ø	2mm
Length	14.5mm
Repeatability	3µm
Dial Reading	40-0-40
Dial Face Size Ø	28mm
Hysteresis	.003mm
Stem Diameter	8mm
Manufacturer	Mahr
