Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5'', Force 0.15N Stylus Length .57''
Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5'', Force 0.15N Stylus Length .57''
Roll over image to zoom in Click on image to zoom
Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5'', Force 0.15N Stylus Length .57''Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5'', Force 0.15N Stylus Length .57''

Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5'', Force 0.15N Stylus Length .57''

MahrSKU: 4307960
List price: £171.45 Offer price: £144.88 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

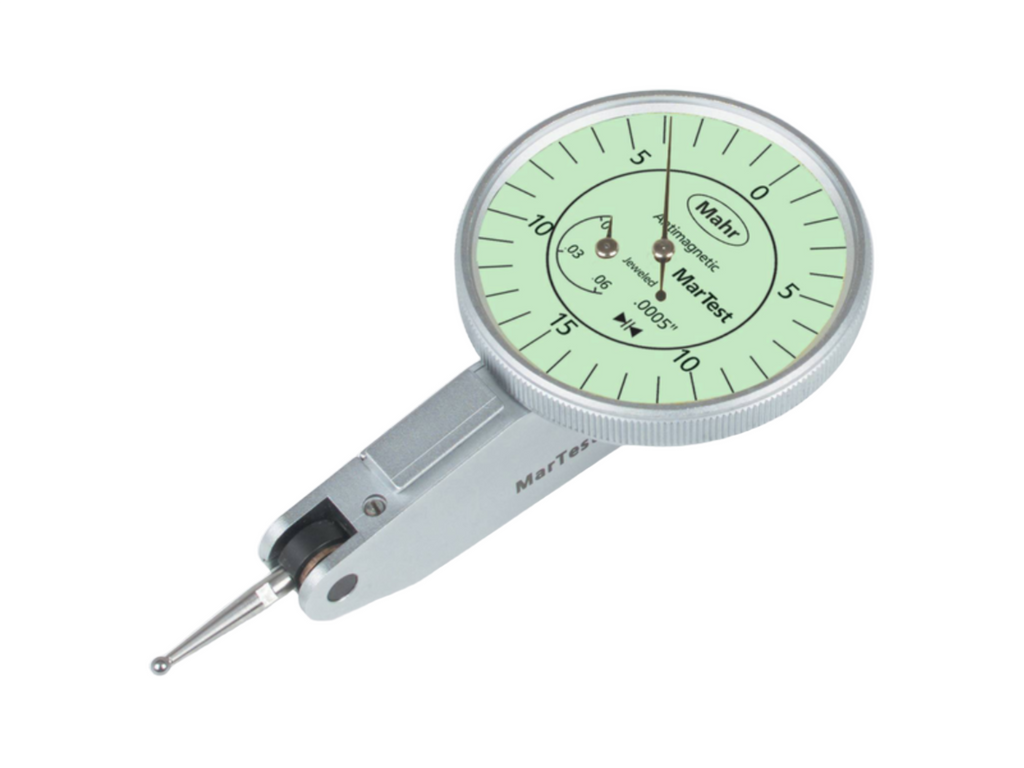

MarTest 801SR Lever-Type DTI 4307960

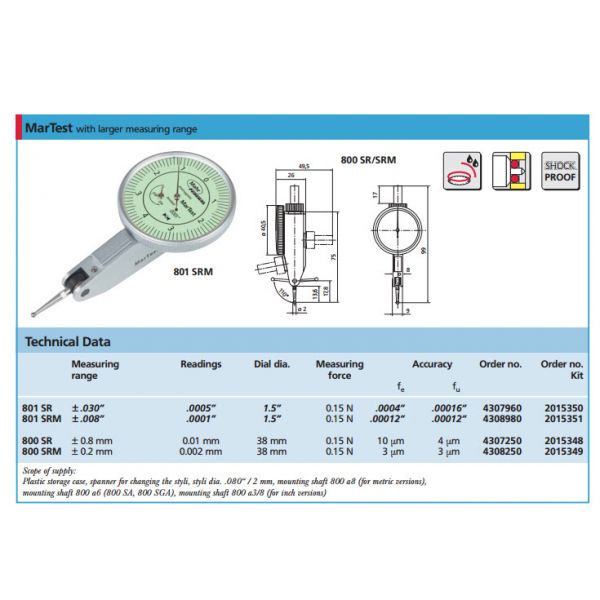

Specification

  • Product type 801 SR
  • Measuring range inches ± .030"
  • Standard Factory standard
  • Figure on dial face 15-0-15
  • Pointer rotation (inches) .03"
  • Deviation range fe (inches) .0004"
  • Total deviation range fges (inches) .0005"
  • Measuring value hysteresis fu (inches) .0002"
  • Partial measuring range ft (inches) .0002"
  • Repeatability fw (inches) .0001"
  • Measuring force 0.15 N
  • Scale diameter (inches) 1.5"

      No technical information is currently available.

      No application information is currently available.

      Product Documents

      Product Document Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5'', Force 0.15N Stylus Length .57'' Click to open the PDF document
