Wire Crimp Pull Test Sensor

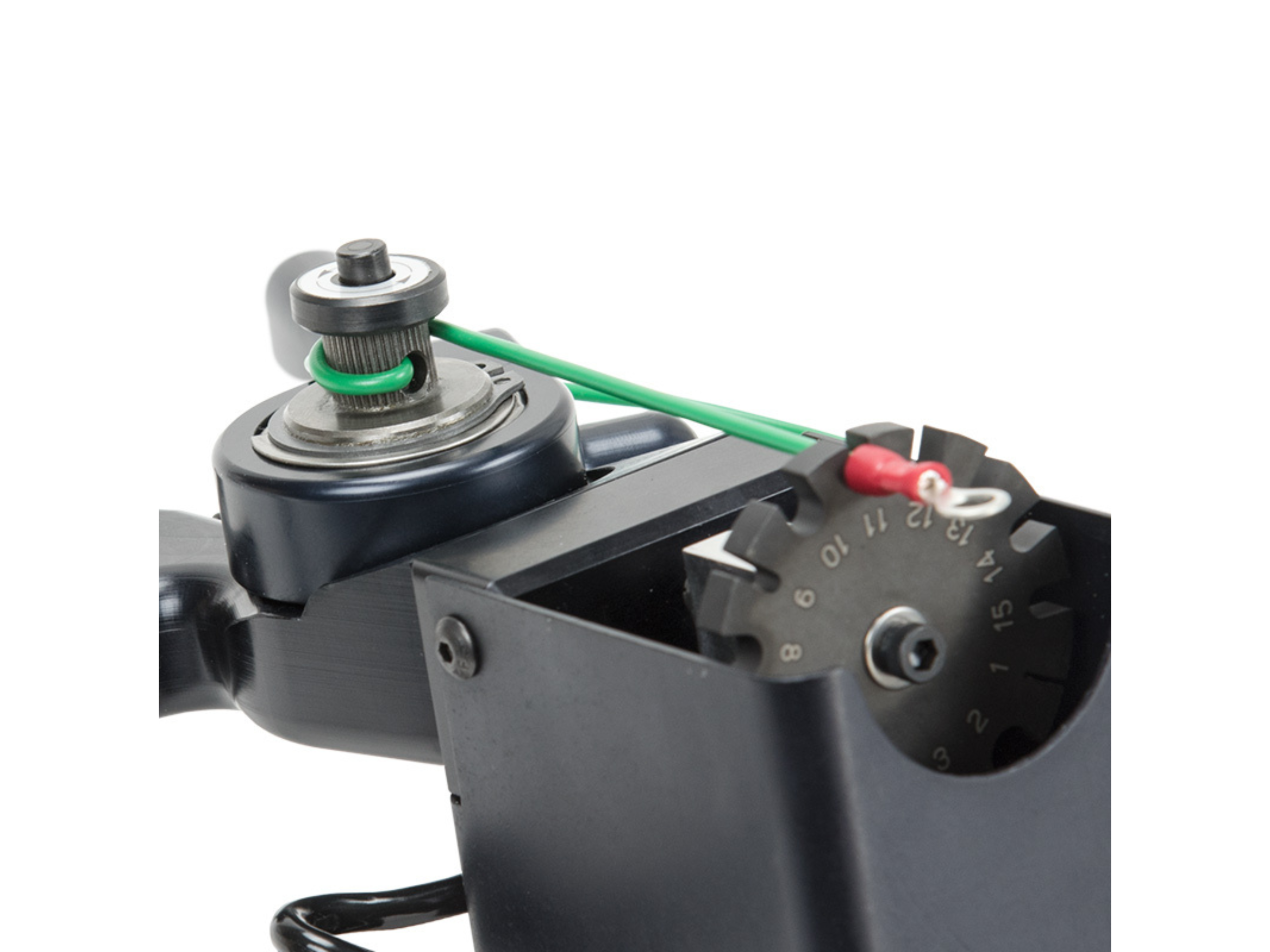

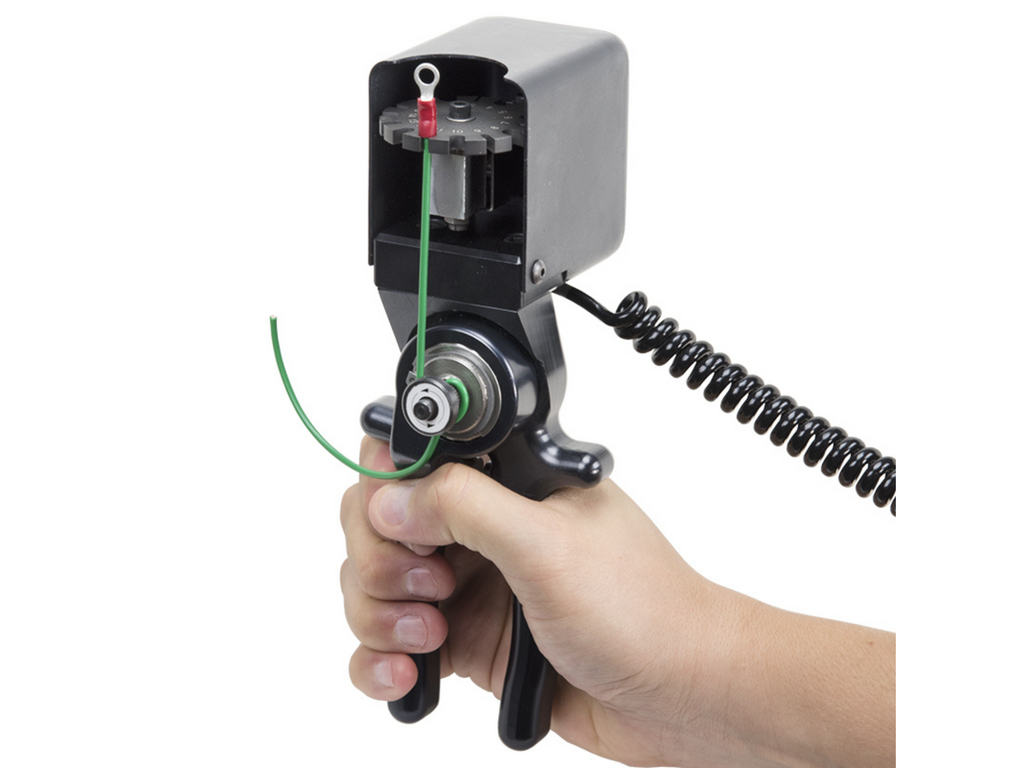

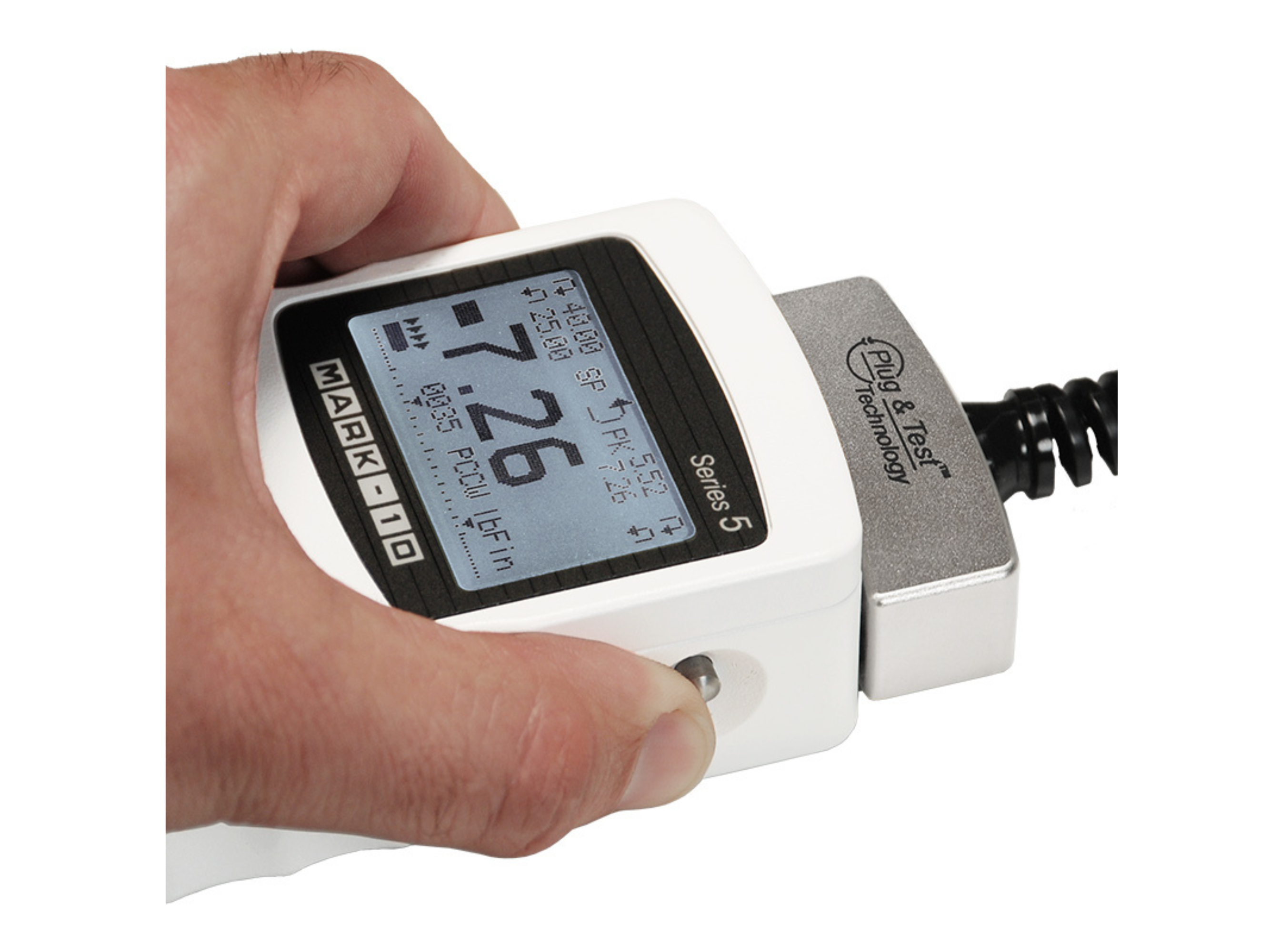

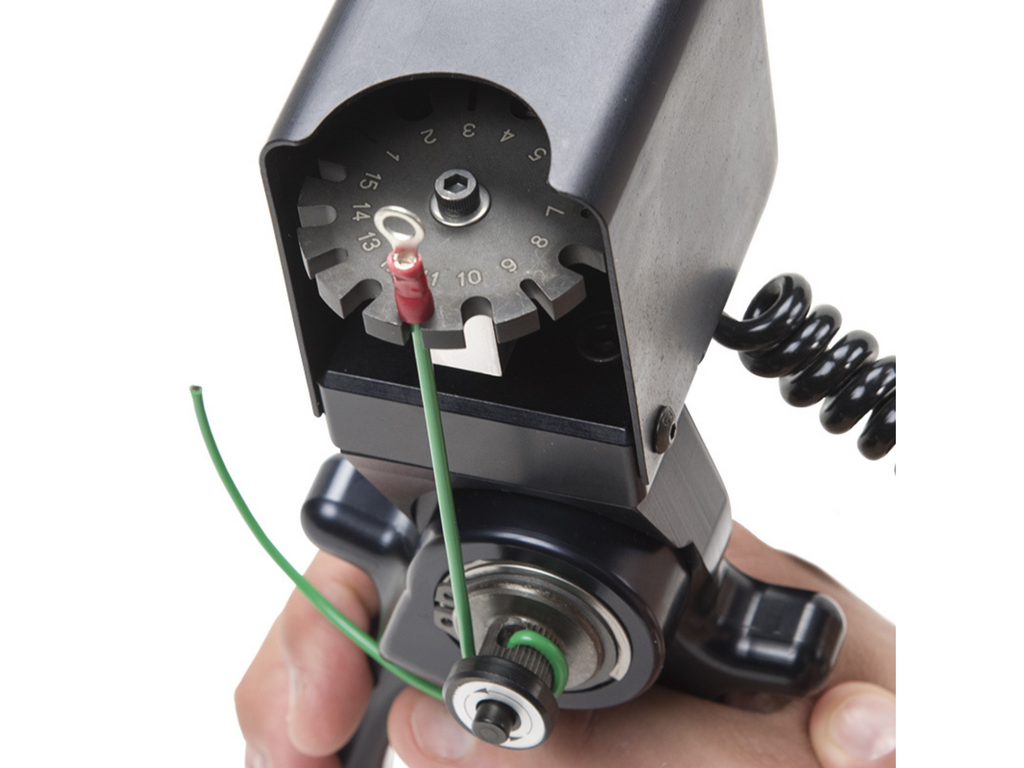

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).
Requires a Mark-10 indicator, available separately.
Features

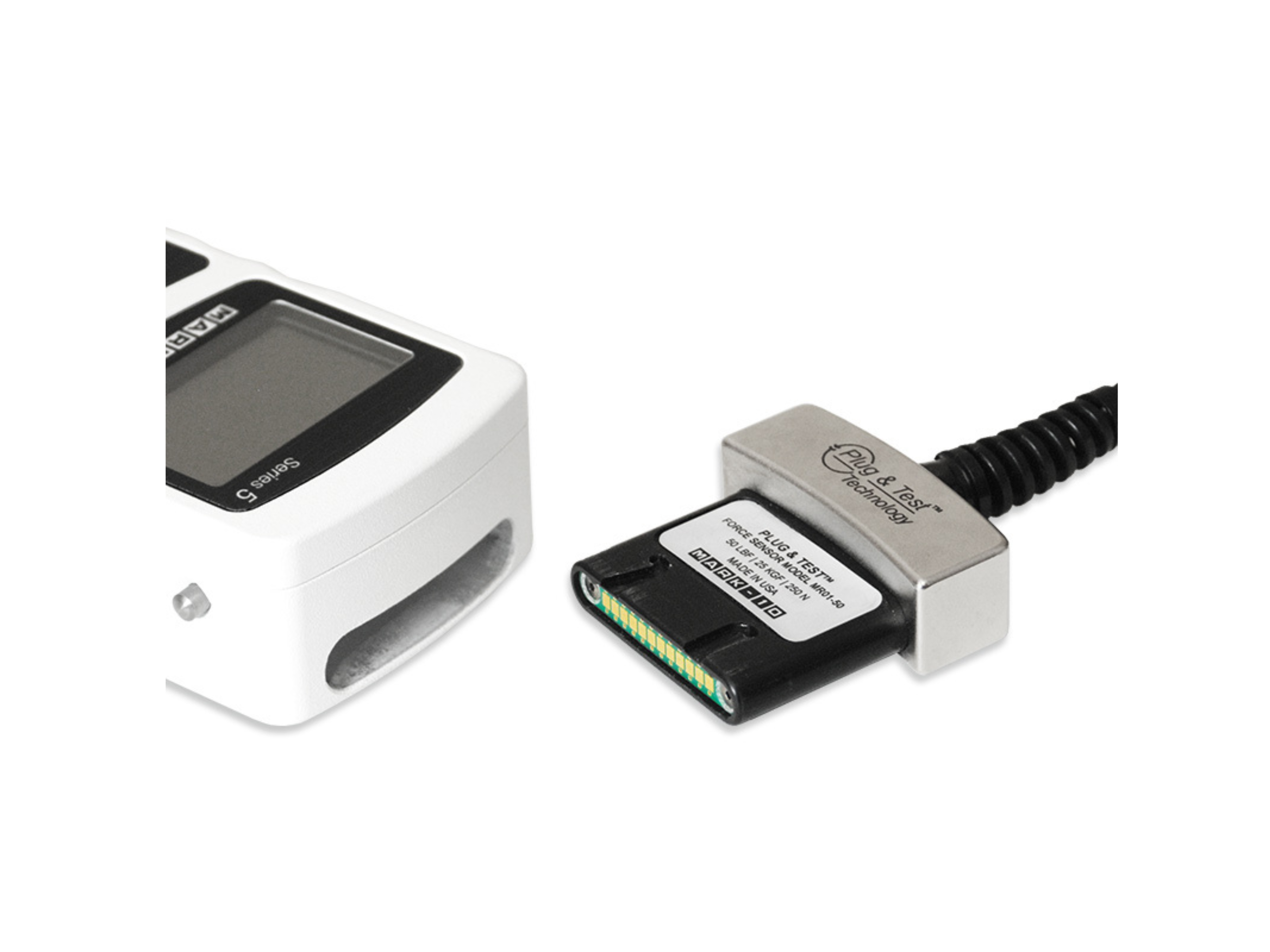

- Member of the Plug & Test® family of interchangeable sensors and indicators
- Ergonomic handles and convenient tensioning mechanism
- Measures pull forces
- NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
- Warranty: 3 years
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
