Wyler 155S200-113-050 Wyler Precision Engineers Level Dimensions : 200 x 40 x H: 42 mm Accuracy Inch : .0005"/10" Accuracy metric : .05mm/m Angular : 10 seconds, 60-6263

WylerSKU: 155S200-113-050

Price: Sale price £840.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

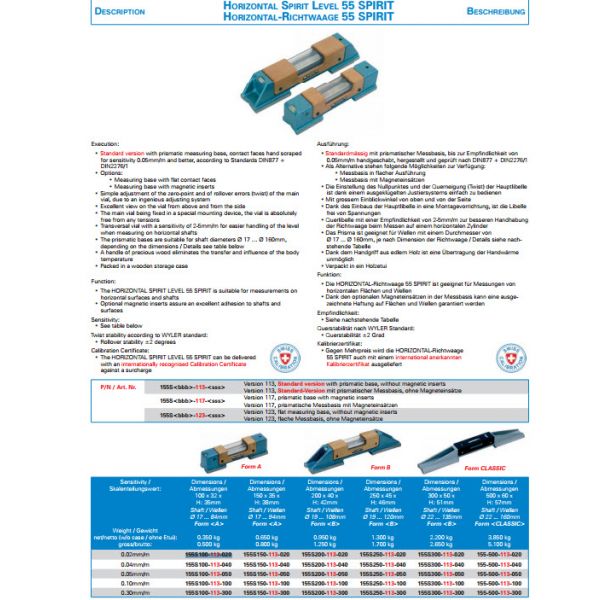

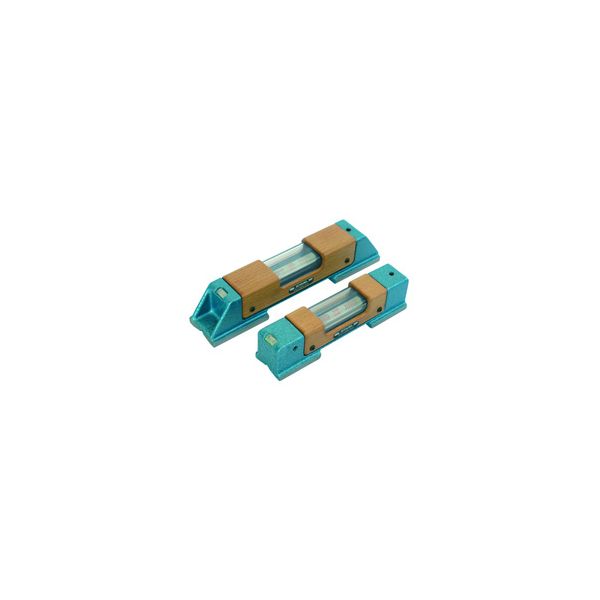

Wyler Levels
Execution:

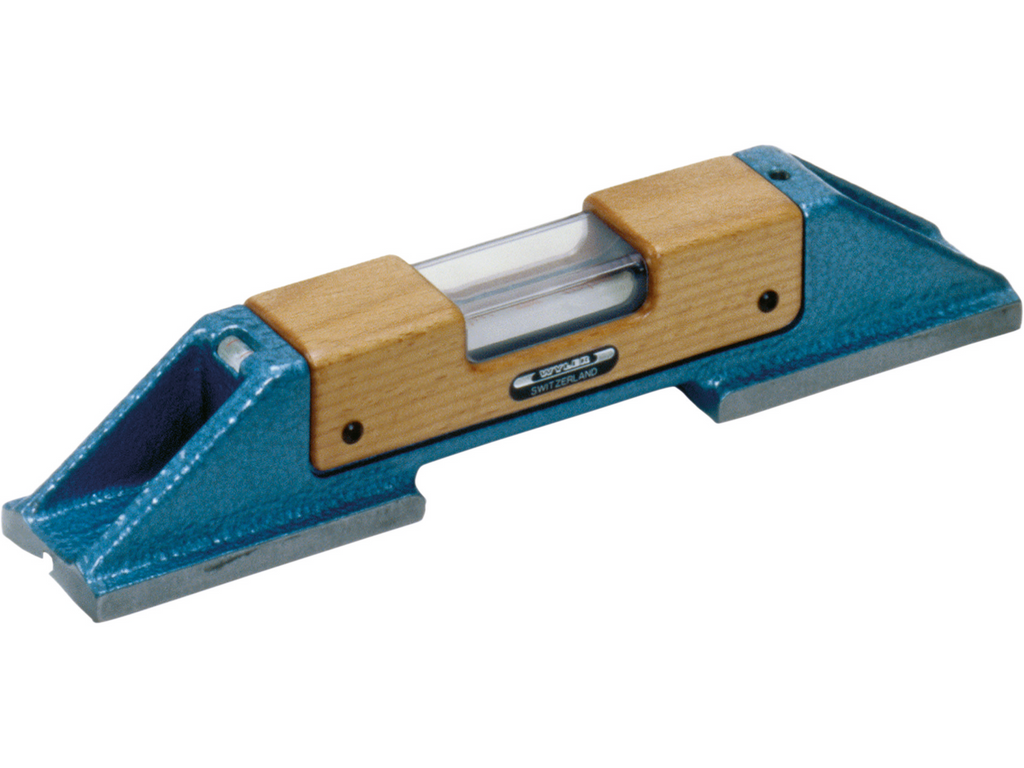

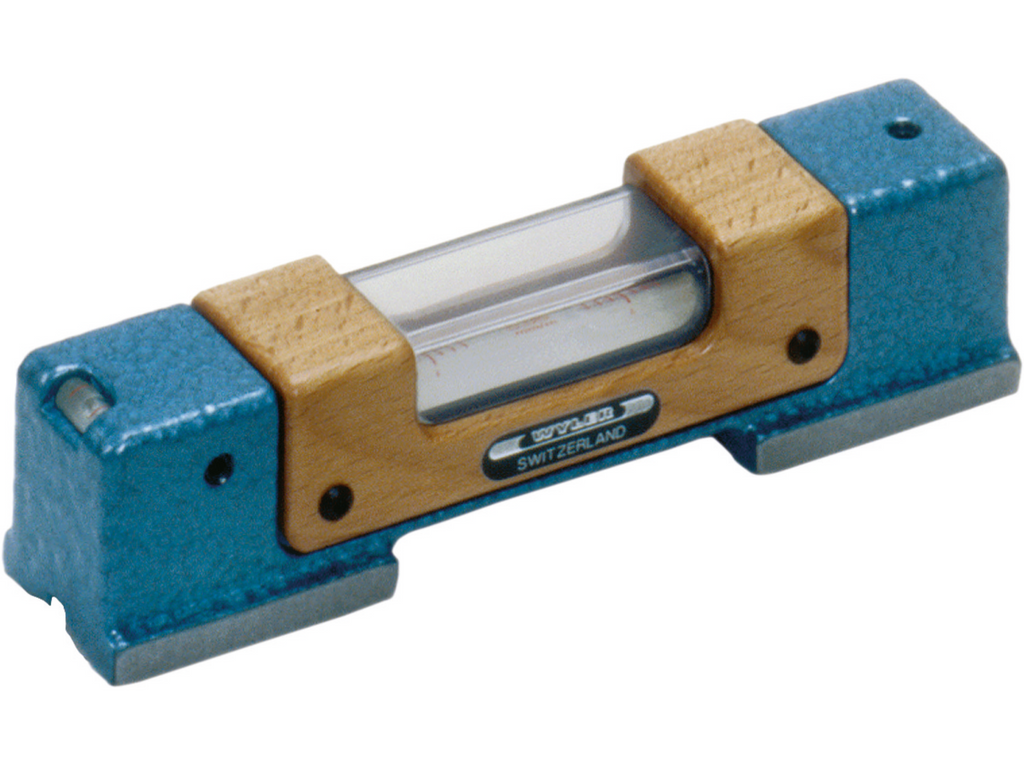

- Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
- Options:
- Measuring base with flat contact faces
- Measuring base with magnetic inserts
- Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
- Excellent view on the vial from above and from the side
- The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
- Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
- The prismatic bases are suitable for shaft diameters

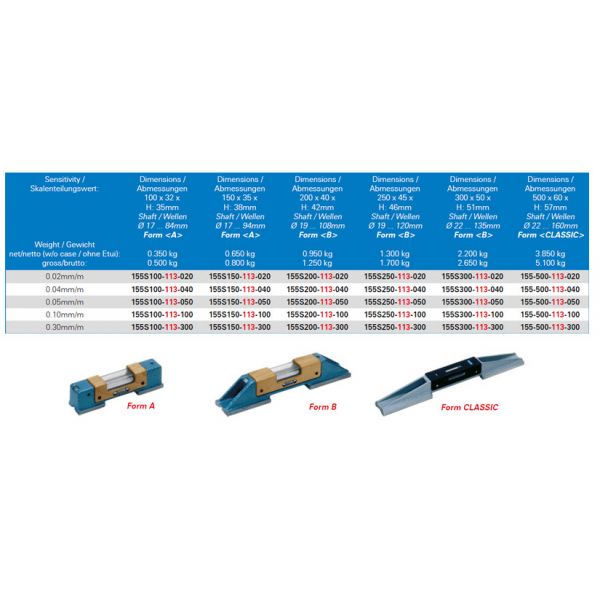

Wyler 155S200-113-050
Wyler Precision Engineers Level Dimensions : 200 x 40 x H: 42 mm
Accuracy Inch : .0005"/10"
Accuracy metric : .05mm/m
Angular : 10 seconds,
Bowers Code 60-6263



No technical information is currently available.

No application information is currently available.
