Wyler Levels
Execution:
- Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
- Options:
- Measuring base with flat contact faces
- Measuring base with magnetic inserts
- Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
- Excellent view on the vial from above and from the side
- The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
- Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
- The prismatic bases are suitable for shaft diameters
Execution:
- Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
- Options:
- Measuring base with flat contact faces
- Measuring base with magnetic inserts
- Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
- Excellent view on the vial from above and from the side
- The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
- Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
- The prismatic bases are suitable for shaft diameters

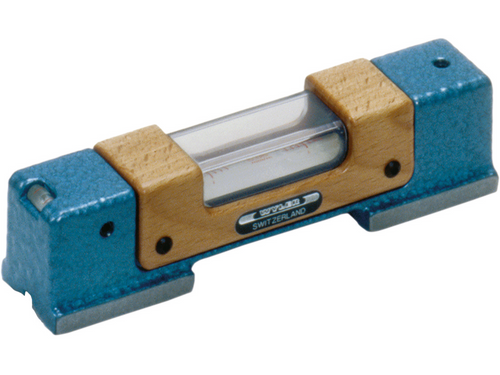

Wyler 155S200-113-100
Wyler Precision Engineers Level Dimensions : 200 x 40 x H: 42 mm
Accuracy Inch : .001"/10"
Accuracy metric : .1mm/m
Angular : 20 seconds
Bowers 60-6264,
Fowler 53-422-525-0
No technical information is currently available.
No application information is currently available.
