Bowers XT Analogue Bore Gauge Set 50-100mm SXTA6M

Roll over image to zoom in Click on image to zoom

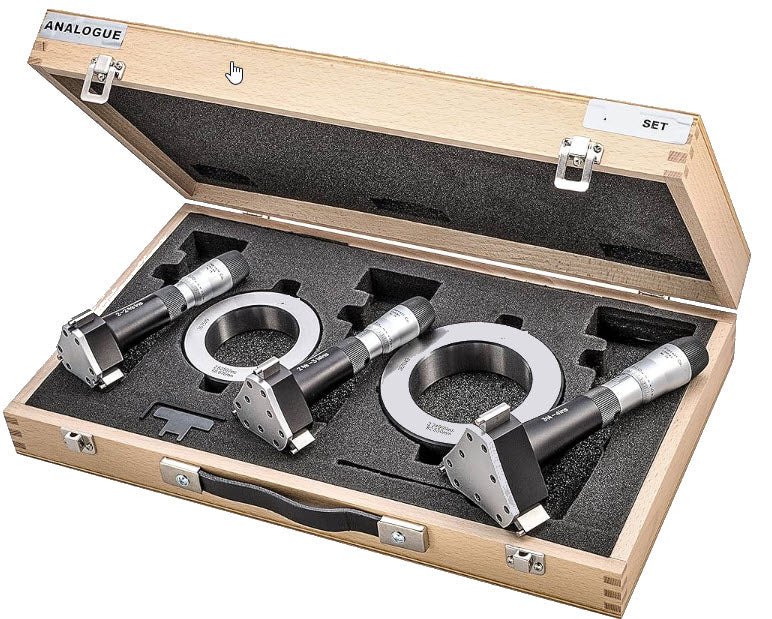

Bowers XT Analogue Bore Gauge Set 50-100mm SXTA6M

Name: Bowers XT Analogue Bore Gauge Set 50-100mm SXTA6M
Brand: Bowers
SKU: SXTA6M
Price: 1388.0 GBP
Availability: InStock

BowersSKU: SXTA6M

All prices exclude VAT, which will be added at checkout.

Price:

£1,388.00 £1,771.00

Quantity:

BOWERS XT ANALOGUE BORE GAUGE SET METRIC

The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification.

Range 2-300mm (0.080"-12")
2-6mm 2 point / 6-300mm 3 point measurement
Graduation 2-6mm: 0.001mm, 6-300mm: 0.005mm
Tungsten carbide measuring faces on all 3-point heads from 12.5mm
Blind bore measurement from 2mm-6mm and above 12.5mm (0.500")
Extensions available above 6mm for deep hole measurement
Ratchet stop to ensure consistent measurement
Setting rings included with individual instruments and sets
UKAS certificates supplied as standard with all setting rings
UKAS certificate supplied as standard with all XT mechanical micrometers
Serial number on all gauges
Bore gauges manufactured according to DIN 863, part 4
Supplied in fitted case

All images are for representation only.

Product Information
Part Number	SXTA6M
Measuring Ranges	50-100mm
Graduation	.005mm
Accuracy	+/-.006mm
Unit of Measurement	Metric
Display Type	Analogue
Type	Bowers XT
Setting Rings	65mm, 80mm
Anvils	3 Point Micrometers
Product Description	Bowers 3 Point Micrometer
Manufacturer	Bowers
