XT3 Digital Bore Gauge Set With Bluetooth 20-50mm SXTD5M-BT
Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage
FEATURES
- New ergonomic design with larger and clearer LCD display
- IP67 electronics
- Simple 2-button operation
- 4 pre-set memories
- Proximity output with optional built-in Bluetooth
- Bi-directional communication
- RS-232C output
- Range 2-300mm (0.080”-12”)
- 2-6mm 2 point/ 6-300mm 3 point measurement
- Resolution 0.001mm/0.00005”
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
- Extensions available above 6mm for deep hole measurement
- Ratchet stop to ensure consistent measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings
- UKAS certificates supplied as standard with all gauges
- Serial number on all digital readouts and measuring heads
- Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
- Bore gauges manufactured according to DIN 863, part 4

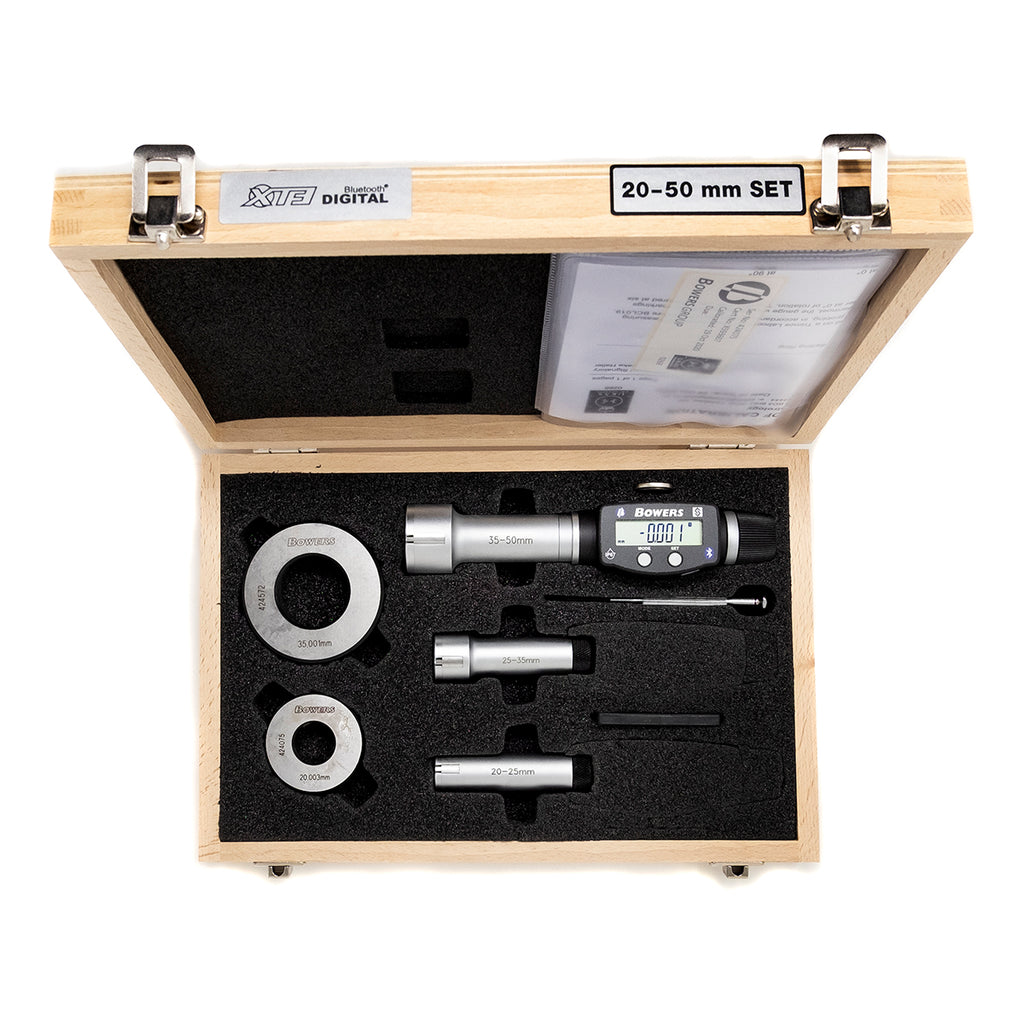

- Supplied in fitted wooden case
All images are for representation only.
