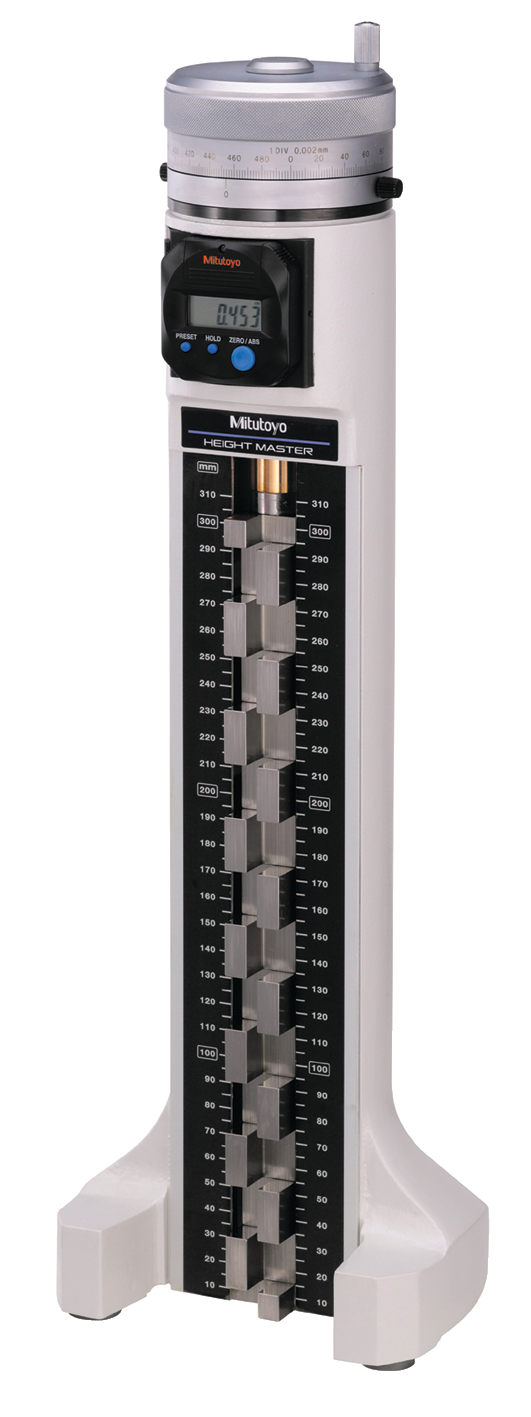

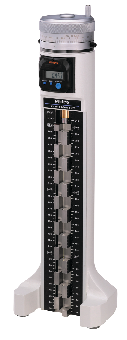

DescriptionThis is a standard model with a digital display, that offers you the following benefits:

It gives you all the essential specifications required for a versatile height standard.
You can use it to calibrate and set height gauges and other measuring instruments.
Models have two measuring faces on the same level, one facing up and the other down.

Range:	10 - 310 mm
Graduation:	0.002 mm
Inch-Metric:	Metric
Digital step:	0,001 mm
Block step:	20 mm staggered
Feed error:	±2 µm
Retrace error:	2 µm
Micrometer adjustment:	20 mm
Micrometer feed:	0.5 mm
Block pitch accuracy:	Range ≤ 310 mm : ±1.5 µm 310 < range ≤ 450 mm: ±2.5 µm 450 < range ≤ 610 mm: ±3.5 µm
Parallelism of blocks:	Range ≤ 310mm: 2µm 310 < range ≤ 610mm: 2.5 µm
Battery life:	Approx. 1,8 years
DATA (output with cable) / HOLD (display value):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Data output:	Yes
PRESET:	Yes
ABS / INC (INC ZERO):	Yes
Delivered:	In a wooden case with certificate of inspection, 11 mm gauge block, SR-44 battery
Mass:	9.5 kg
