2-Point Inside Measuring Instrument Range 7-10mm Graduation .001mm 526-124

Roll over image to zoom in Click on image to zoom

2-Point Inside Measuring Instrument Range 7-10mm Graduation .001mm 526-124

Name: 2-Point Inside Measuring Instrument Range 7-10mm Graduation .001mm 526-124
Brand: Mitutoyo
SKU: 526-124
Price: 312.0 GBP
Availability: InStock

MitutoyoSKU: 526-124

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£312.00 £428.00

Quantity:

All prices exclude VAT, which will be added at checkout.

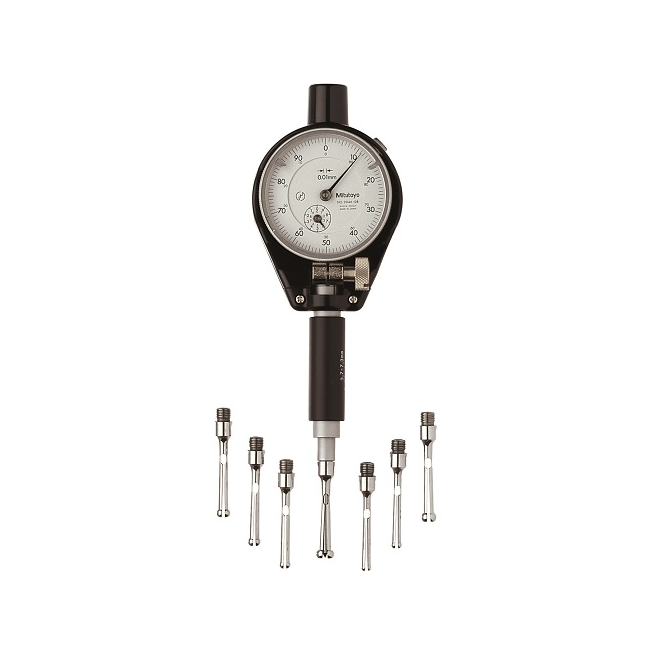

This is a two point split contact point ideally suited to smaller bore measurements.
It offers you the following benefits:

A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm).
You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need.
The contact point is hard chrome coated.

Product Information
Part Number	526-124
Measuring Ranges	7-10mm
Graduation	.001mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Display Type	Analogue
Items Per Set	6
Type	Extra Small Hole Bore Gauge
Repeatability	.002mm
Setting Rings	None in set
Anvils	6pcs
Manufacturer	Mitutoyo

Inch-Metric:	Metric
Digital/Analog:	Analog
Range:	7 - 10 mm
Graduation:	0.001mm
Accuracy:	4 µm
Repeatability:	2 µm
Measuring depth:	40-56 mm ⁽²⁾
No. Dial Indicator:	2109AB-10
Number of anvils:	6
Delivered:	In a box, with dial indicator and cover for dial indicator, without setting ring
Mass:	300 g
