Mitutoyo 3-Point Internal Micrometer Holtest Set 2-4" (4 pcs.) 368-997

MitutoyoSKU: 368-997
List price: £2,780.00 Offer price: £2,029.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

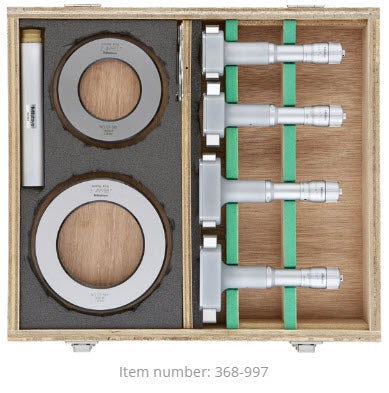

A Mitutoyo internal micrometer set consisting of individual gauges, the appropriate setting rings and an extension tube for depth measurement applications. Contact surfaces made of hardened steel. A ratchet guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
2 - 4 "
Graduation:
? 0,5": 0,0001", >0,5": 0,0002"
Individual ranges:
2-2.5", 2.5-3", 3-3.5", 3.5-4"
Scale:

Thimble and sleeve satin chrome finish,
Up to 12 mm : Ø 17 mm
Over 12 mm : Ø 23 mm
Measuring spindle:
Spindle pitch 0,635 mm
Measuring face:
Hardened steel
taper: hardened steel
Measuring method:
3-point
Models included:

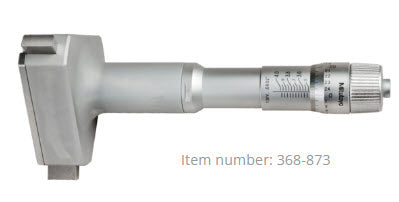

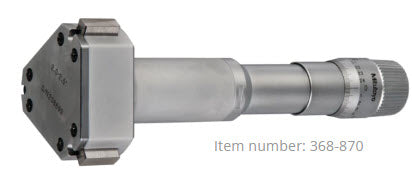

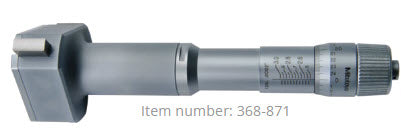

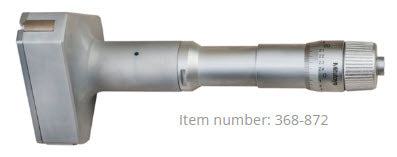

368-870 / 368-871 / 368-872 / 368-873
Setting rings included:
ø2.5" (177-315)
ø3.5" (177-319)
Delivered:

Including box, key, setting ring, extension rod, certificate of inspection (measuring instruments only)
Delivered:
Including box, spanner (2 pcs.), hex wrench, certificate of inspection, setting rings (2 pcs.), extension rod
Mass:
2080 g

No technical information is currently available.

No application information is currently available.
