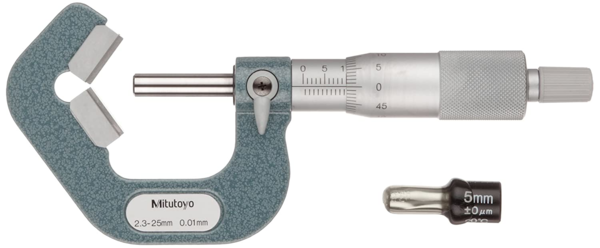

Mitutoyo 5 Flute V-Anvil Micrometer 2,3-25mm 114-137

Name: Mitutoyo 5 Flute V-Anvil Micrometer 2,3-25mm 114-137
Brand: Mitutoyo
SKU: 114-137
Price: 312.2 GBP
Availability: InStock

MitutoyoSKU: 114-137

All prices exclude VAT, which will be added at checkout.

Price:

£312.20 £446.00

Quantity:

This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	2.3 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	Without groove
Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Setting standard:	167-327 ø 5 mm
Delivered:	Including box, setting standard, key
Mass:	220 g
