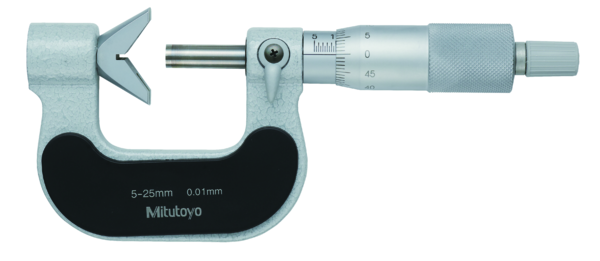

Mitutoyo 5 Flute V-Anvil Micrometer 5-25mm 114-121

Roll over image to zoom in Click on image to zoom

Mitutoyo 5 Flute V-Anvil Micrometer 5-25mm 114-121

Name: Mitutoyo 5 Flute V-Anvil Micrometer 5-25mm 114-121
Brand: Mitutoyo
SKU: 114-121
Price: 287.7 GBP
Availability: InStock

MitutoyoSKU: 114-121

All prices exclude VAT, which will be added at checkout.

Price:

£287.70 £411.00

Quantity:

Mitutoyo; 5 Flute Micrometer

A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 5-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	114-121
Measuring Range	5-25mm
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Measuring Force	5-10N
Type	V-Anvil
Constant Force Device	Ratchet Stop

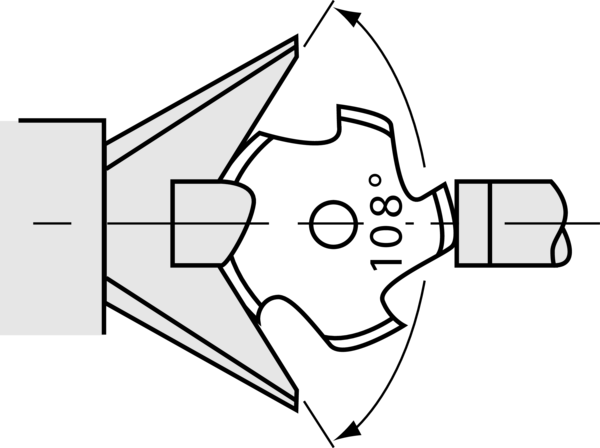

Anvils & Spindle Design	Anvil is 108 degrees Carbide on spindle
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	5 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	With groove
Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Setting standard:	167-327 ø 5 mm
Mass:	255 g
