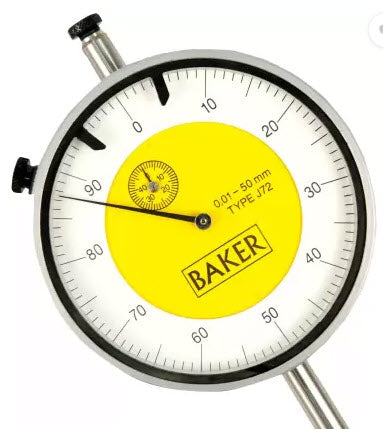

Baker (Mercer Style) Plunger indicator J72, Range 50mm, Graduation .01mm, Reading 0-100, Face 88mm

Name: Baker (Mercer Style) Plunger indicator J72, Range 50mm, Graduation .01mm, Reading 0-100, Face 88mm
Brand: Baker
SKU: J72
Price: 95.0 GBP
Availability: InStock

BakerSKU: J72

All prices exclude VAT, which will be added at checkout.

Price:

£95.00 £140.00

Quantity:

- A sturdy and robust dial gauge.
- Fitted with special brass bush bearings.
- Supplied with tolerance pointers.
- Strong and smooth metal bezel.
- Rigid, metal case.
- Aesthetically appealing protective top cap.
- Tungsten carbide ball anvil.
- Metric gauges conform to IS2092-1983 and for the European market to DIN878-1983.
- Inch gauges conform to ASME B89.1.10M-2001.
- Each gauge carries a calibration certificate giving actual values.
- Wide range of dial gauges in various ranges and readings available.
- Special dial gauges for OEMs also manufactured on request.
- Complete spares and after sales service available.
Baker (Mercer Style) Plunger indicator J72, Range 50mm, Graduation .01mm, Reading 0-100 Face 88mm

Product Information
Part Number	J72
Measuring Range	50mm
Graduation	.01mm
Accuracy	.03mm
Unit of Measurement	Metric
Measuring Force	≤3N
Repeatability	.005mm
Dial Reading	0-100
Dial Face Size Ø	88mm
Hysteresis	.005mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1mm
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	50 mm
Range per rev.:	1 mm
Dial reading:	0-100
Graduation:	0.01 mm
Measuring force:	3 N
MPE any 1/10 revolution:	10 µm
MPE any 1/2 revolution:	12 µm
MPE any 1 revolution:	15 µm
Over all measuring range accuracy:	30 µm
H MPE (Hysteresis):	8µm
R MPE (Repeatability):	5 µm
Mass:	200 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
