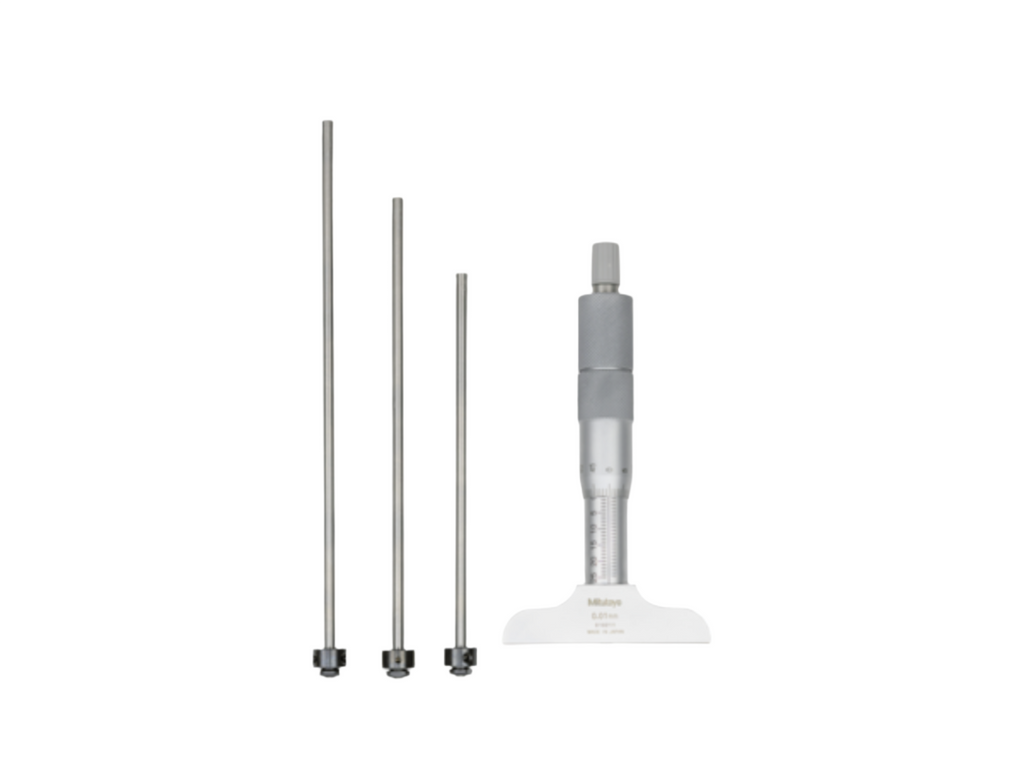

Mitutoyo Depth Micrometer 0-100mm 63mm Base 129-111

Mitutoyo Depth Micrometer 0-100mm 129-111

Features

• Digital/Analog: Analog
• Graduation: 0,01 mm
• Inch-Metric: Metric
• Measuring span: 25 mm
• Spindle pitch: 0,5 mm
• Micrometer Head Feed (0-25 mm): ±3 µm
• Zero point errors of rods: ±3 µm
• Flatness base: 1.3 µm
• Flatness rod: 0,3 µm
• Parallelism base/rod: 6 µm
• Measuring face: Hardened, precision ground, micro-lap finish
• Base: Hardened tool steel
• Number of rods: 4
• Scale: Thimble and sleeve satin chrome finish ∅18 mm
• Measuring force: 5-10 N
• Mass: 310 g
• Delivered: Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863

All images are for representation only.
