MitutoyoSKU: 129-116
List price: £289.00 Offer price: £211.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

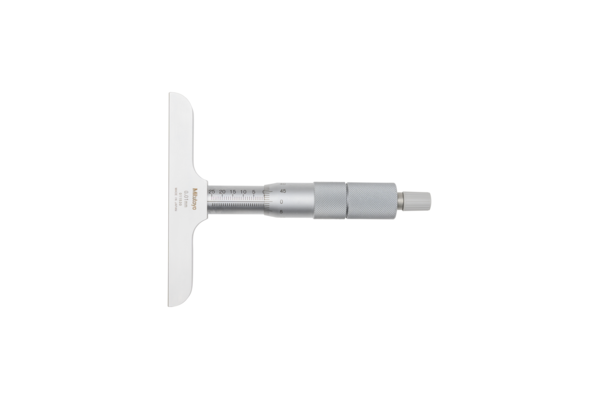

A Mitutoyo non-digital depth micrometer using interchangeable measuring rods to cover a wide measuring range. The 100mm base is made from tool steel, hardened and ground with a micro-lapped reference surface.

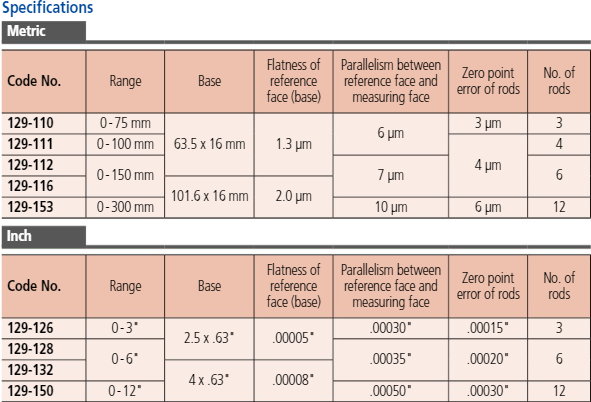

Specification
Digital/Analog:
Analog
Graduation:
0,01 mm
Inch-Metric:
Metric
Measuring span:
25 mm
Spindle pitch:
0,5 mm
Micrometer Head Feed (0-25 mm):
±3 µm
Zero point errors of rods:
±4 µm
Flatness base:
2 µm
Flatness rod:
0,3 µm
Parallelism base/rod:
7 µm
Measuring face:
Hardened, precision ground, micro-lap finish
Base:
Hardened tool steel

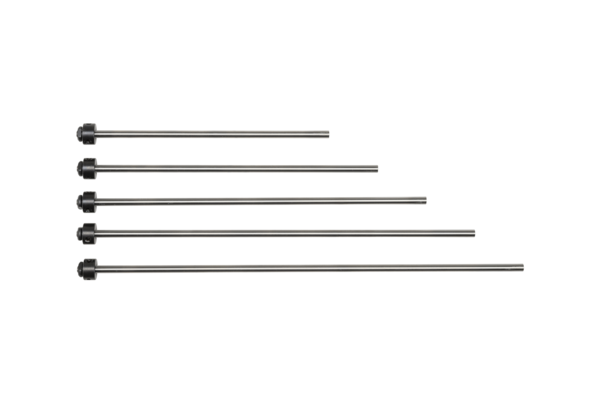

Number of rods:
6
Scale:
Thimble and sleeve satin chrome finish ?18 mm
Measuring force:
5-10 N

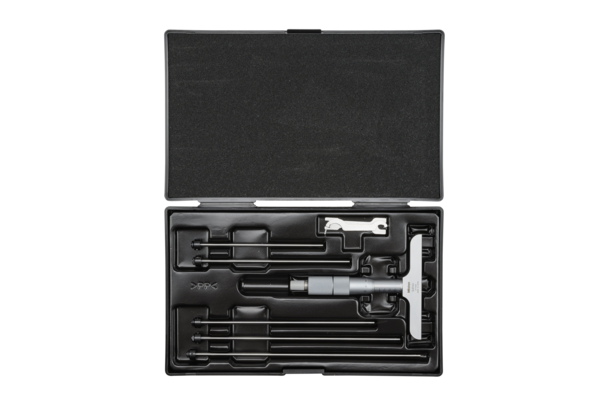

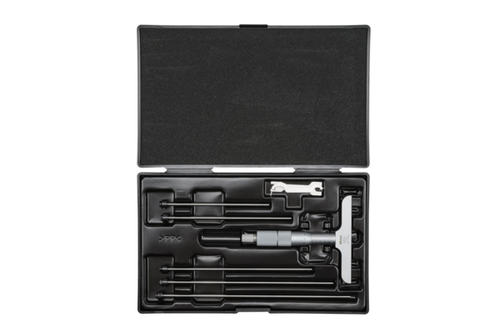

Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863
Mass:
410 g
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863

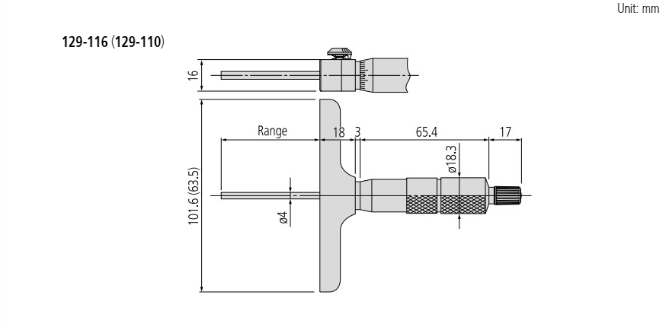

Dimensions

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Depth Micrometer, Interchangeable Rods 0-150mm, 101mm Base 129-116 Click to open the PDF document
