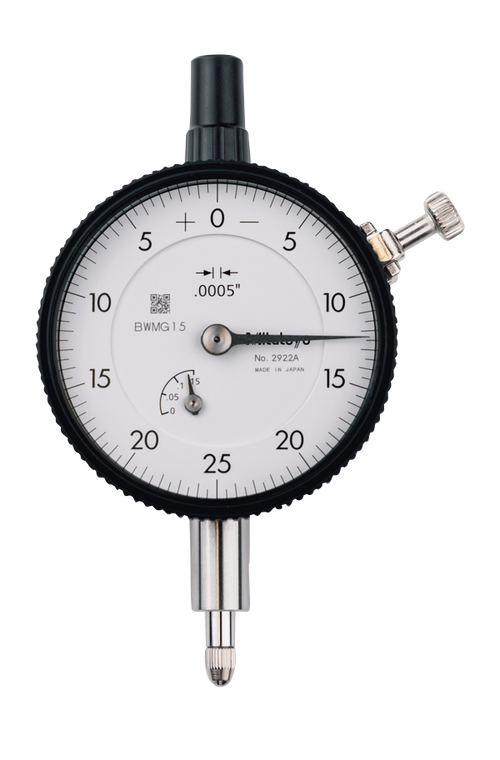

Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922S
Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922S
Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922S
Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922S
Roll over image to zoom in Click on image to zoom
Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922SDial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922SDial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922SDial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922S

Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922S

MitutoyoSKU: 2922S
List price: £95.10 Offer price: £65.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

This is a standard, inch dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
0,125 "
Range
per rev.:
0,05"
Graduation:
0,0005"
Accuracy:
±0,0005"
H MPE (Hysteresis):
0,00016"
R MPE (Repeatability):
±0,0001"
Error of indication one revolution:
±0,0005"
MPE first one revolution:
±0,0005"
MPE first 2 1/2 revolutions:
±0,0005"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,8 N
Mass:
164 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Balanced dial:
Yes
Continuous dial:
Yes
Dimensions

No technical information is currently available.

No application information is currently available.
