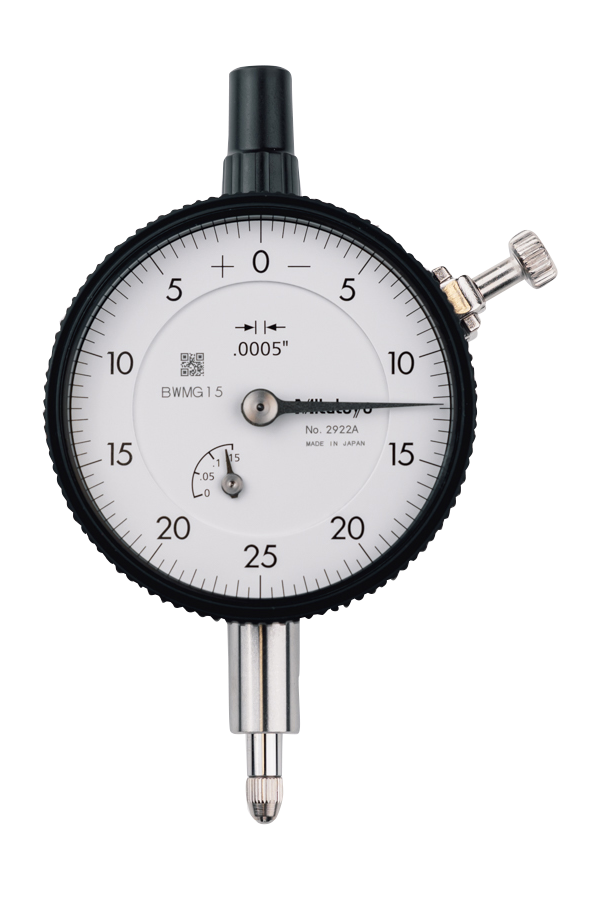

Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922A

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922A

Name: Dial Gauge, Lug Back, ANSI/AGD Type 0,125", 0,0005" 2922A
Brand: Mitutoyo
SKU: 2922A
Price: 63.98 GBP
Availability: InStock

MitutoyoSKU: 2922A

All prices exclude VAT, which will be added at checkout.

Price:

£63.98 £91.40

Quantity:

Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

This is a standard, inch dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2922A
Measuring Range	0.125"
Graduation	.0005"
Accuracy	.0005"
Unit of Measurement	Inch
Measuring Force	≤1.8N
Type	Lug Back
Repeatability	±.0001"
Dial Reading	0-25-0
Dial Face Size Ø	57mm
Hysteresis	.00016"
Stem	9.52mm/3/8"
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	.05"
Scale	0-25-0
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,125 "
Range per rev.:	0,05"
Graduation:	0,0005"
Accuracy:	±0,0005"
H MPE (Hysteresis):	0,00016"
R MPE (Repeatability):	±0,0001"
Error of indication one revolution:	±0,0005"
MPE first one revolution:	±0,0005"
MPE first 2 1/2 revolutions:	±0,0005"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
