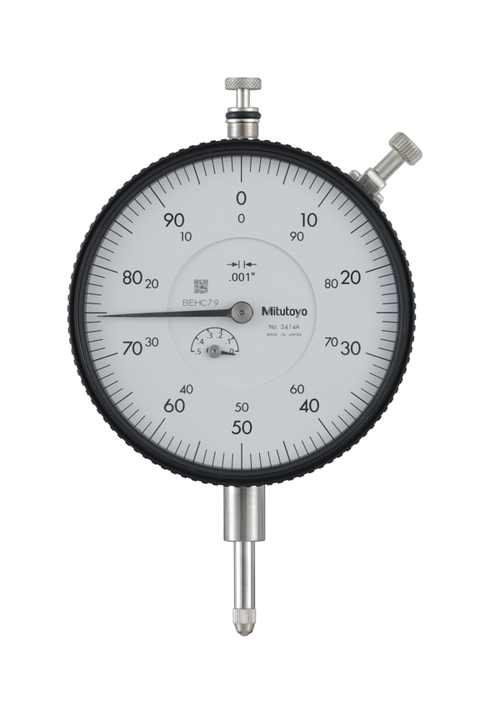

Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"
Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"
Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"
Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"
Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"
Roll over image to zoom in Click on image to zoom
Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"

Dial Gauge, Lug Back, ANSI/AGD Type 0,5", 0,001" 3414S Face Diameter 3.07"

MitutoyoSKU: 3414S
List price: £163.00 Offer price: £119.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This is a standard, inch dial indicator. It offers you the following benefits:
  • Large-diameter dial face ø = 78 mm for easy reading
  • Supplied with limit markers and a bezel clamp as standard
  • 0,001" / 0,0001" graduation
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
With certificate of inspection, bezel clamp
Range:
0,5 "
Range
per rev.:
0,1"
Graduation:
0.001"
Accuracy:
±0.001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
Error of indication one revolution:
±0.001"
MPE first one revolution:
±0,001"
MPE first 2 1/2 revolutions:
±0,001"
MPE > 2 1/2-10 revolutions:
±0,001"
Type:
ANSI/AGD Standard
Measuring force:
0,4-1,8 N
Mass:
259 g
Stem:
9.52 mm / 0.375"
Contact point:
Carbide tipped, thread: 4-48UNF
Continuous dial:
Yes

No technical information is currently available.

No application information is currently available.
