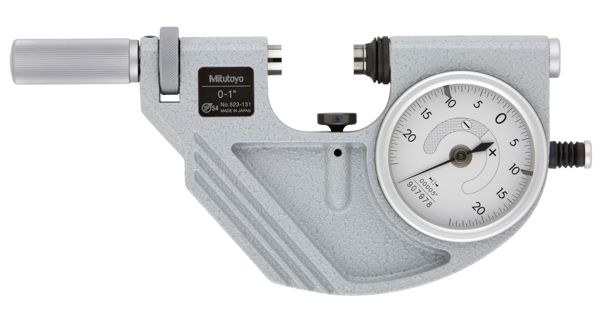

Name: Dial Snap Meter 0-1" 523-131
Brand: Mitutoyo
SKU: 523-131
Price: 453.0 GBP
Availability: InStock

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MMi-8 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£492.00 Part number: 516-106-10 → View product

Optical Parallels Set, Metric 0-25mm 157-903 +£347.00 Part number: 157-903 → View product

Mitutoyo 04AZA124 Workpiece Stopper 510 style Micrometer 23mm +£12.00 Part number: 04AZA124 → View product

Mitutoyo 04AZA125 Workpiece Stopper Indicating Micrometer 20.5mm +£12.00 Part number: 04AZA125 → View product

Mitutoyo 04AZA126 Workpiece Stopper Indicating Micrometer 15mm +£12.00 Part number: 04AZA126 → View product

Digital/Analog:	Analog

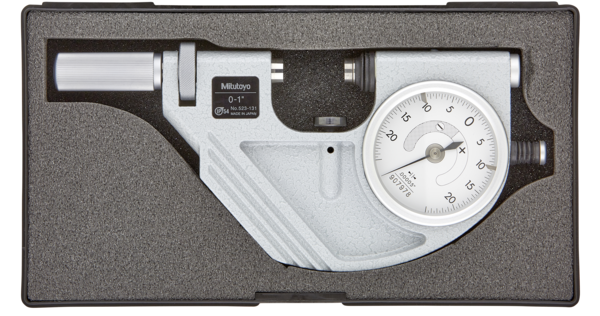

Delivered:	Including box, workpiece rest
Inch-Metric:	Inch
Range:	0 - 1 "
Graduation:	0,00005"
Indicating range:	±0.002"
Anvil retracting stroke:	2 mm
Accuracy dial comparator:	1 ?m
Repeatability:	0.00002"
Flatness:	0,000012"
Parallelism:	0,000024"
Measuring face:	Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:	ø10,8 mm
Measuring force:	5 - 10 N
Delivered:	Including box, workpiece rest
Mass:	740 g
