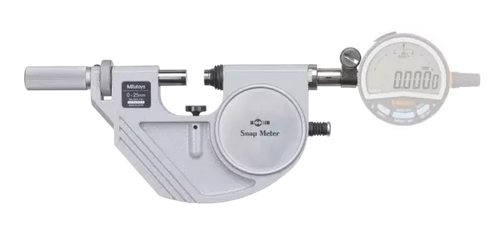

Snap Meter 523-151

Name: Snap Meter 523-151
Brand: Mitutoyo
SKU: 523-151
Price: 330.0 GBP
Availability: InStock

MitutoyoSKU: 523-151

All prices exclude VAT, which will be added at checkout.

Price:

£330.00 £486.00

Quantity:

This Snap Gauge designed to mount an indicator to suit the measurement application, and offers the following benefits:

It‘s ideal for rapidly inspecting workpieces, especially cylindrical, in batch or mass production situations, when you need an indication of where a measurement falls within the tolerance band.
You can set it with external length standards such as block gauges.
Easy-to-operate retracting button.

Digital/Analog:	Analog
Delivered:	Including box, workpiece rest, without indicator
Inch-Metric:	Inch
Range:	0 - 1 "
Anvil retracting stroke:	2 mm
Repeatability:	0.00002"
Flatness:	0,000012"
Parallelism:	0,000024"
Measuring face:	Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:	ø10,8 mm
Measuring force:	5 - 10 N
Mass:	710 g

Description
