Mitutoyo Digital 3-Point Internal Micrometer Set 0,8 - 2", Interchange. Head IP65, 468-978

MitutoyoSKU: 468-978
List price: £2,980.00 Offer price: £2,215.10 Excluding VAT

Optional Services

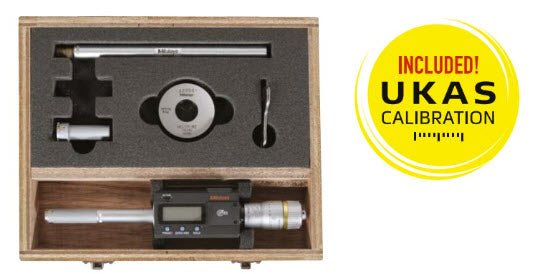

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE Connection Cable B with Data Button IP Micrometer Type 02AZD790B
Part number: 02AZD790B  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable B, Footswitch with Data Button IP Micrometer Type 02AZE140B
Part number: 02AZE140B  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 04AZB157 MOUNTING BRACKET
Part number: 04AZB157  → View product

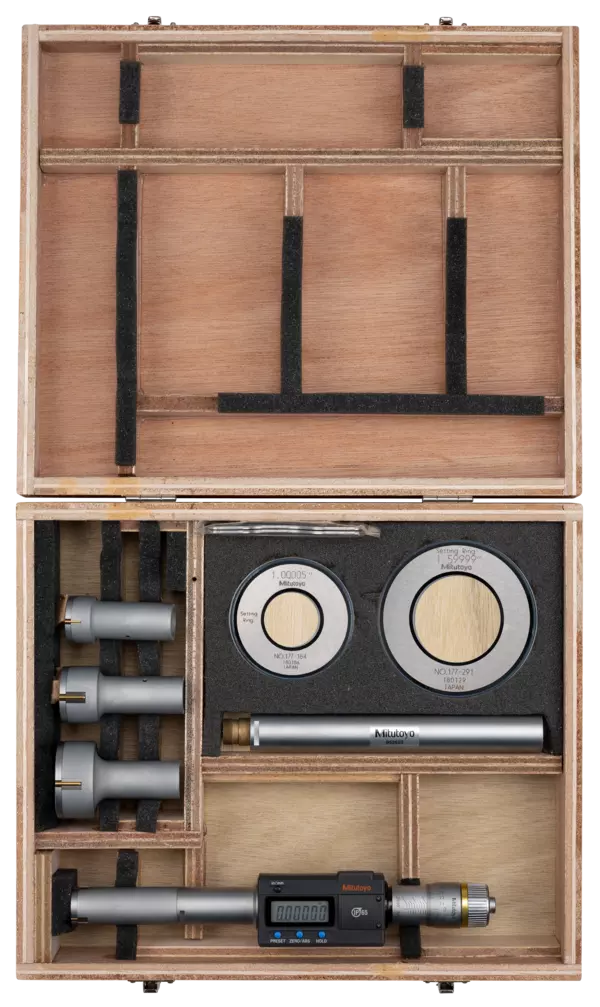

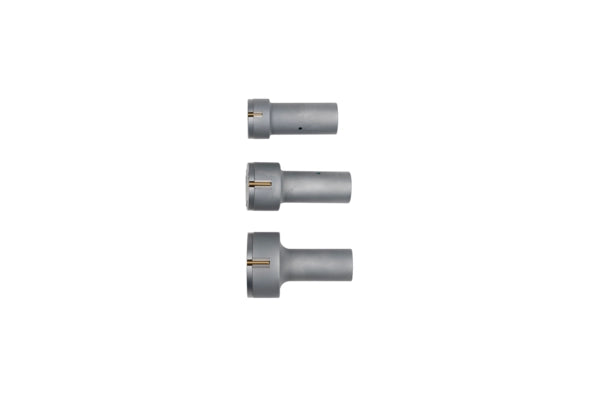

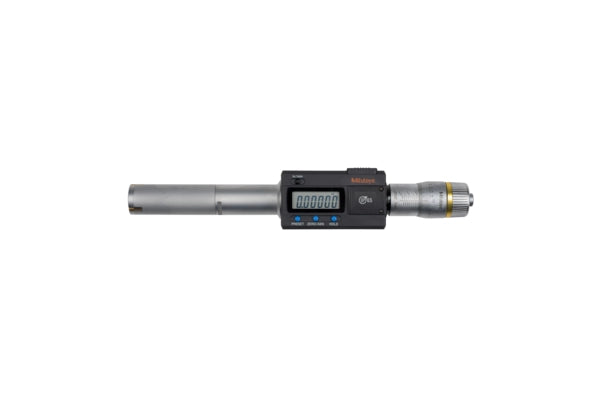

A water-resistant Mitutoyo bore gauge set comprising a digital/analogue display unit with interchangeable measuring heads, the appropriate setting rings, and an extension tube for deep-measuring applications. Suitable for measuring to the bottom of blind holes. Titanium-coated contact faces for enhanced durability. Digimatic data output.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
0,275 - 2 "
Digital step:
0,001 mm, 0,001 mm/0,00005" (models up to 4")
/ 0,001 mm/0,0001" (models over 5")
Individual ranges:
0.8-1", 1-1.2", 1.2-1.6", 1.6-2"
Display:
LCD, character height 7.5 mm
Measuring face:
Titanium coated tungsten carbide (6-12 mm) Titanium coated hardened steel (12-200 mm) Taper: tungsten carbide
Setting rings included:
ø1" (177-184)
ø1.6" (177-291)
Power supply:
1 battery SR-44
Battery life:
Approx. 1.2 years
Remarks:
150 mm extension
Delivered:

Including box, key, 1 battery, setting ring
extension rod, certificate of inspection (inside micrometer only)
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Delivered:
Including box, hex wrench, spanner (2 pcs.), screwdriver, 1 SR44 battery, setting rings (2 pcs.), extension rod, certificate of inspection
Data output:
Yes
Mass:
1170 g

No technical information is currently available.

No application information is currently available.
