Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10

Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10

MitutoyoSKU: 550-223-10
List price: £713.00 Offer price: £520.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

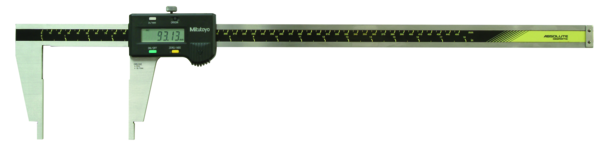

A Mitutoyo digital caliper. Hardened stainless steel construction and equipped with special nib-style jaws. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

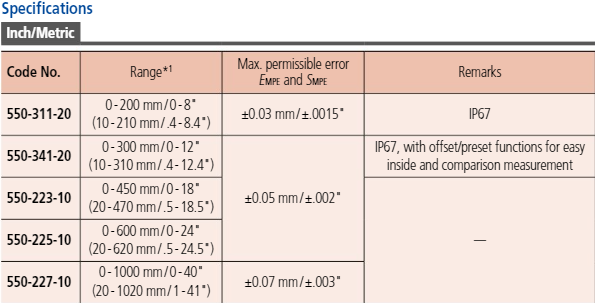

Specification
Delivered:
In a box with SR44 battery
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Inside measuring from:
0.504"/12.8 mm
Max. Permissible Error E MPE:
±0.002"
Max. Permissible Error S MPE:
±0.002"
Mass:
1110 g
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (200 mm) 11 mm (300 mm) 10 mm (>300 mm)
Delivered:
In a case, including 1 SR-44 battery
Battery life:
Approx. 5 years, 3,5 years (>300 mm)
ORIGIN (ABS-Zero):
Yes
ON/OFF:
Yes
Low voltage alarm:
Yes
Data output:
Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Caliper with Nib Style Jaws Inch/Metric, 0-18"/0-450mm 550-223-10 Click to open the PDF document
