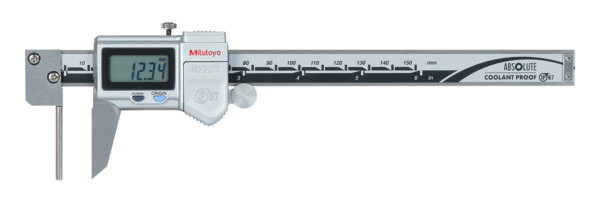

Mitutoyo Digital ABS Tube Thickness Caliper Inch/Metric, 0-150mm/0-6", IP67, Thumb Roller 573-761-20

MitutoyoSKU: 573-761-20

List price: Regular price£458.00 Offer price: Sale price£334.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Depth Base Attachment for Caliper, 75mm
Part number: 050083-10  → View product
Mitutoyo 516-122-10 Caliper Check Set Consisting 41.3mm, 131.4mm Gauge blocks and 20mm ring Gauge Grade 1
Part number: 516-122-10  → View product
Mitutoyo CERA Caliper Checker 20-300mm 515-555
Part number: 515-555  → View product
U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620
Part number: 264-620  → View product
U-WAVE Fit, Buzzer Type Wireless Transmitter for Caliper 264-621
Part number: 264-621  → View product
U-WAVE Fit Bluetooth, IP67 Type Wireless Transmitter for Caliper 264-624
Part number: 264-624  → View product
U-WAVE Fit Bluetooth, Buzzer Type Wireless Transmitter for Caliper 264-625
Part number: 264-625  → View product
Mitutoyo Data Hold Unit 959143
Part number: 959143  → View product
Mitutoyo Digimatic Cable, Straight, Data Button, 959149
Part number: 959149  → View product
Mitutoyo Digimatic Cable, Straight, Data Button, 959150
Part number: 959150  → View product
Connection Unit Standard Caliper U-WAVE fit, U-WAVE fit Bluetooth 02AZF300
Part number: 02AZF300  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380C
Part number: 06AFM380C  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product

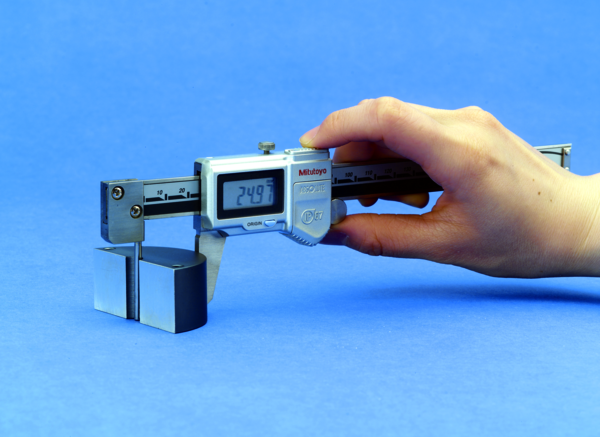

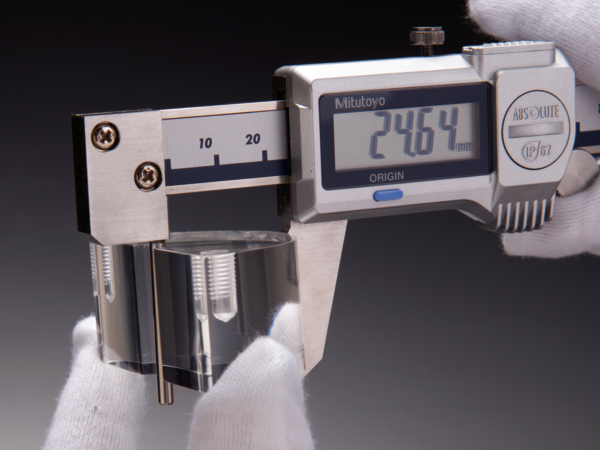

A Mitutoyo waterproof digital caliper suitable for use in the presence of coolant or cutting oil. Equipped with cylindrical anvil for tube wall-thickness type measurements. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
Delivered:
In a box with SR44 battery
Thumb roller:
Yes
Max. Permissible Error E MPE:
±0,002"
Max. response speed:
Unlimited
ORIGIN (ABS-Zero):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Data output:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
167 g
