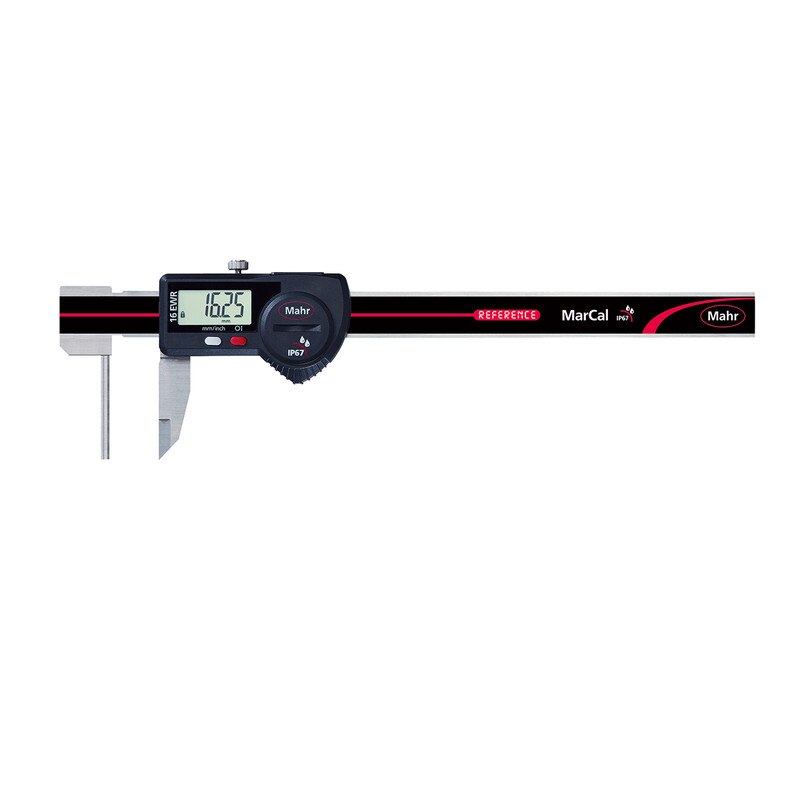

Mahr 4103081 16 EWR-RW Wall Thickness Digital Caliper; 6"-150mm

Roll over image to zoom in Click on image to zoom

Mahr 4103081 16 EWR-RW Wall Thickness Digital Caliper; 6"-150mm

Name: Mahr 4103081 16 EWR-RW Wall Thickness Digital Caliper; 6"-150mm
Brand: Mahr
SKU: 4103081
Price: 640.0 GBP
Availability: InStock

MahrSKU: 4103081

Price: £640.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£33.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives

Mitutoyo Digital ABS Tube Thickness Caliper Inch/Metric, 0-150mm/0-6", IP67, Thumb Roller 573-761Brand: MitutoyoSKU: 573-761 Price: £325.00 View this alternative →

Mitutoyo Digital ABS Tube Thickness Caliper Inch/Metric, 0-150mm/0-6", IP67, Thumb Roller 573-761-20Brand: MitutoyoSKU: 573-761-20 Price: £334.00 View this alternative →

Overview Technical Information Applications Videos & Documents

MarCal 16 EWR-RW

Art. no. 4103081

Digital special calipers MarCal 16 EWR-RW
Measuring range: 0 - 150 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case

High contrast digit display
Locking screw above
Lapped guideway
Slide and beam made of hardened stainless steel
Immediate measurements due to the Reference System
Raised guideway for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide

Measuring range 0 - 150

Measuring range 0 - 6"

Resolution mm/inch 0.01 / .0005"

Error limit (mm) 0.05 mm

Error limit inches .002"

Standard Factory standard

Battery type CR 2032 (3V Lithium)

Depth rod none

No application information is currently available.

Product Documents

Product Document 1 Mahr 4103081 16 EWR-RW Wall Thickness Digital Caliper; 6"-150mm Click to open the PDF document

Product Document 2 Mahr 4103081 16 EWR-RW Wall Thickness Digital Caliper; 6"-150mm Click to open the PDF document
