MitutoyoSKU: 543-311B-10
List price: £516.00 Offer price: £377.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Flat Straight Type 905338
Part number: 905338  → View product
Mitutoyo Digimatic Cable, Flat Straight Type 905409
Part number: 905409  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable F Flat Straight Type 02AZD790F
Part number: 02AZD790F  → View product
U-WAVE Connection Cable F, Footswitch Flat Straight Type 02AZE140F
Part number: 02AZE140F  → View product
U-WAVE-T Transmitter Mounting Plate Universal Type 02AZE200
Part number: 02AZE200  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380F
Part number: 06AFM380F  → View product
Mitutoyo 21EZA105 12.5mm Spindle Lifting Knob
Part number: 21EZA105  → View product
Mitutoyo 21EZA198 Plunger lifting Lever for for Digital Indicator, A-Type Dial Indicator Serie 2/3/4
Part number: 21EZA198  → View product
Mitutoyo 901312 Carbide Ball Point M2.5 x .45mm Length 7.3mm Radius 1.5mm
Part number: 901312  → View product
Mitutoyo CR2032 Battery 05SAA217
Part number: 05SAA217  → View product

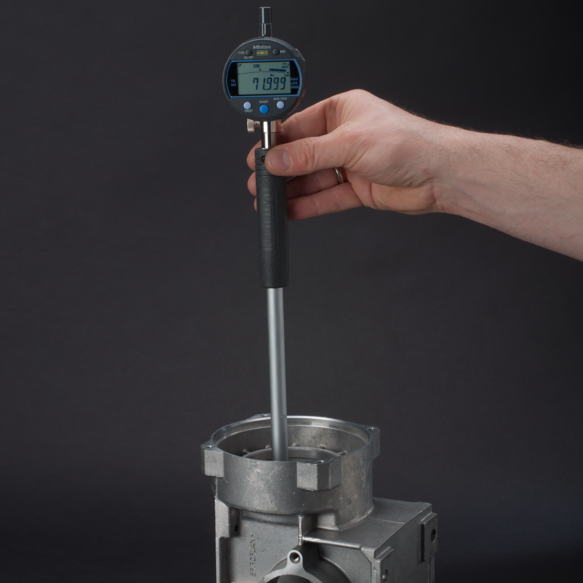

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

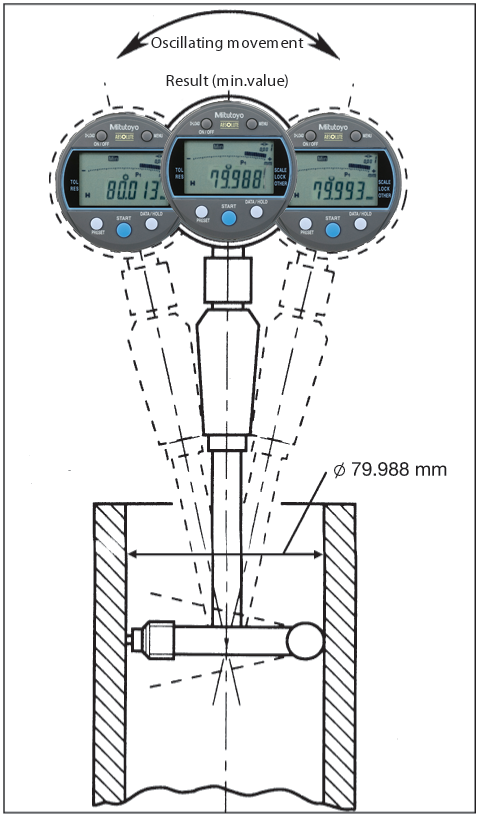

  • Minimum value holding function that allows you to easily detect a hole diameter
  • Analogue bar graph in the display (12 different scales switchable)
  • The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
  • GO/±NG tolerance judgement function
  • A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
  • Easy indicator setup via a setup menu
  • A USB interface box can be used to set up the indicator from PC via dedicated software
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including CR2032 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.0001"/0.003 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
?1.5 N
Protection:
IP42
Mass:
170 g
Type:
EN ISO Standard
Display:
LCD, character height 8 mm, 330° rotatable
Max. response speed:
Unlimited
Measurement frequency (MAX/MIN/RANGE):
Standard mode: 10 times/s
fast mode: 50 times/s
(plunger speed max. 50 µm/s for peak measurement)
Alarm:
Low voltage, ABS composition error, overflow error, setting error
Stem ?:
8 mm
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
1 battery CR2032
Battery life:
Standard mode: approx. 1 year
fast mode: approx. 4.5 month
DATA/HOLD:
Yes
PRESET 3x:
Yes
MIN Value Hold:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
Fast measurement mode:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
