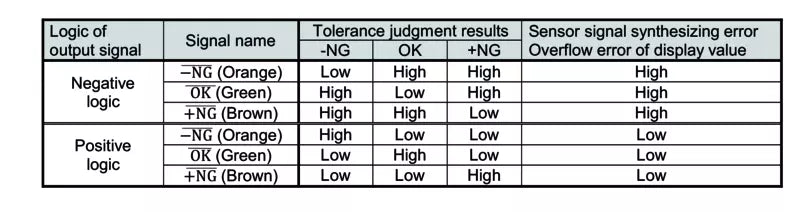

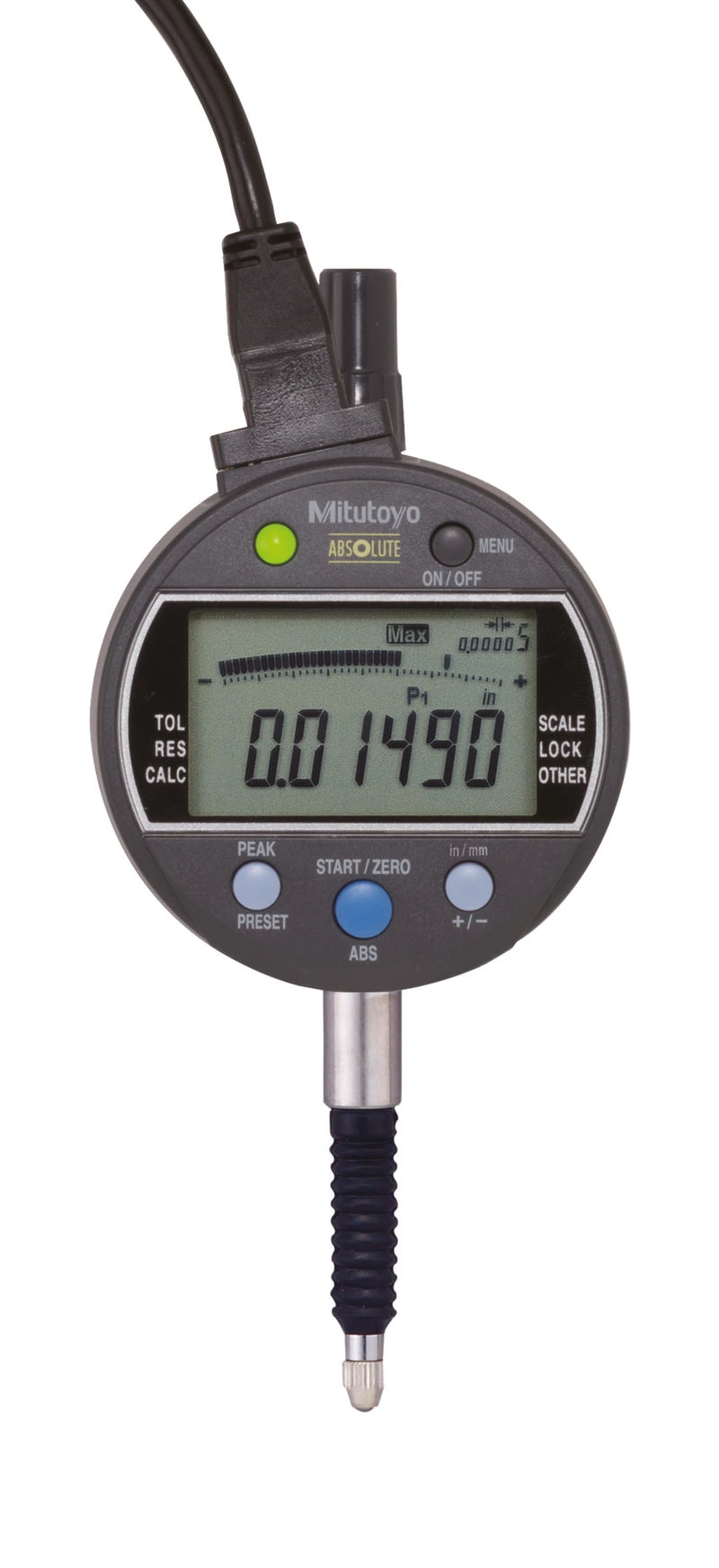

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.
- Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
- Measures MAX/MIN/RANGE (run-out value).
- Saves three different Preset and Tolerance settings.
- Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
- Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
- Analogue bar graph in the display (12 different scales switchable)

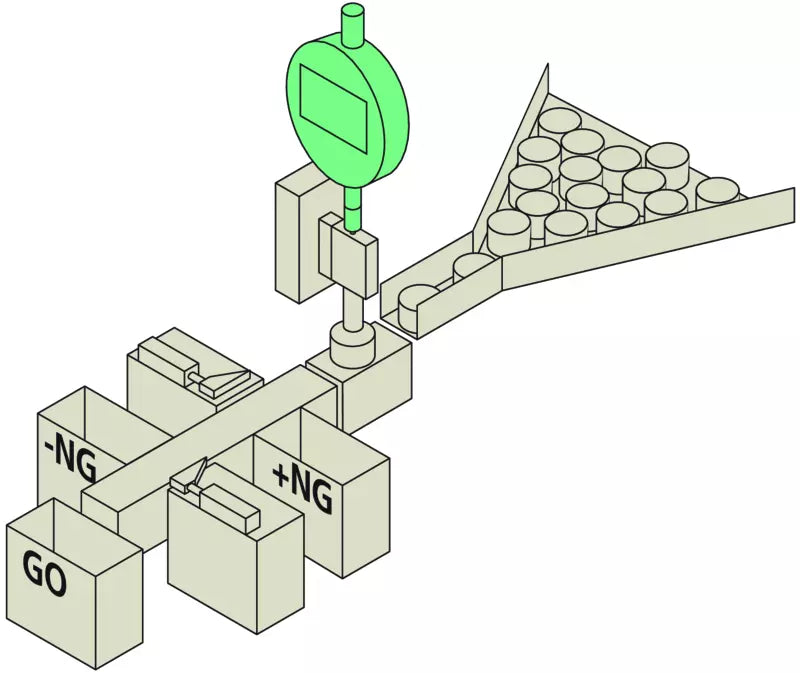

- GO/±NG tolerance judgment function
Indicator Features:
- Range: 0-12.7mm (0-0.5?)
- Resolution: 0.01/0.001mm (0.00005?)
- Accuracy: ± 0.003mm (0.00012?)
- Measuring Force: 2.5N or less
- Inch-mm conversion
- Digimatic data output
- MPN: 543-351B-10
- Brand: Mitutoyo
No technical information is currently available.
No application information is currently available.
