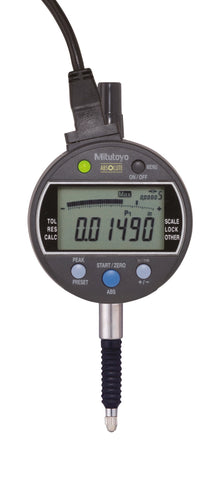

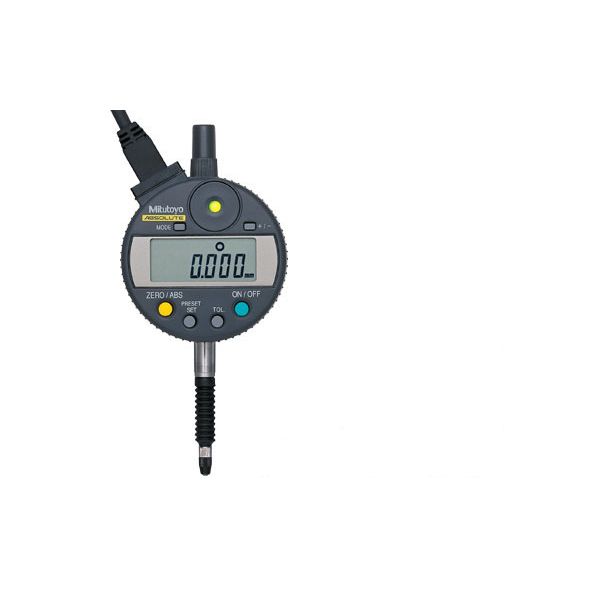

Mitutoyo 543-281B Constant signal input & open collector signal output Accuracy: .003mm Range:12.7mm Resolution:.001mm/.00005'' Signal cable:4m, Stem 8mm. Flat back

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-281B Constant signal input & open collector signal output Accuracy: .003mm Range:12.7mm Resolution:.001mm/.00005'' Signal cable:4m, Stem 8mm. Flat back

Name: Mitutoyo 543-281B Constant signal input & open collector signal output Accuracy: .003mm Range:12.7mm Resolution:.001mm/.00005'' Signal cable:4m, Stem 8mm. Flat back
Brand: Mitutoyo
SKU: 543-351B-10
Price: 492.0 GBP
Availability: InStock

MitutoyoSKU: 543-351B-10

All prices exclude VAT, which will be added at checkout.

Price:

£492.00 £656.00

Quantity:

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.

Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
Measures MAX/MIN/RANGE (run-out value).
Saves three different Preset and Tolerance settings.
Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
Analogue bar graph in the display (12 different scales switchable)
GO/±NG tolerance judgment function

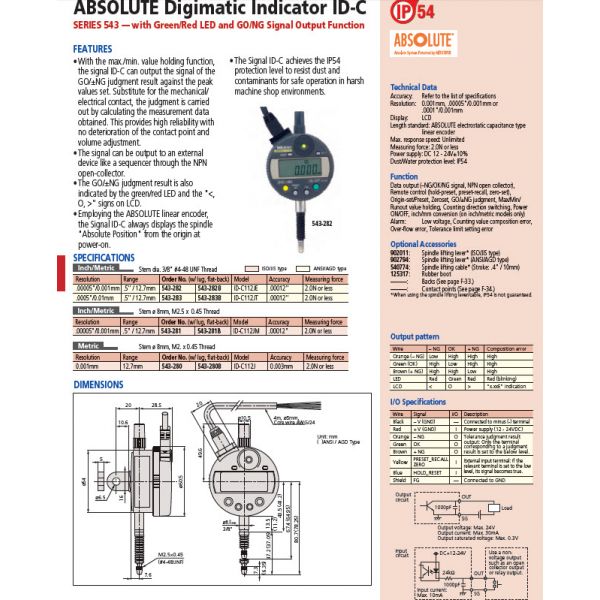

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	With signal cable 4 m. One end is fixed to the main unit. no connector is supplied for the other end.
Range:	0.5"/12.7 mm
Digital step:	.001mm/.00005"
Max. Permissible Error E MPE (Total Range):	±0.0001"/0.003 mm
H MPE (Hysteresis):	0.0001"/0.002 mm
R MPE (Repeatability):	0.0001"/0.002 mm
Measuring force MPL:	≤2.5 N
Protection:	IP54
Type:	EN ISO Standard
Measuring force:	≤2,5 N
Display:	LCD, character height 8 mm
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 100 times/s (plunger speed max. 0.1mm/s for peak measurement)
Alarm:	Low voltage, ABS composition error, overflow error, setting error
Stem ∅:	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	5 - 24 V DC / 100mA (max)
PRESET 3x:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Signal output: (+NG, OK, -NG):	Yes
Signal input: No-voltage input, (PRESET_RECALL/ZERO, HOLD_RESET):	Yes
ABS / INC (INC ZERO):	Yes
GO/±NG judgement via LED:	Yes
Calculation function (with formula):	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder
Mass:	285 g

Product Information
Part Number	543-351B-10
Measuring Range	12.7mm/0.5"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
IP Rating	IP30
Measuring Force	≤2.5N
Repeatability	.002mm/.0001"
Hysteresis	.002mm/.0001"
Stem	8mm
Power Supply	5-24VDC
Resolution/Capacity	.001mm/.00005"
