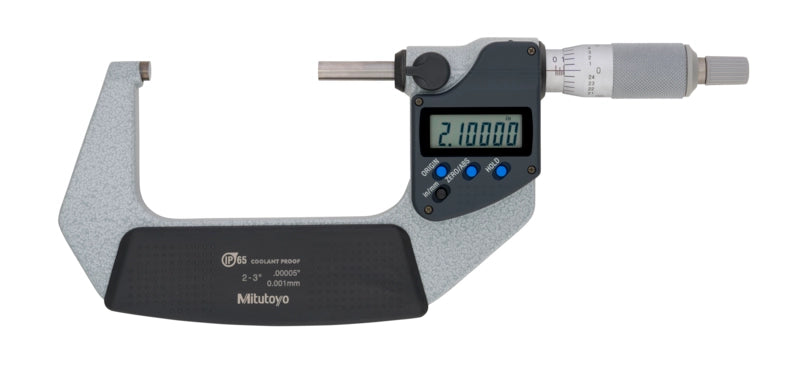

Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", without Output Ratchet Stop 293-342-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", without Output Ratchet Stop 293-342-30

Name: Mitutoyo Digital Micrometer IP65, Inch/Metric 50-75mm/2-3", without Output Ratchet Stop 293-342-30
Brand: Mitutoyo
SKU: 293-342-30
Price: 227.5 GBP
Availability: InStock

MitutoyoSKU: 293-342-30

All prices exclude VAT, which will be added at checkout.

Price:

£227.50 £325.00

Quantity:

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	2 - 3 "/50-75mm
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0001"
Flatness:	0,000012"
Parallelism:	0,00008"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ≤4" 1.2 years for >4"
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	470 g

Product Information
Part Number	293-342-30
Measuring Range	50-75mm/2-3"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	No
IP Rating	IP65
Measuring Force	5-10N
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	0.0003mm/ 0.000012"
Parallelism	.001mm/.00004"
Calibration Code	Cal1B1
Resolution/Capacity	.001mm/.00005"
