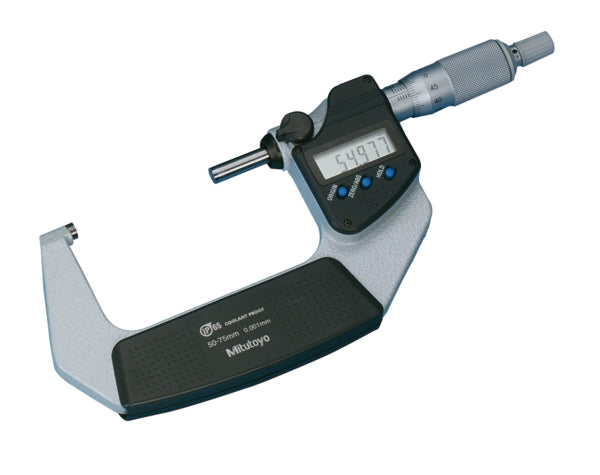

Mitutoyo Digital Micrometer IP65,Metric 50-75mm with Output Ratchet stop 293-232-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Micrometer IP65,Metric 50-75mm with Output Ratchet stop 293-232-30

Name: Mitutoyo Digital Micrometer IP65,Metric 50-75mm with Output Ratchet stop 293-232-30
Brand: Mitutoyo
SKU: 293-232-30
Price: 248.5 GBP
Availability: InStock

MitutoyoSKU: 293-232-30

All prices exclude VAT, which will be added at checkout.

Price:

£248.50 £355.00

Quantity:

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, SR44 battery, setting standard
Inch-Metric:	Metric
Range:	50 - 75 mm
Digital step:	0.001 mm
Max. Permissible Error J MPE:	±2 µm
Flatness:	0.3 µm
Parallelism:	2 µm
Data output:	Yes
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years for models ≤100 mm 1.2 years for >100 mm
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET (over 100 mm):	Yes
Mass:	470 g

Product Information
Part Number	293-232-30
Measuring Range	50-75mm
Resolution	.001mm
Unit of Measurement	Metric
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Measuring Force	5-10N
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	.0003mm
Parallelism	.001mm
Calibration Code	Cal1B1
Resolution/Capacity	.001mm
