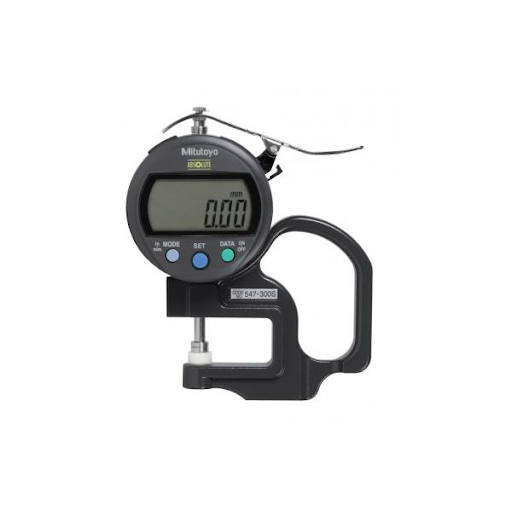

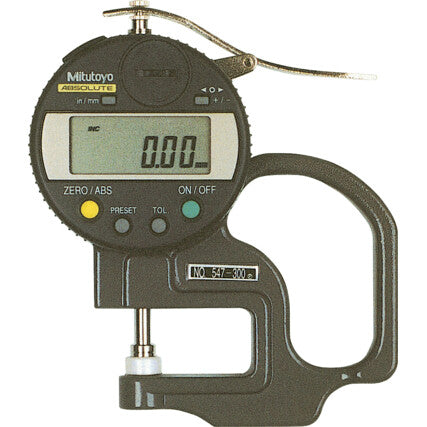

MitutoyoSKU: 547-300S
List price: £482.00 Offer price: £352.00 Excluding VAT
A Mitutoyo digital-indicator based instrument designed for quick and efficient measurement of small dimensions. Ideally suited for measuring the thickness of paper, film, wire, sheet metal and similar materials. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.
Specification
Inch-Metric:
Inch/Metric
Functions:
With indicator ID-C No. 543-402BS (ANSI/AGD type)
Digital step:
0,0005"/0,01 mm
Accuracy:
±20 µm
Parallelism:
0,0005"
Indicator No.:
543-400BS (ID-C)
Max. measuring depth:
30 mm
Measuring force:
? 1.5 N
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Contact point:
Thread # 4-48UNF
Power supply:
1 battery SR-44
Battery life:
approx. 7000 hours
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
ABS / INC (INC ZERO):
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Digimatic S1 Bidirectional interface:
Yes
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Analog bar resolution switchable:
Yes
Customizing keys:
Yes
Inch/Metric switchable:
Yes
Calibration warning function:
Yes
Digital step switchable:
Yes
Mass:
255 g

No technical information is currently available.

No application information is currently available.
