MitutoyoSKU: 547-300A
Price:
£352.00 £482.00

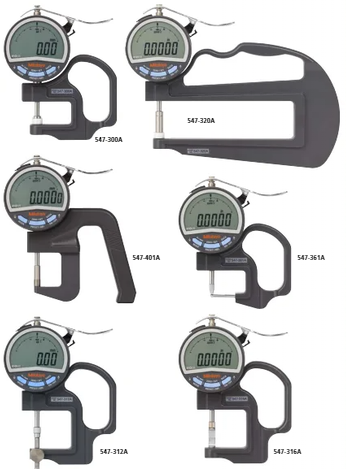

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
  • Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
With indicator ID-C No.543.0-712.0BS(ASME/ANSI Type)
Delivered:
In a box with CR2023 battery, battery lid opener, spindle lifting lever 21AZB149
Range:
0 - 0,4 "
Type:
Ceramic disc contact points
Digital step:
0,0005"/0,01 mm
Accuracy:
±20 µm
Parallelism:
0,0005"/ 0,01 mm
Protection:
IP42
Indicator No.:
543-712-10BS
Max. measuring depth:
30 mm
Measuring force:
≤ 1.5 N
Display:
LCD, character height 11 mm
Alarm:
Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:
1 battery CR2032 (3V)
Battery life:
Continuous use: approx. 2700h
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
ABS / INC (INC ZERO):
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Digimatic S1 Bidirectional interface:
Yes
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Analog bar resolution switchable:
Yes
Customizing keys:
Yes
Inch/Metric switchable:
Yes
Calibration warning function:
Yes
Digital step switchable:
No
Digital Scale:
Electrostatic capacitance type absolute linear encoder
Mass:
245 g
