Mitutoyo Disc Micrometer, Hardened Steel Disks 0-1", Disk=20mm 123-125

MitutoyoSKU: 123-125
List price: £244.00 Offer price: £178.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
Micrometer Stand for Micrometer 300-1000mm/12-40" 156-103
Part number: 156-103  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product

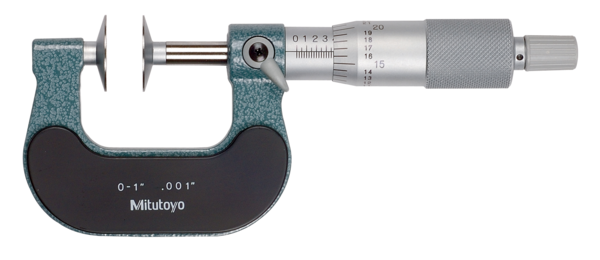

A Mitutoyo non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Inch
Range:
0 - 1 "
Graduation:
0,001"
Max.
Permissible Error
J MPE:
±0,0002"
Flatness:
0,00004"
Parallelism:
0,00016"
Measuring face:
Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Measurable module:
0.5 - 6 mm
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
200 g

No technical information is currently available.

No application information is currently available.
