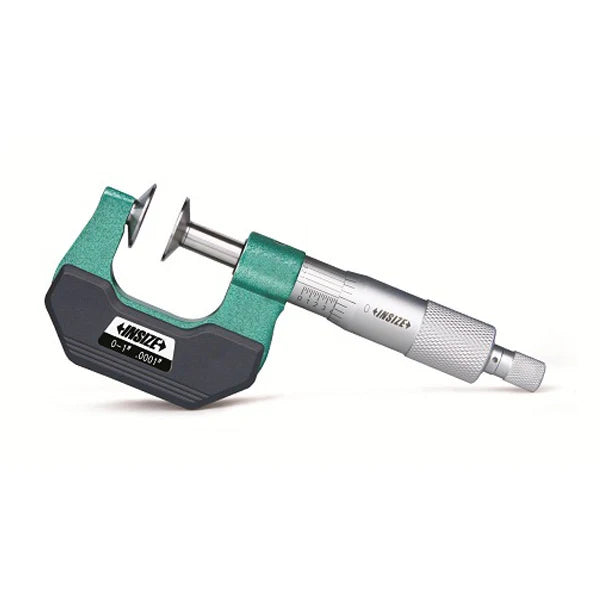

INSIZE Metric Non-Rotating Spindle Disk Micrometers Product Code: 3294-1, 0-1"x .0001"
Roll over image to zoom in Click on image to zoom
INSIZE Metric Non-Rotating Spindle Disk Micrometers Product Code: 3294-1, 0-1"x .0001"

INSIZE Metric Non-Rotating Spindle Disk Micrometers Product Code: 3294-1, 0-1"x .0001"

MitutoyoSKU: 3294-1
List price: £212.00 Offer price: £165.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Insize non-digital micrometer provided with disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner
Inch-Metric:
Inch
Range:
0 - 1 "
Graduation:
0,0001"
Max.
Permissible Error
J MPE:
±0,0002"
Flatness:
0,00004"
Parallelism:
0,00016"
Measuring face:
Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Measurable module:
0.5 - 6 mm
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
200 g

No technical information is currently available.

No application information is currently available.
